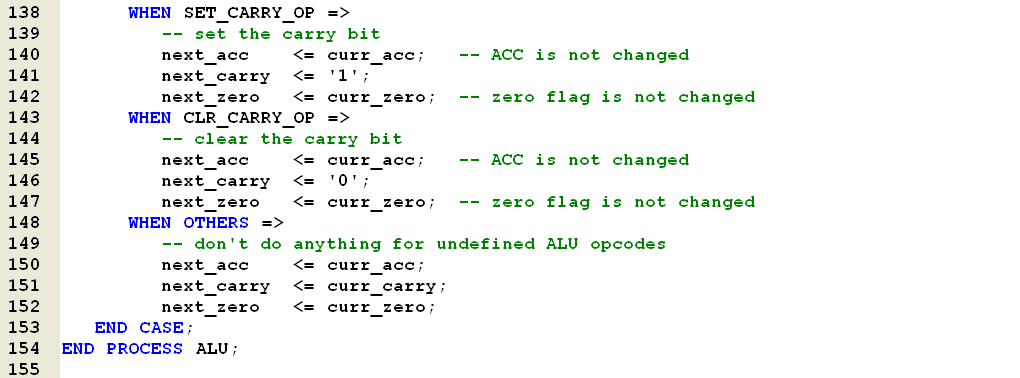

The source codes can be downloaded here: Gnome.vhd, Memory.vhd, Muxdisplay_ver3b.vhd

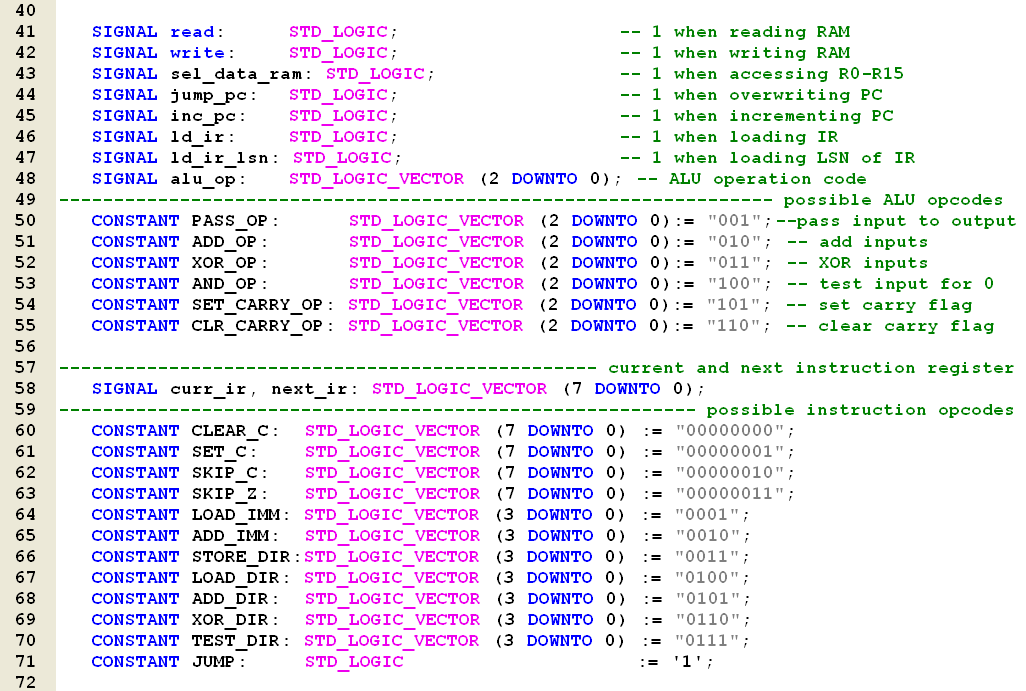

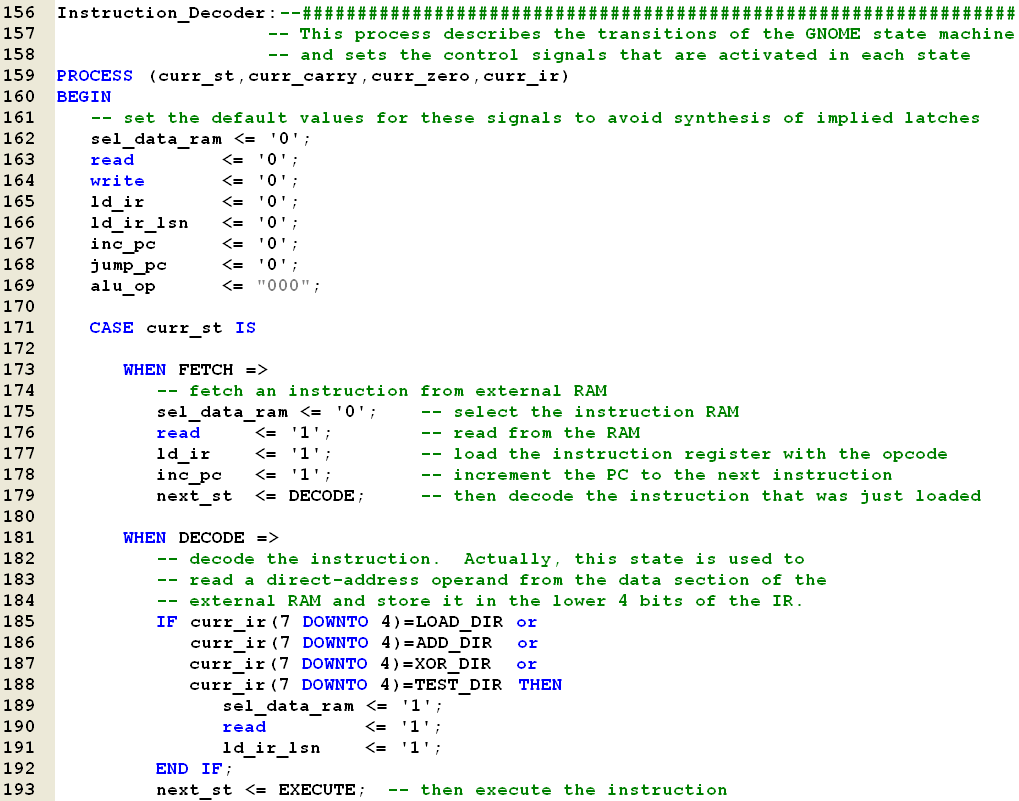

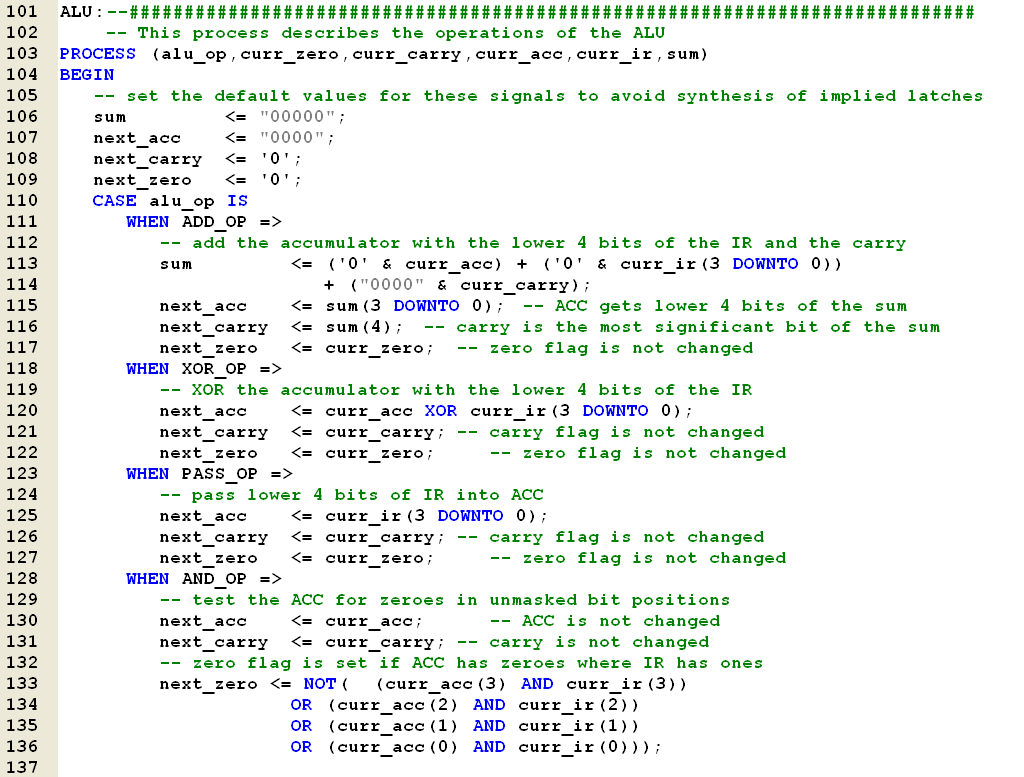

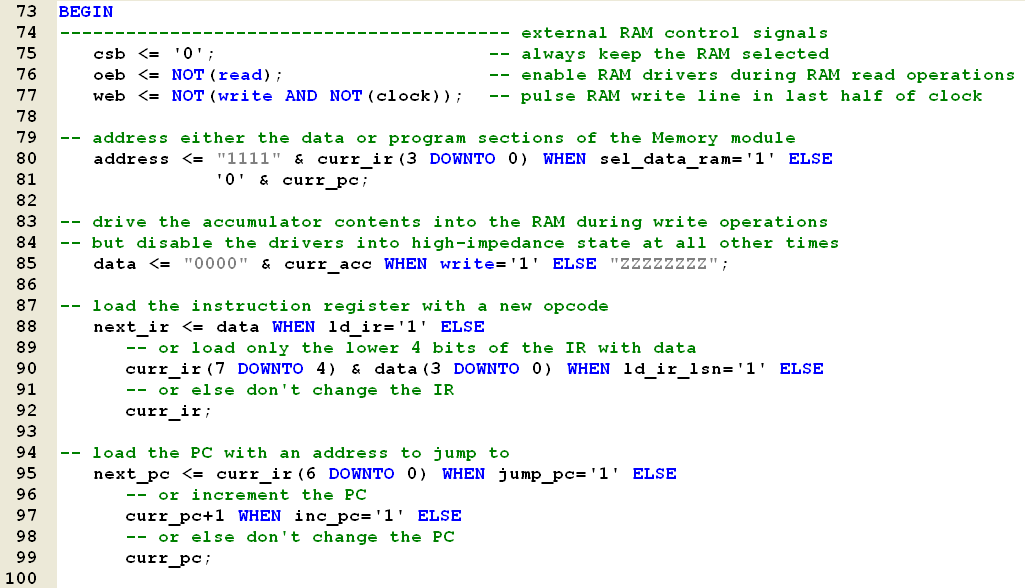

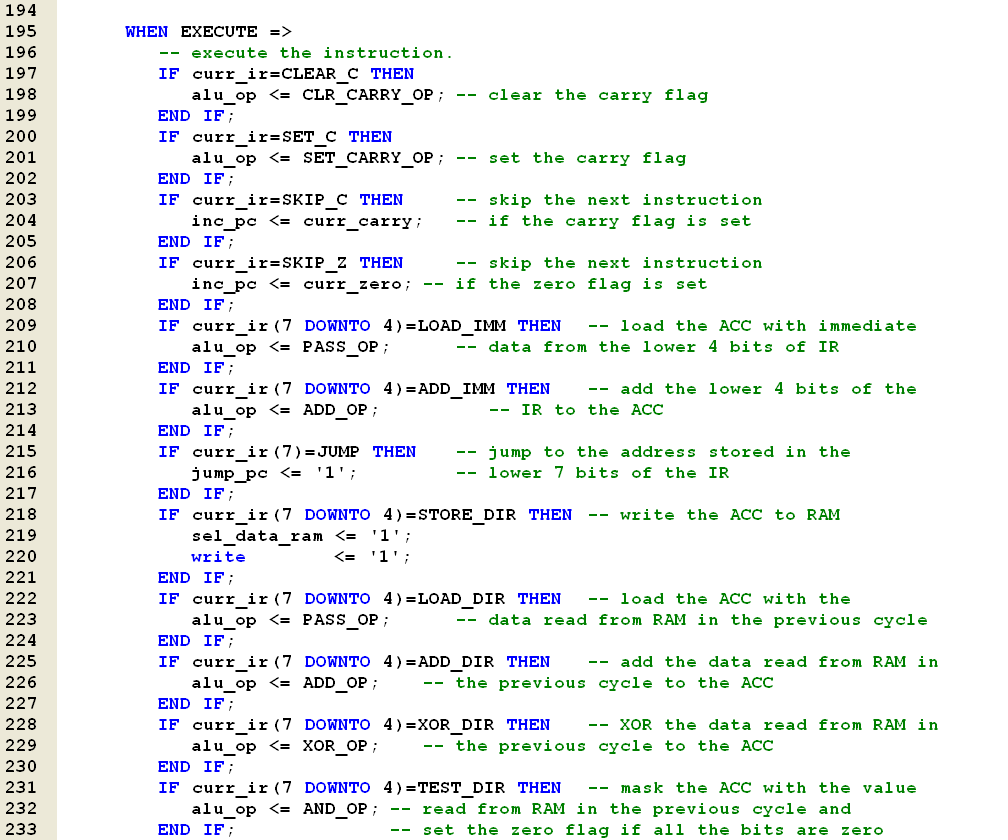

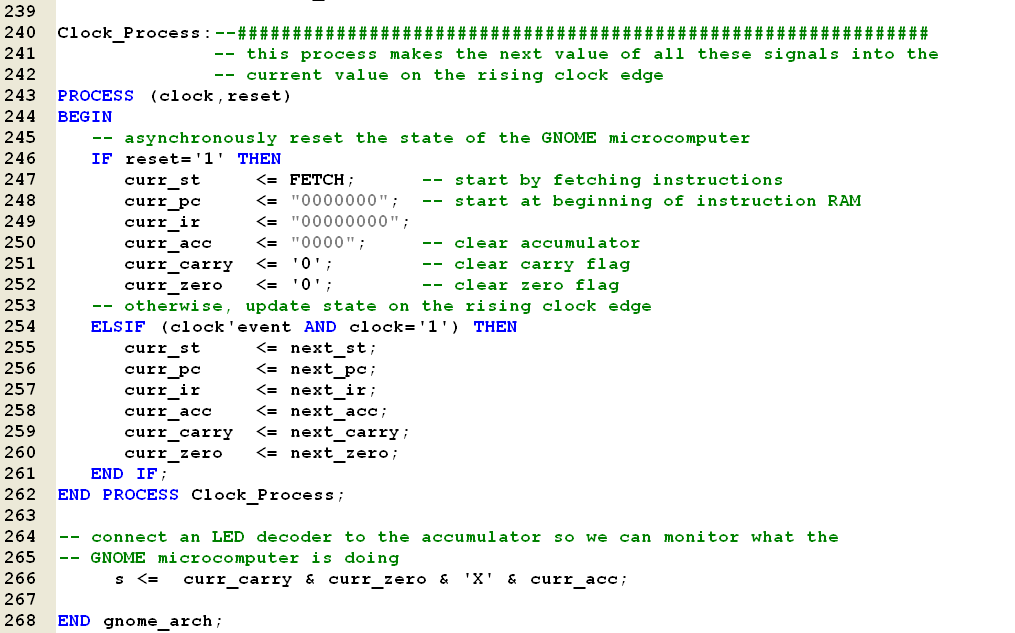

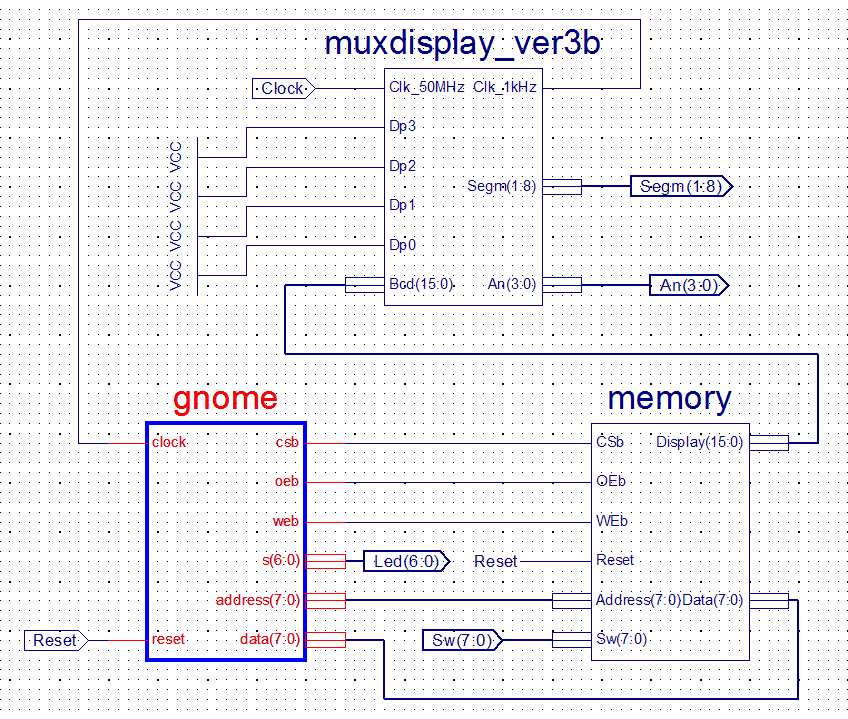

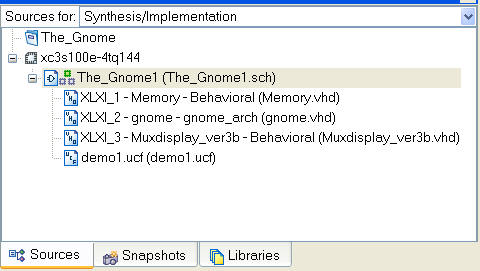

The Schematic - remember to Create Schematic symbol for each VHDL-module: The_Gnome1.sch

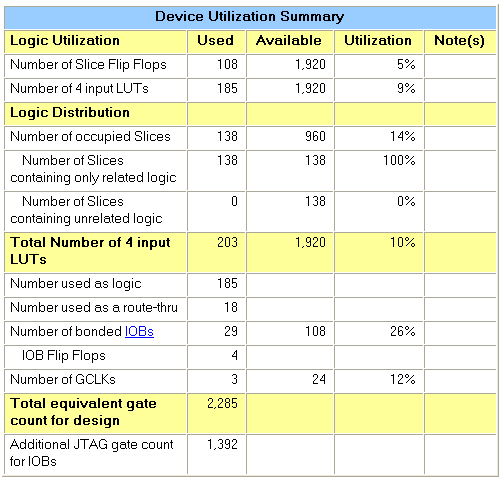

The User Constrain File for implementation at the BASYS kit: Demo1.ucf
