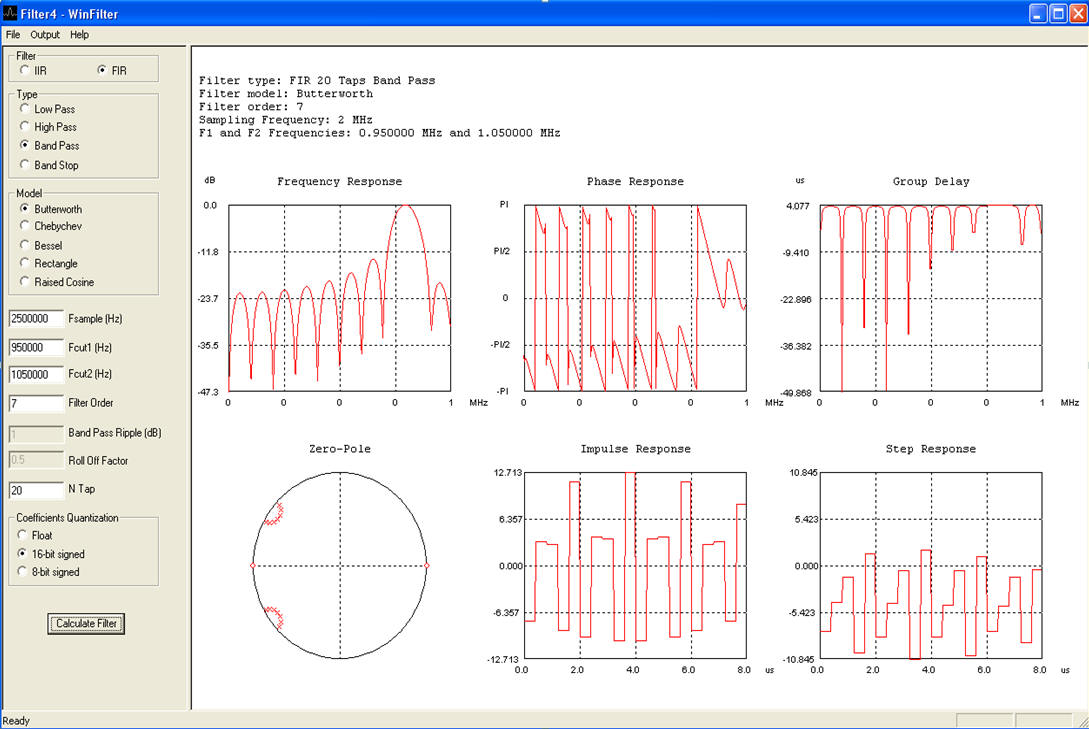

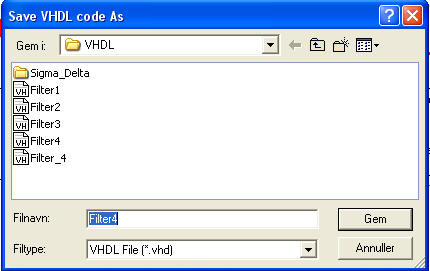

Lots of programs for filter design can be found at the net and will be part of programs like Matlab etc. I found this nice program which also can produce VHDL code for the wanted filter: - Visit and download WinFilter from this site.

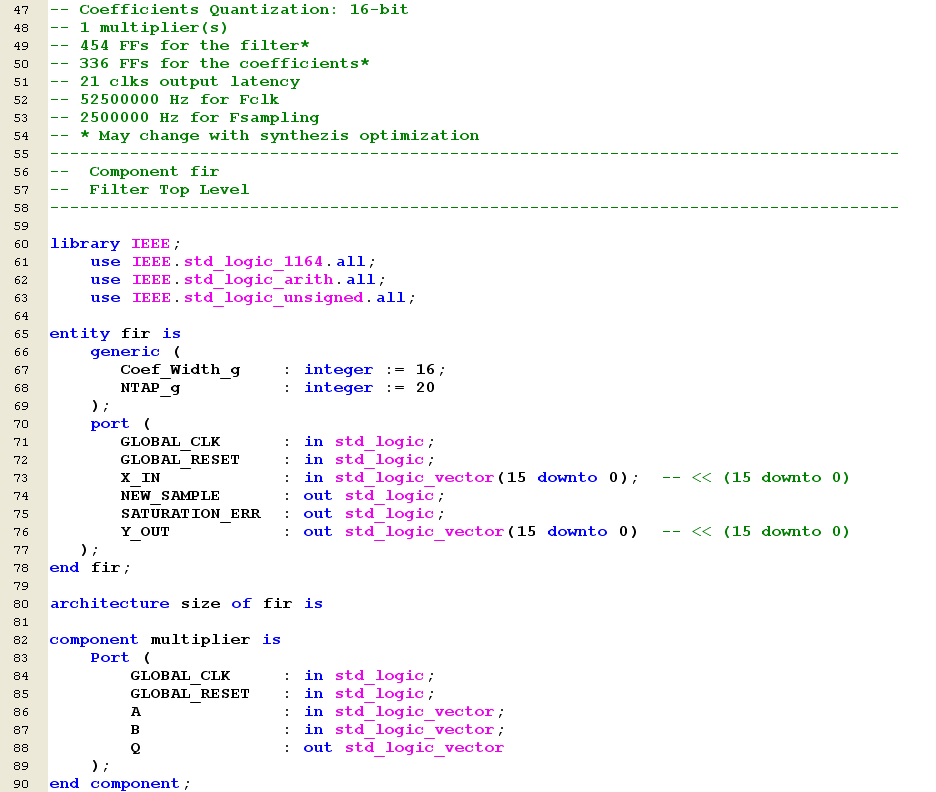

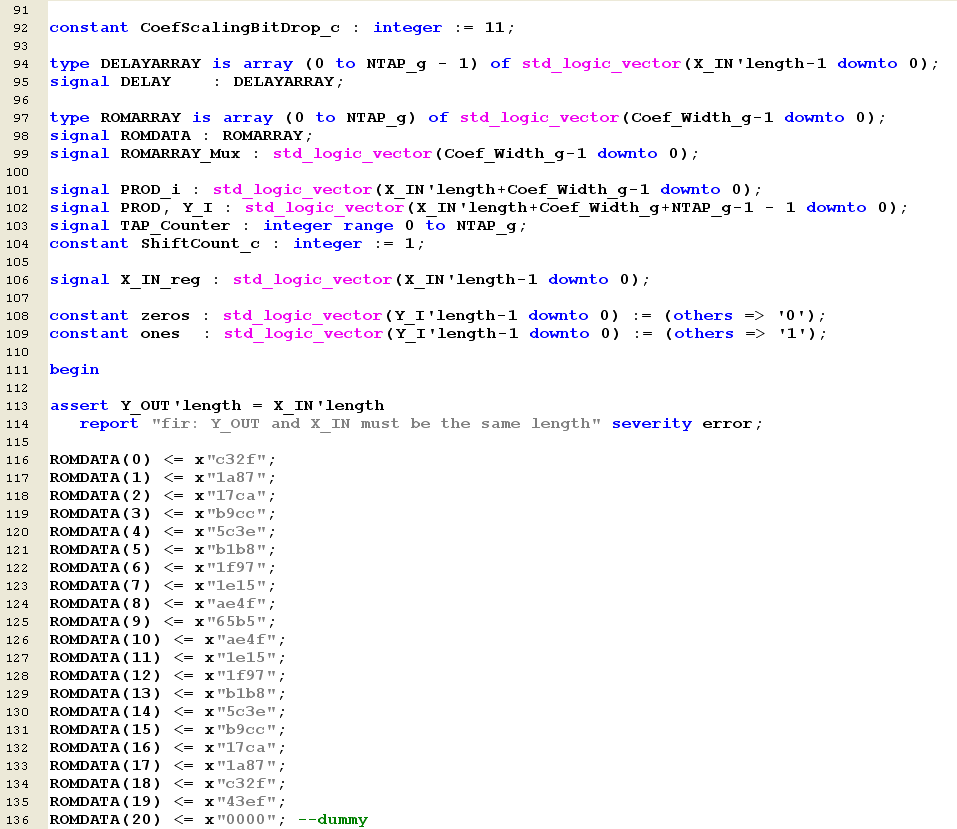

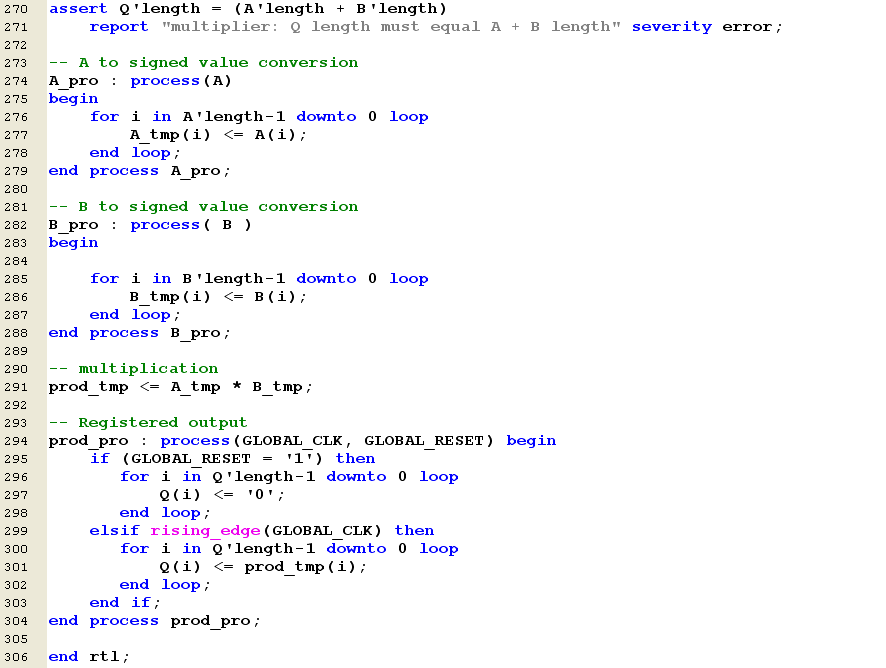

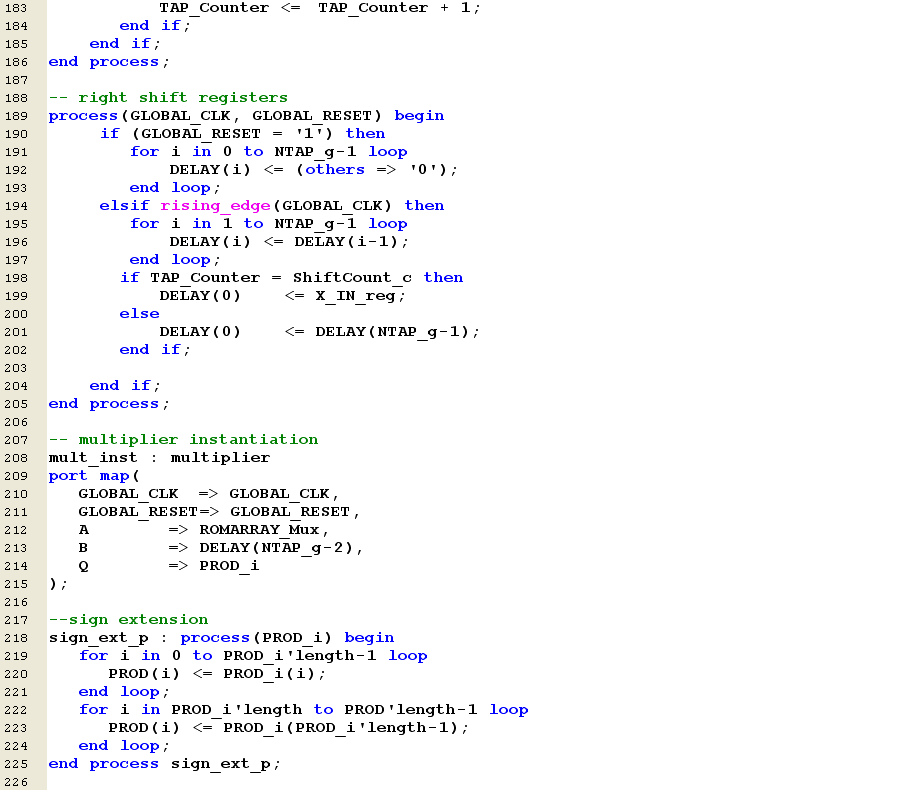

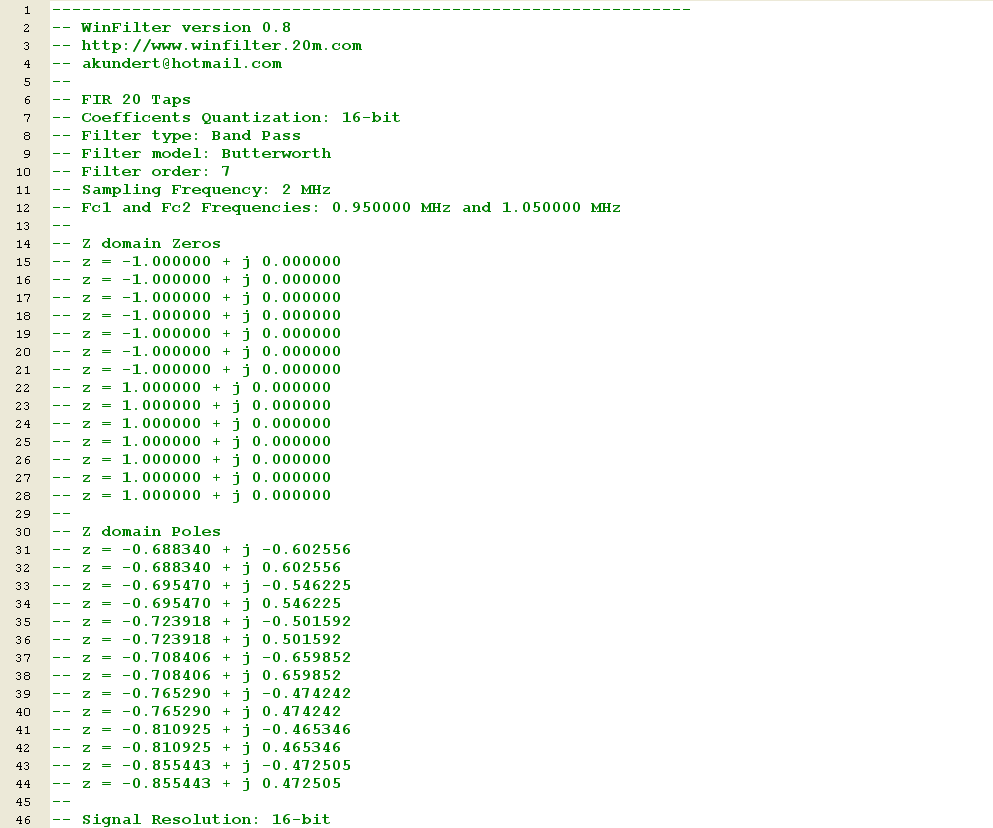

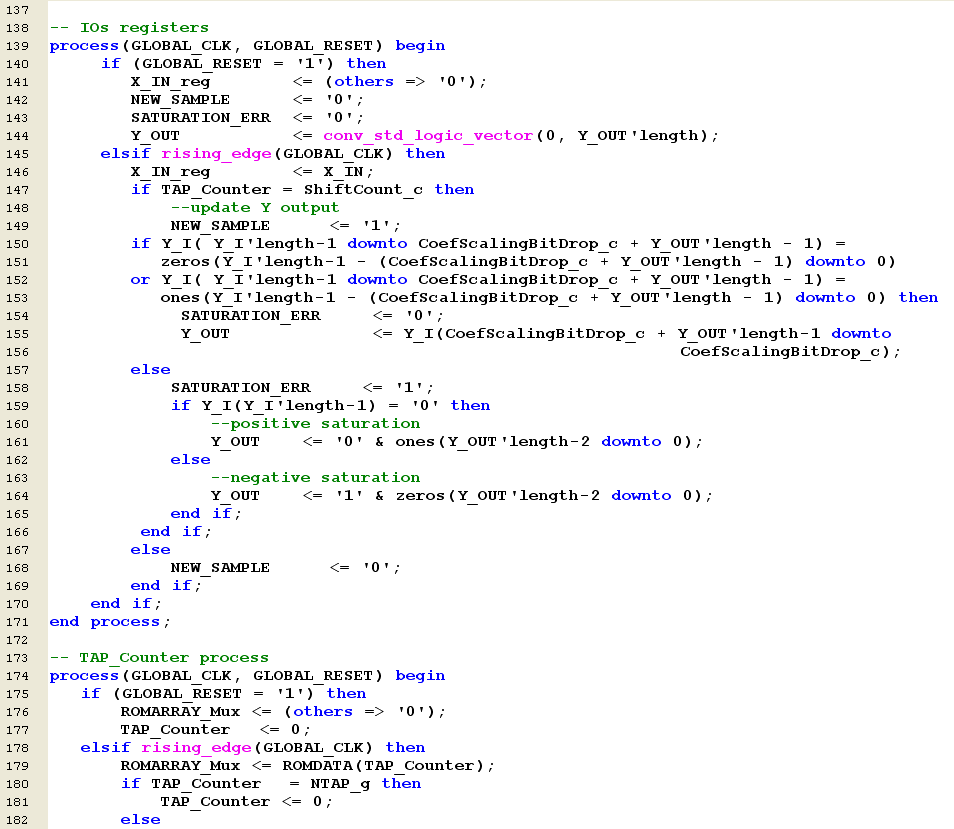

The source code generated by WinFilter Filter_4.vhd

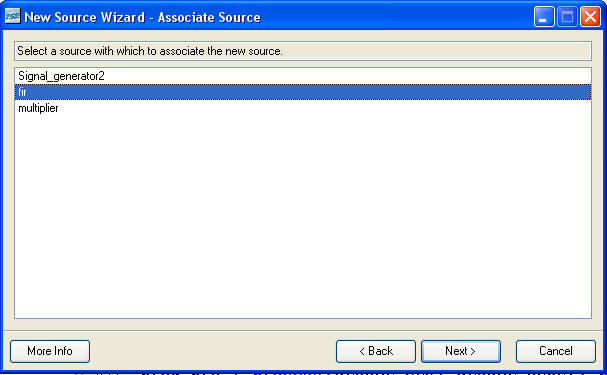

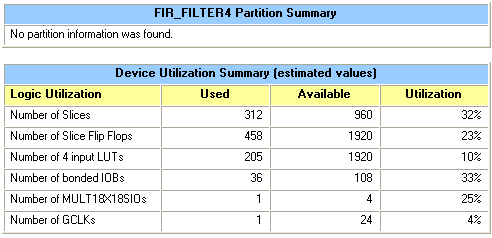

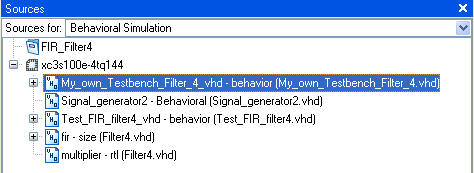

The project below - packed (ISE 9.2i) FIR_Filter4.zip
More to be found below at this page:

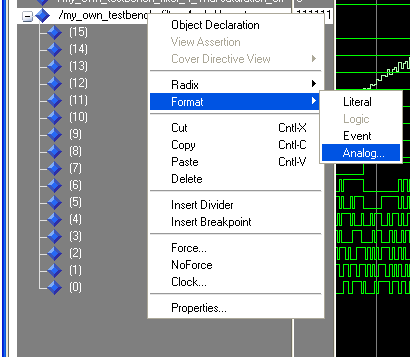

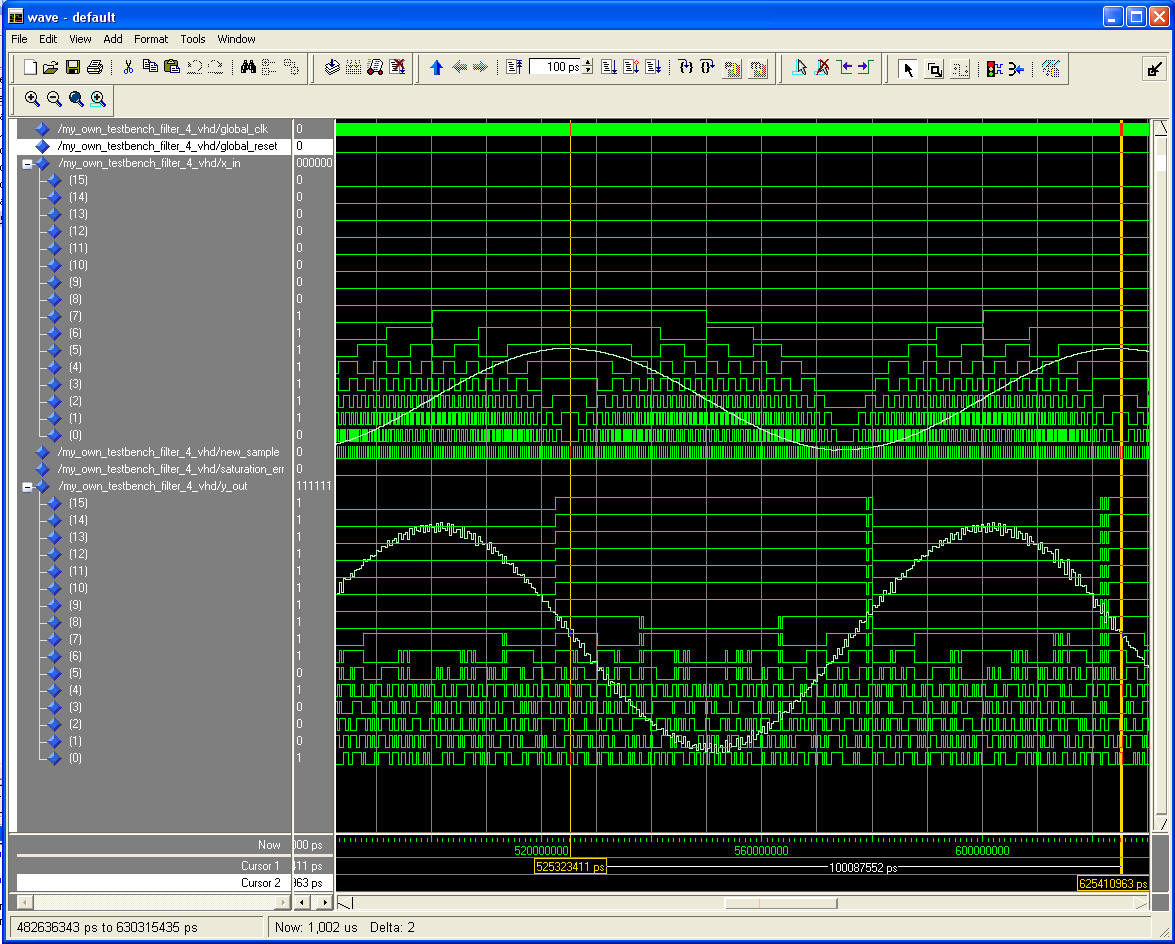

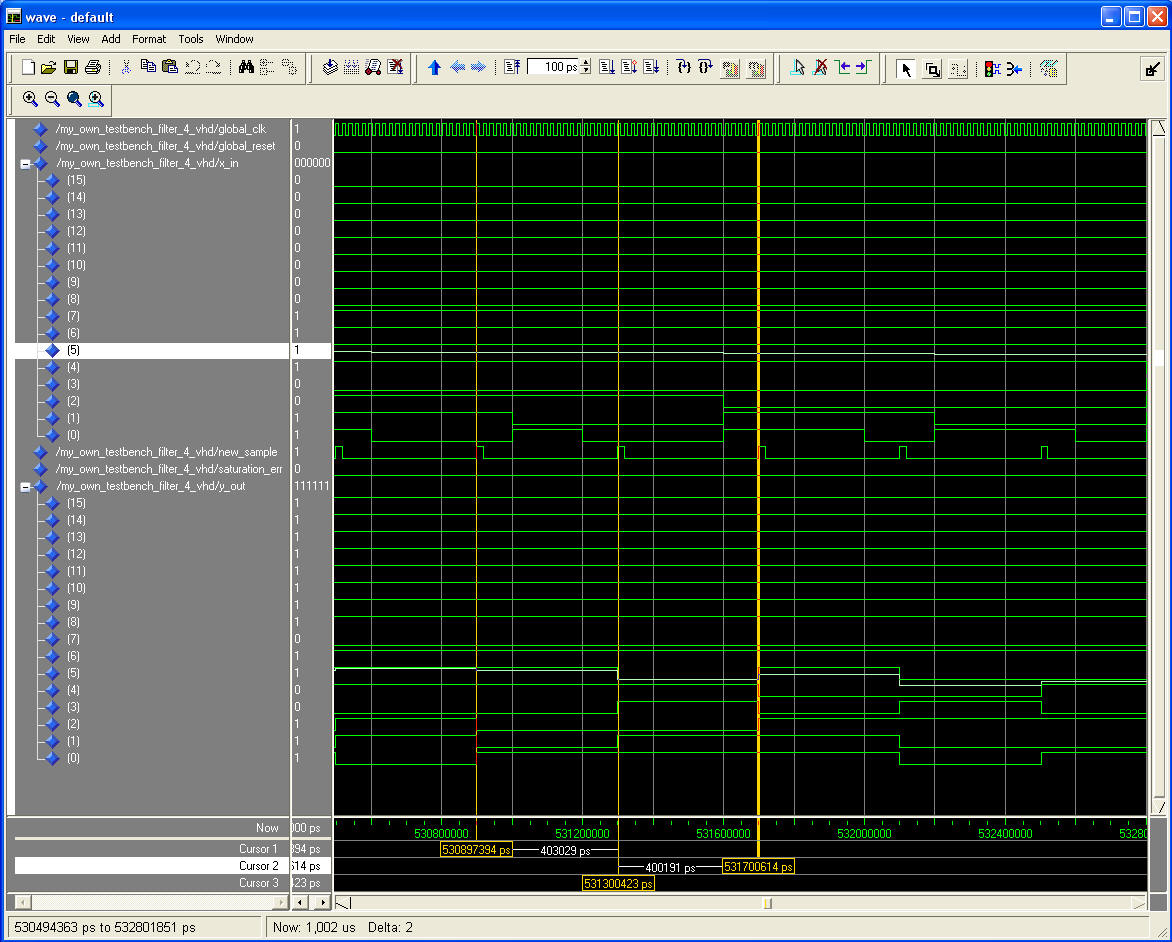

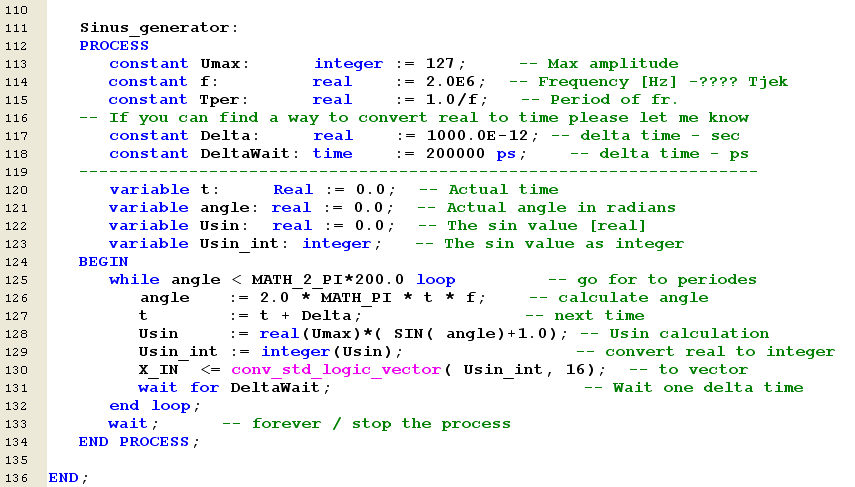

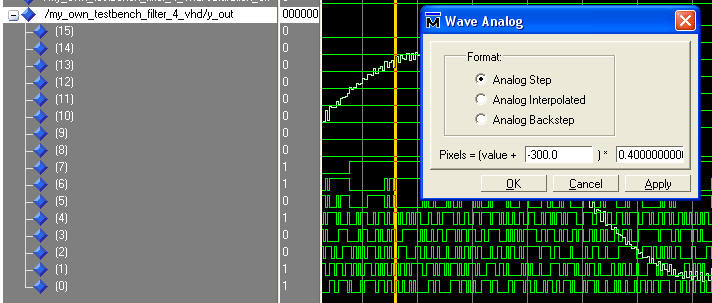

How to make a testbench with an analogue signal

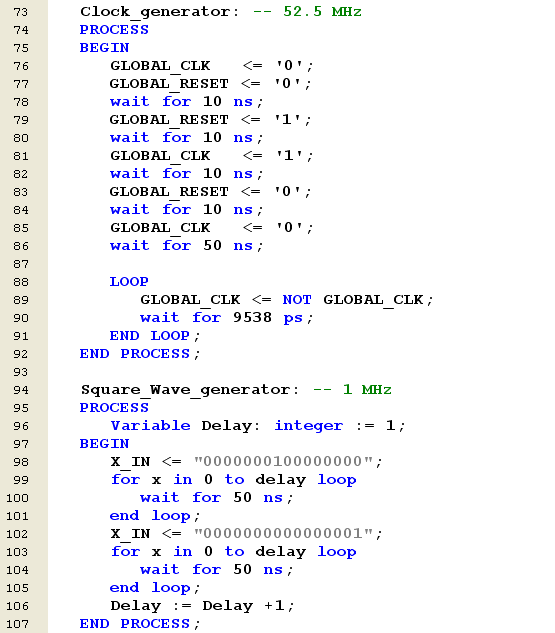

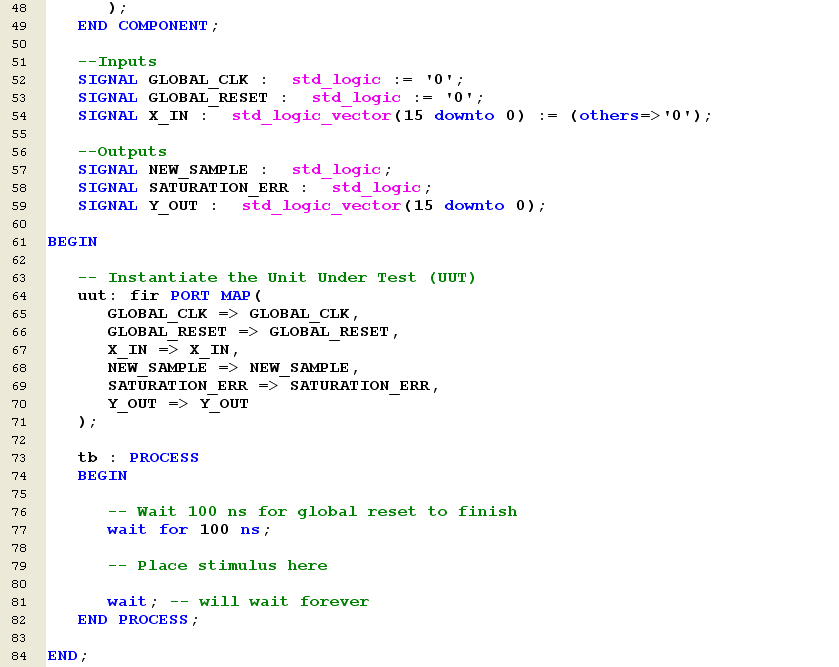

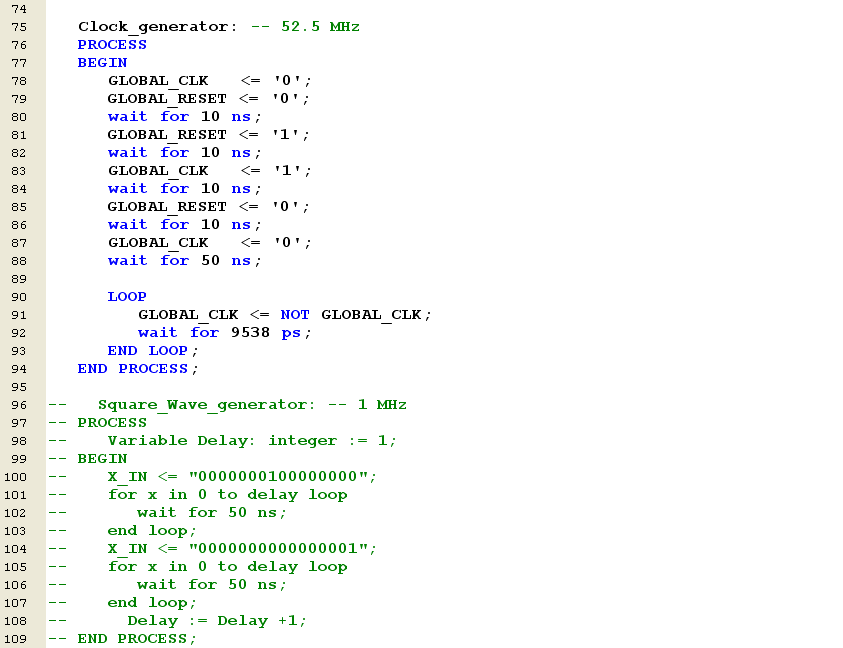

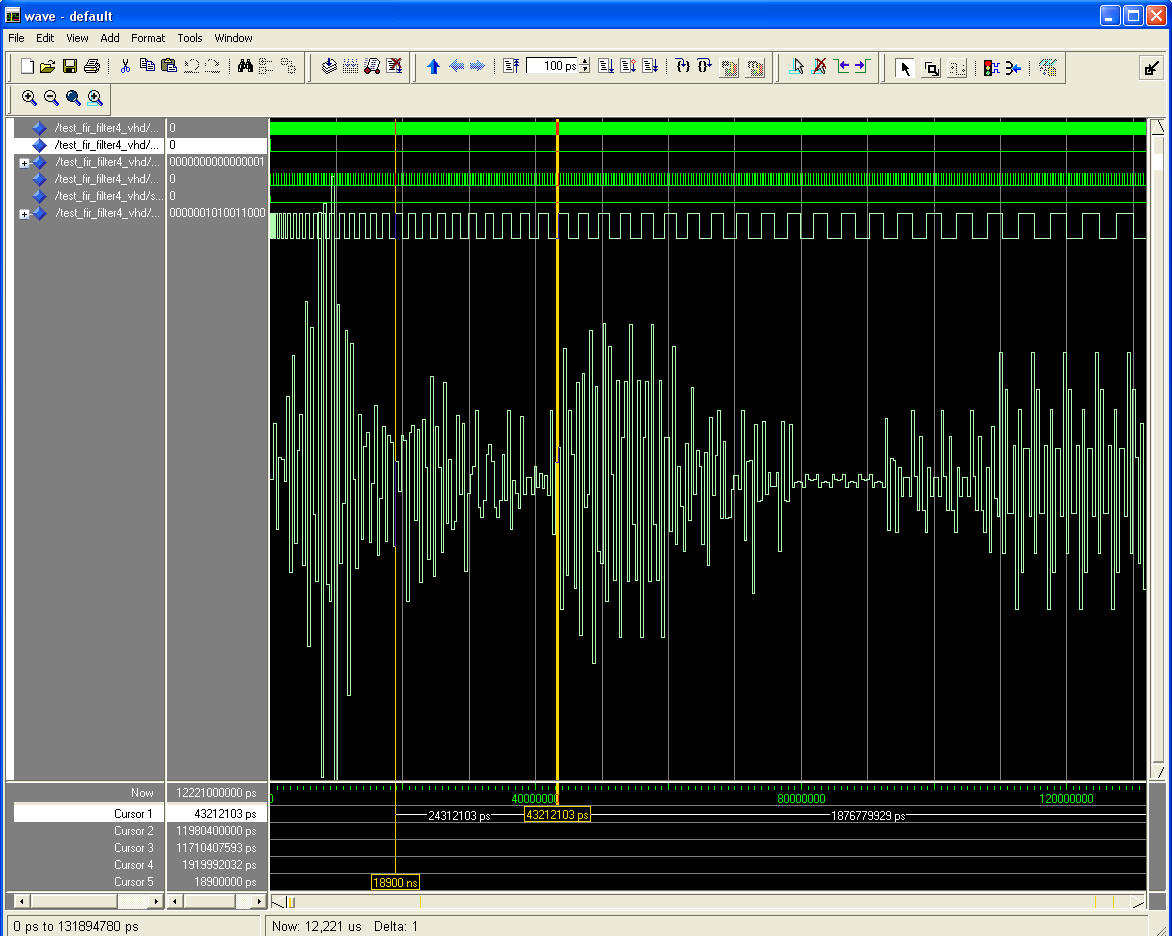

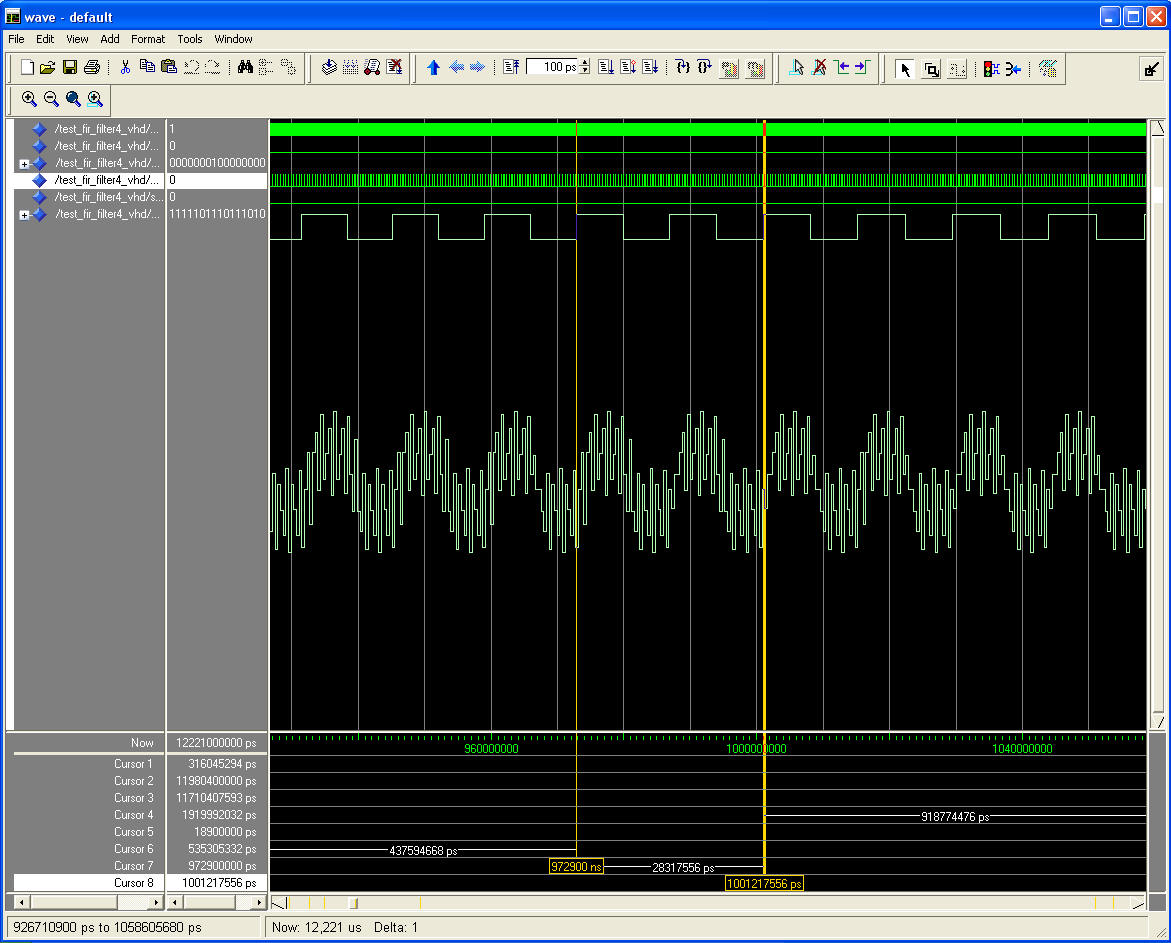

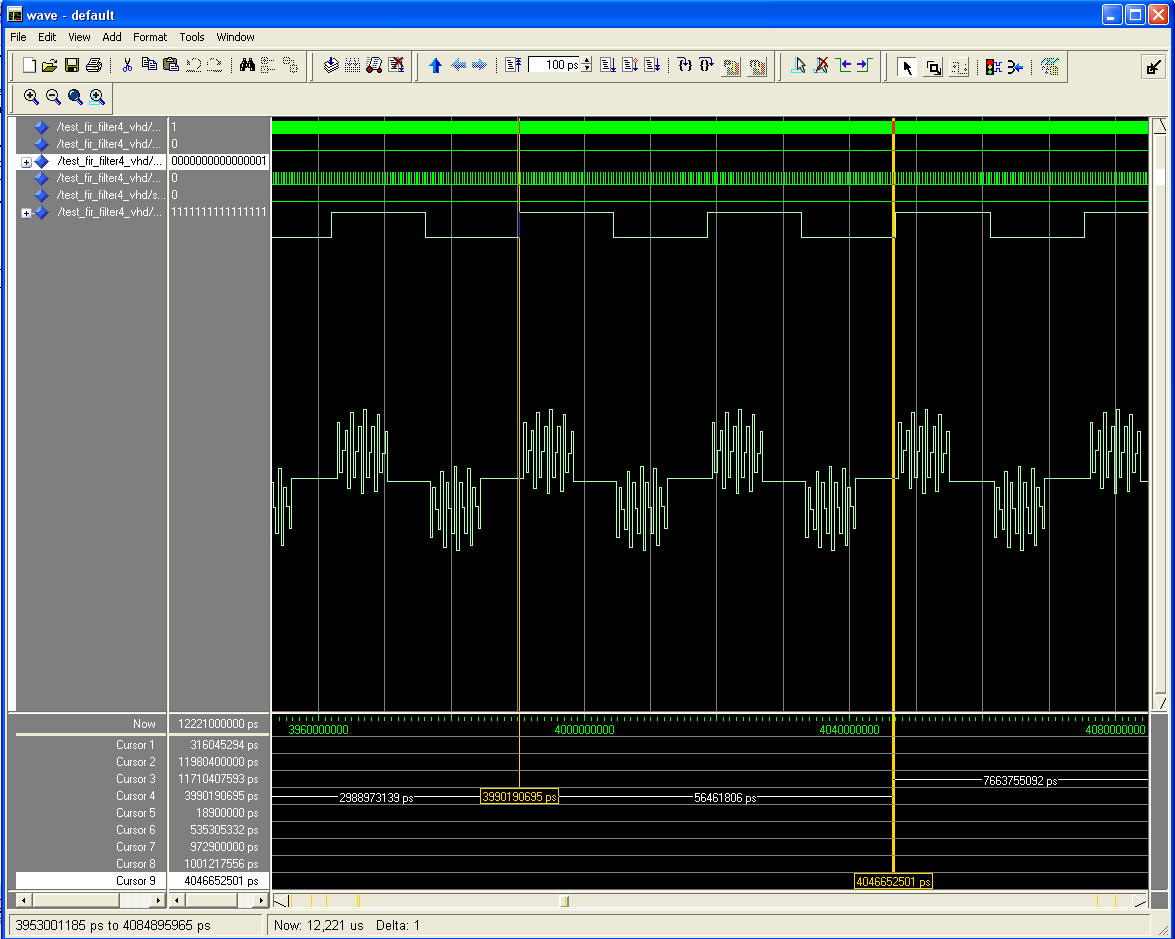

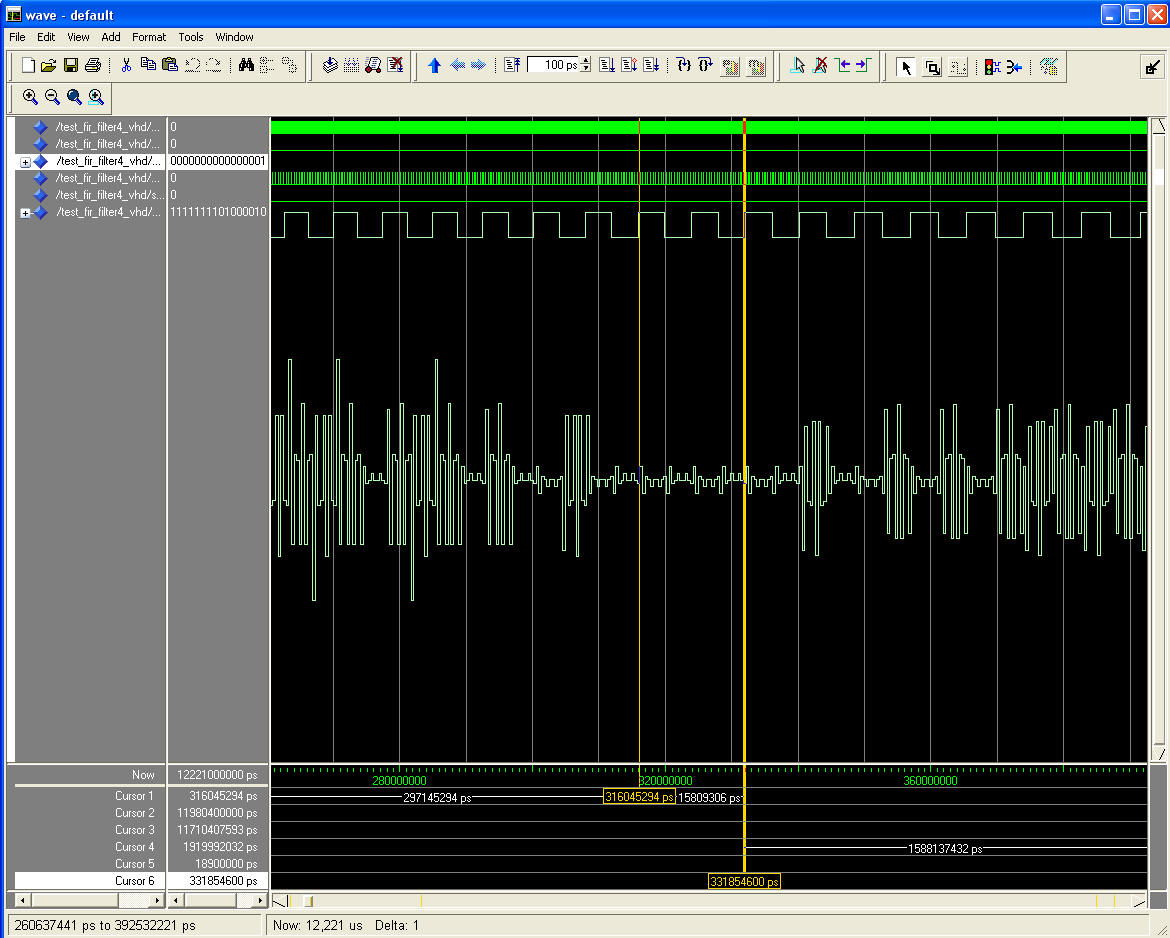

The tb: process will be replaced by the code below in order to make a square-wave sweep

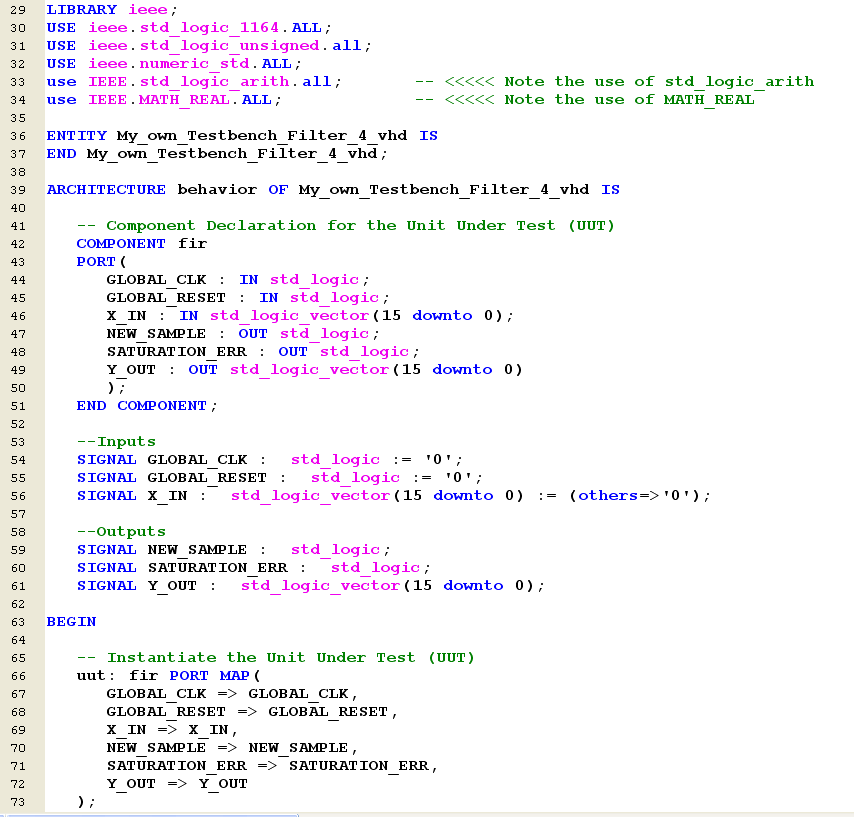

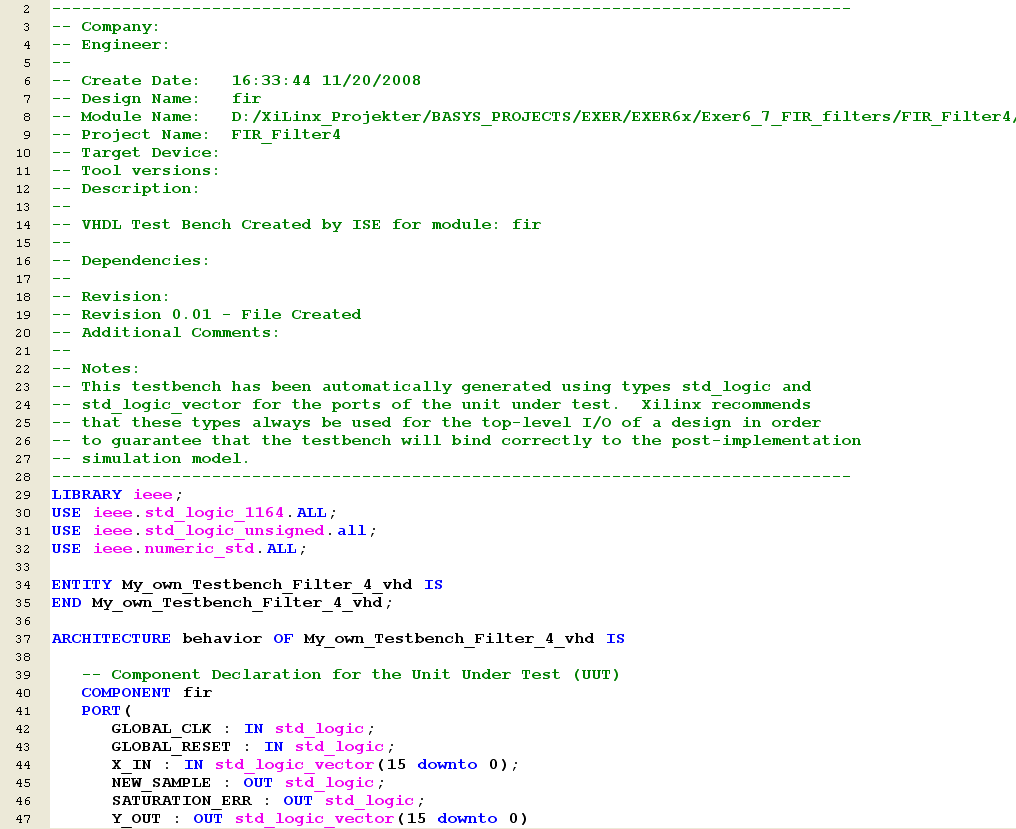

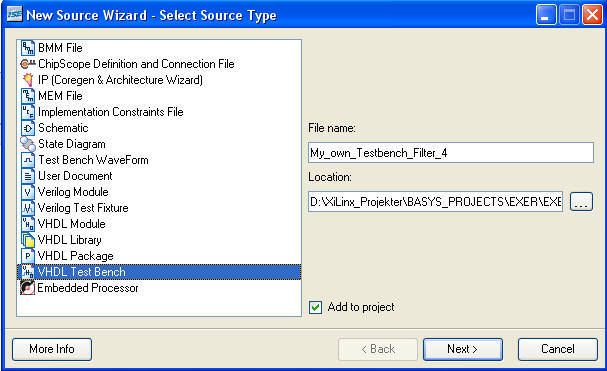

My_own_Testbench_Filter_4.vhd
