Dice 2 - Solution #1:   3-bit counter with T-Flip/Flops





Last updated: 15-02-09









The "bad" solution








The better solution

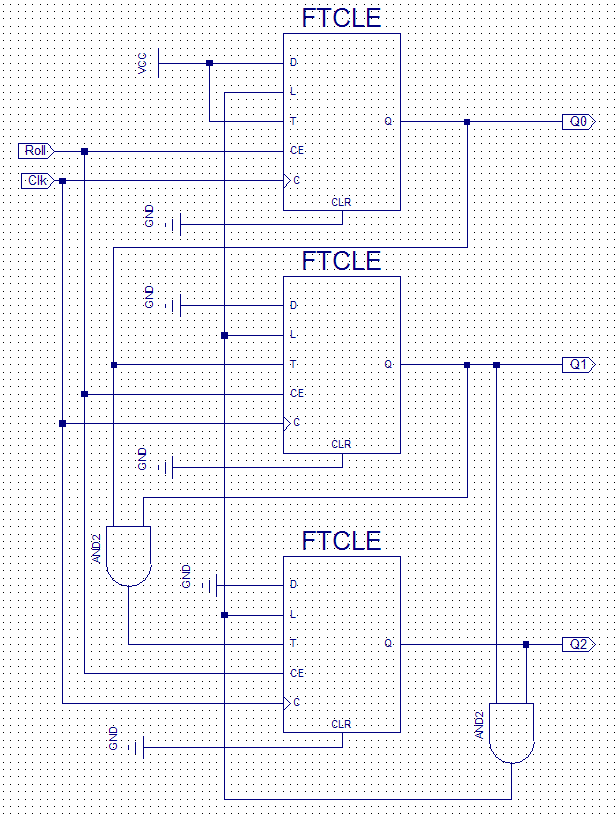

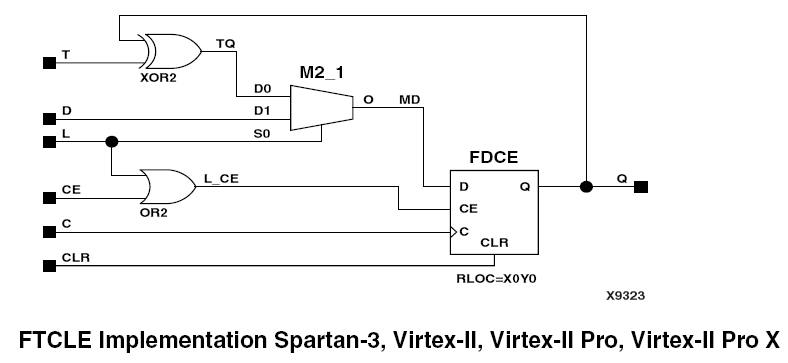

I was an "error" to use the FTCLE in the first attempt for a solution.

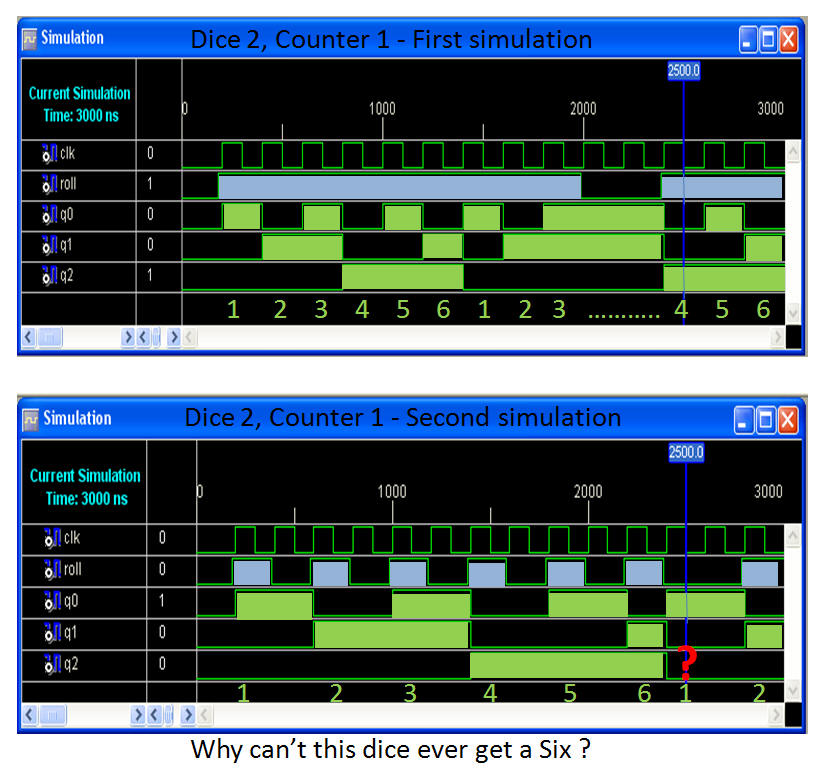

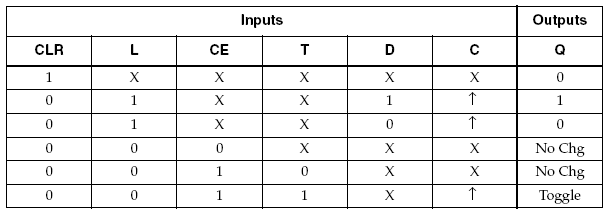

If L='1' at the FTCLE will this generate a CE='1' and hence will it be impossible to stop at a Six.

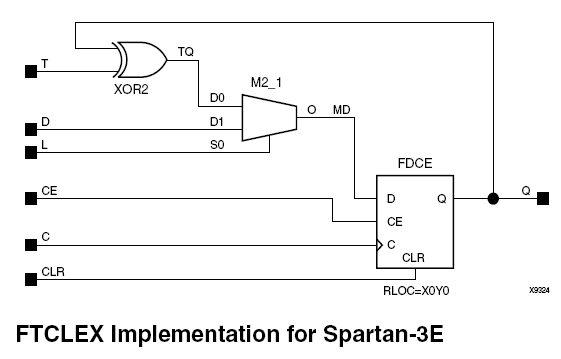

The FTCLEX doesn't have this "disadvantage" .

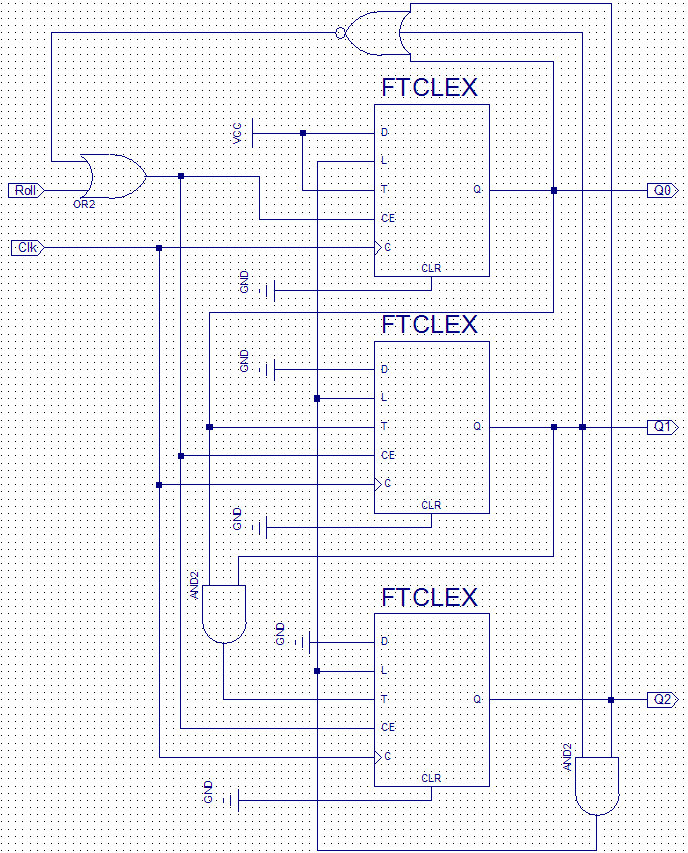

The problem with the start value = 000 can be solved by a NOR and a OR gate.
