Structural VHDL
Up ]







Last updated: 30-01-09

VHDL designs will usually consist of modules / components (like Objects and Classes in C++,C# and Java).

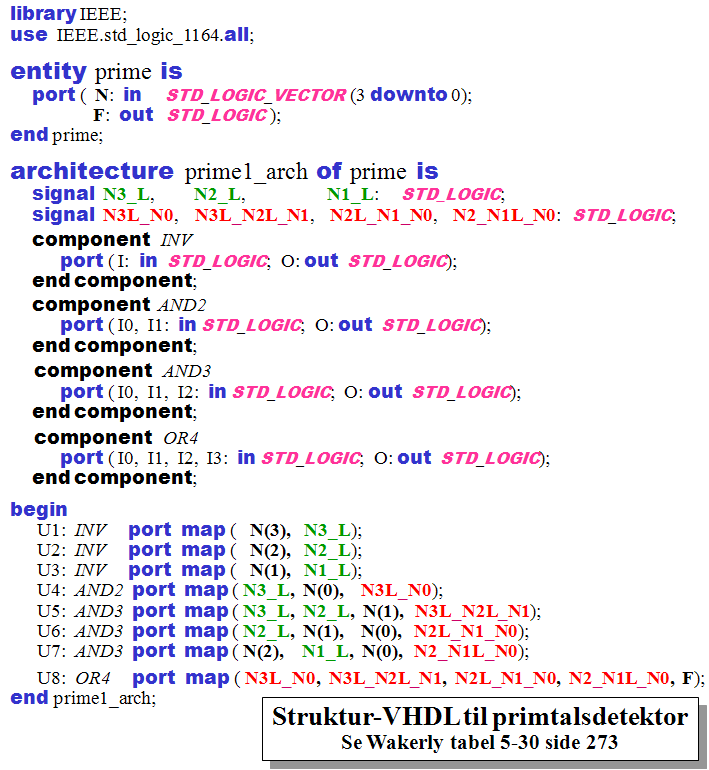

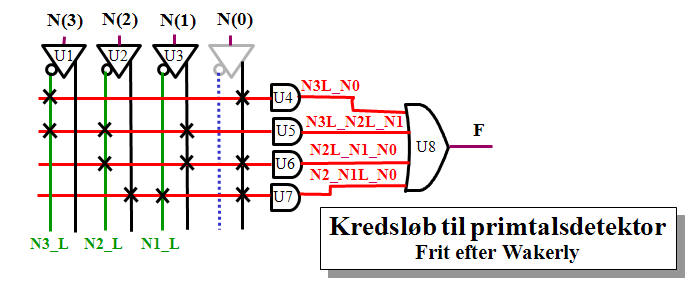

The purpose of structural VHDL code is to define a schematic of such modules. Please note to most tools like Xilinx ISE will produce the structural code from a Schematic (made by the user).
