The multiplexer can be found in almost every digital design and Mux's also a basic element inside a FPGA.

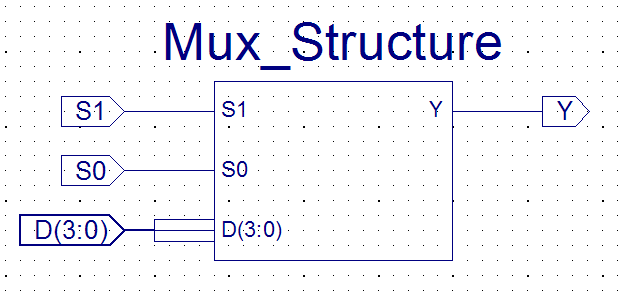

The goal of this example to present a multiplexer using different VHDL statements. The Entity is the same for all examples and will produce a schematic symbol like the one shown at the right.
The goal of this example to present a multiplexer using different VHDL statements.
The Entity is the same for all examples and will produce a schematic symbol like the one shown at the right.

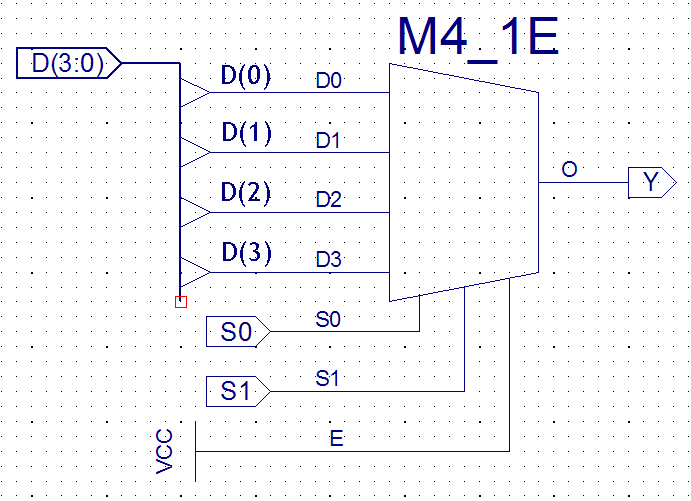

The standard multiplexer M4_1E can be used as well as an example.
Extract from the M4_1E - Truth table
