#4.4 Kiss to FSM
Up ]

The "Keep It Simple S..." format gives compact description of a Final State Machine.

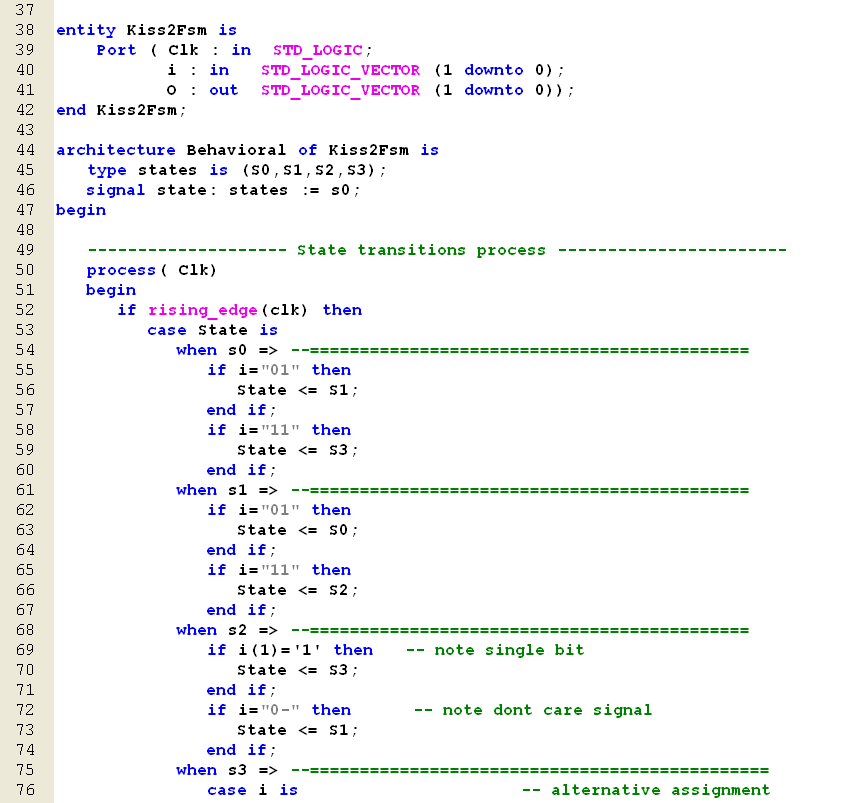

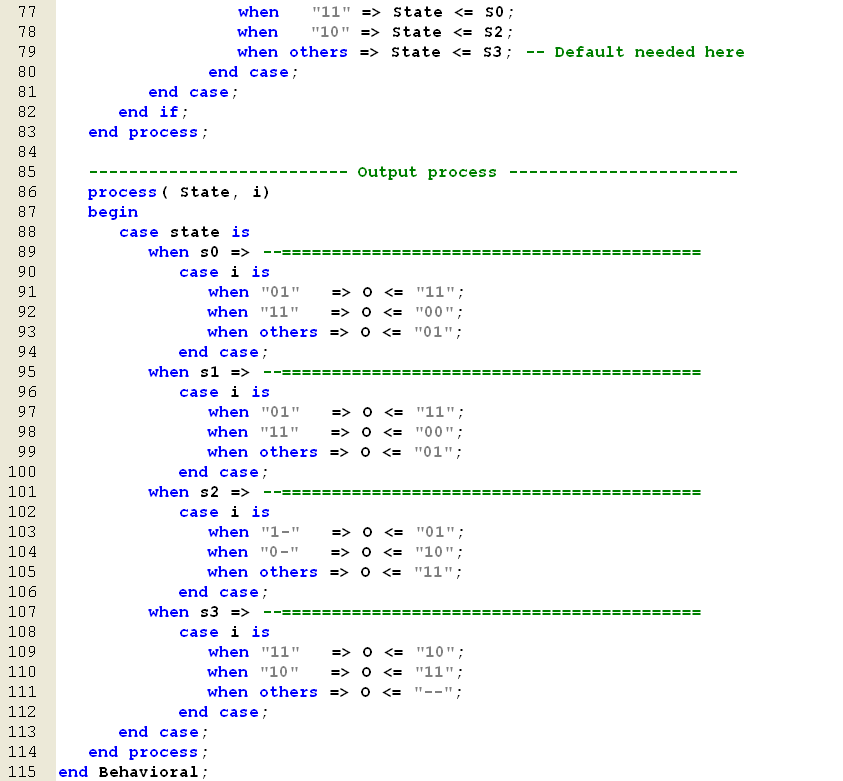

If you lack a program which translate the KISS format to an actual VHDL implementation can it be done by hand.



Please note! I believe that the lack of a default output value must give problems in a practical design - perhaps would a Kiss3 format be useful to solve this problem :-)
