Solution - Toggle Button
Up ]

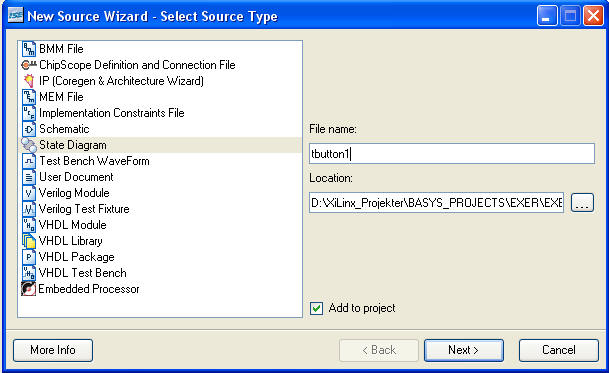

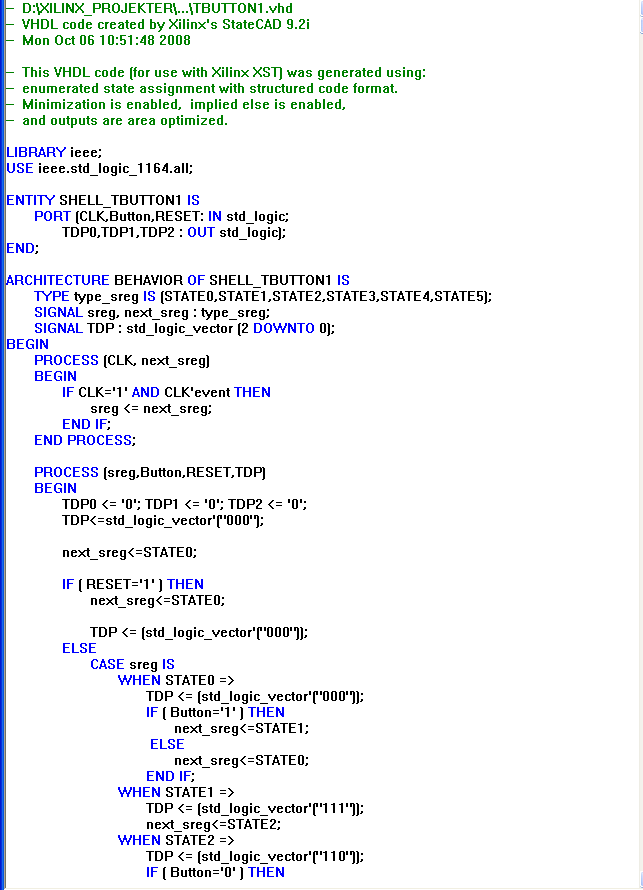

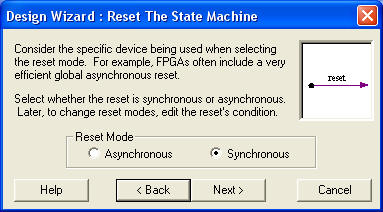

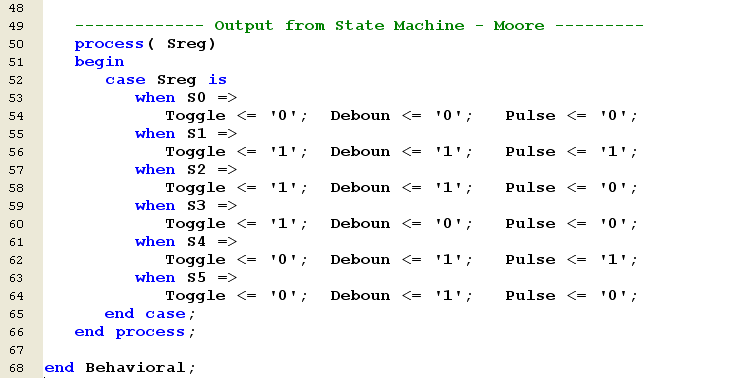

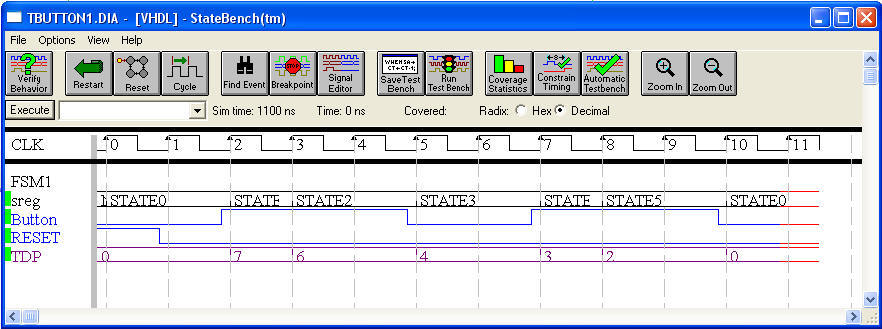

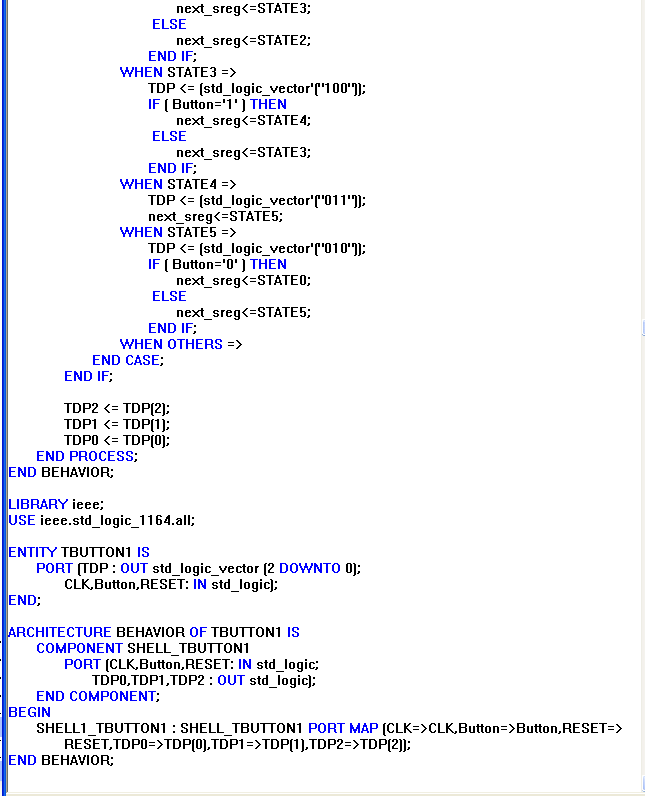

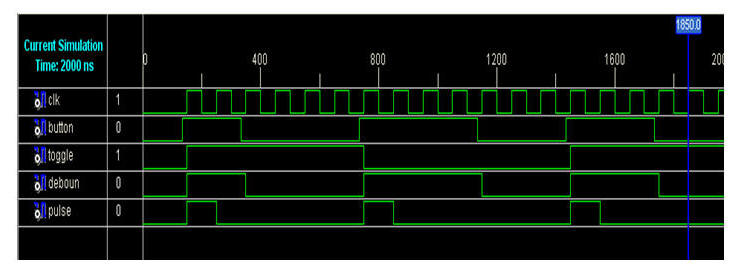

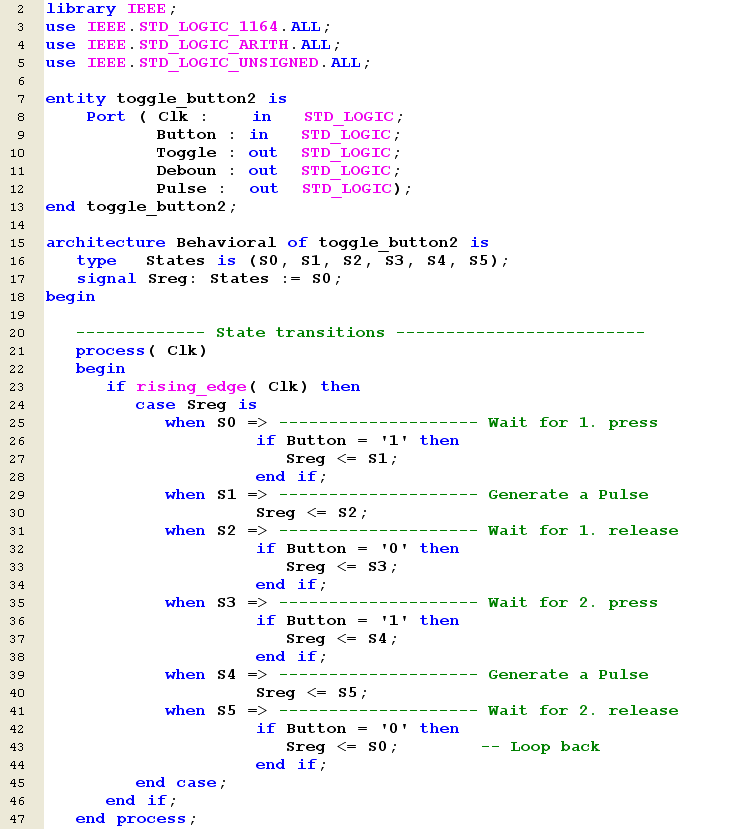

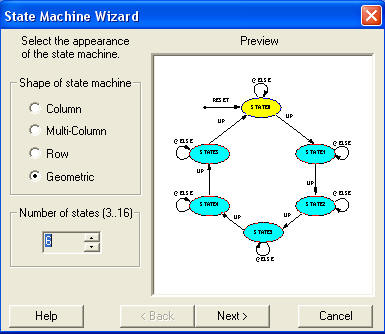

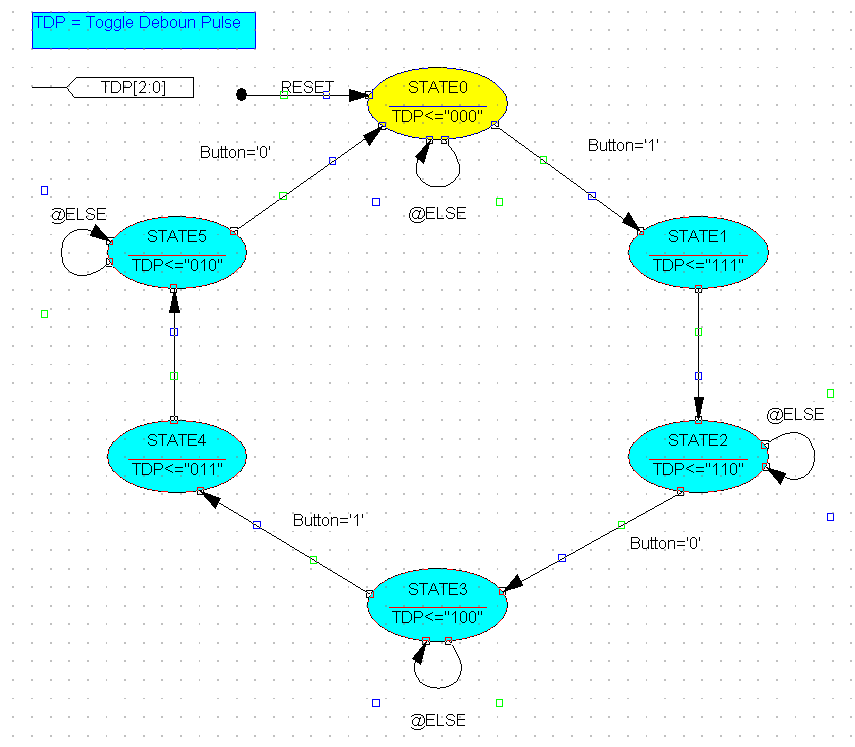

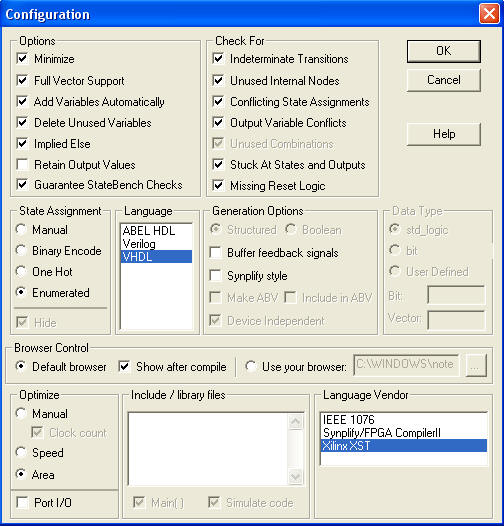

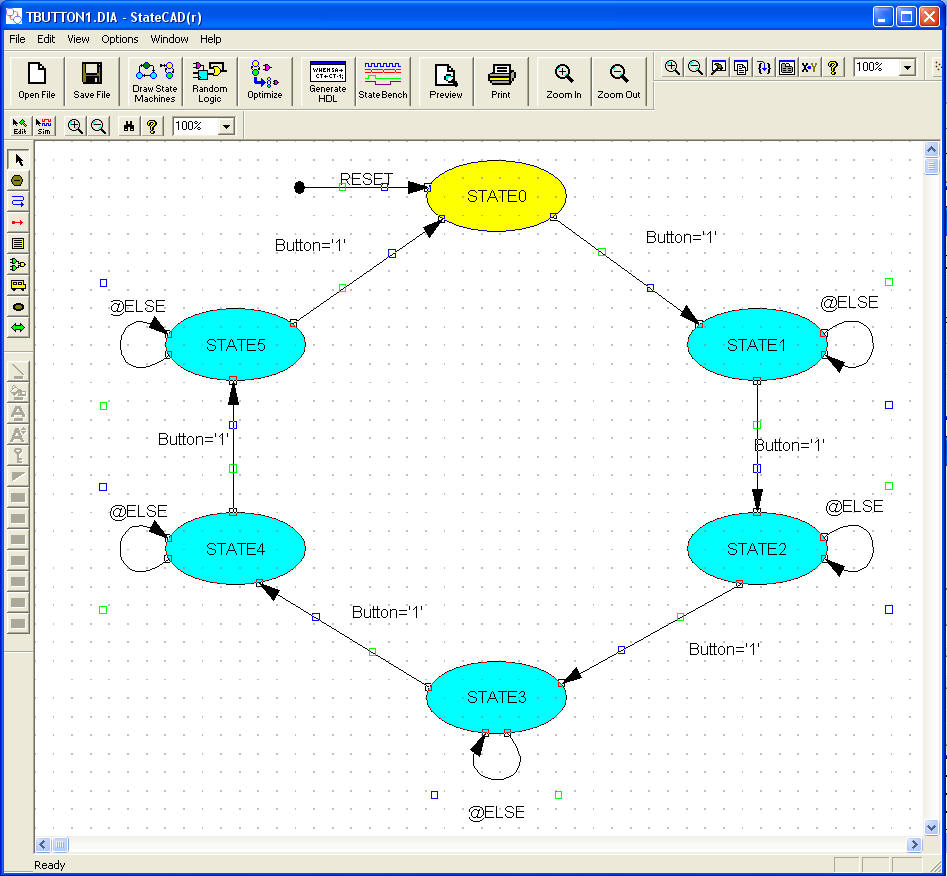

This solution uses a technique called - "output coded states" which leads to a Moore type State Machine.

I could be necessary to add extra F/F's in order to make every states coding unique.

In order to remove bouncing effects from the button is the Q-Shiftregister added to the design.
