Multipliers
Up ] Combinatorial Multipliers ] Multiply Constants ] Sequential Multipliers ]





A Combinatorial circuit can be formed to perform multiplication. The logic AND function actually a 1x1-bit multiplier.

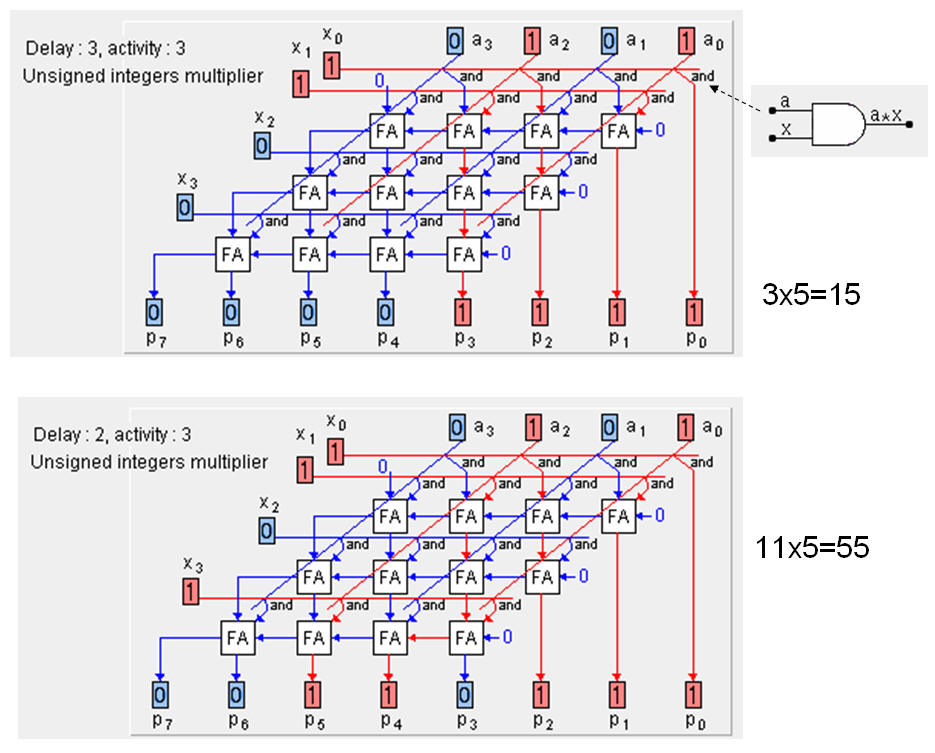

In order to perform multiplication must a network of AND-gates and Full Adders be formed as shown below.

The figures borrowed (sorry) from this great site.
