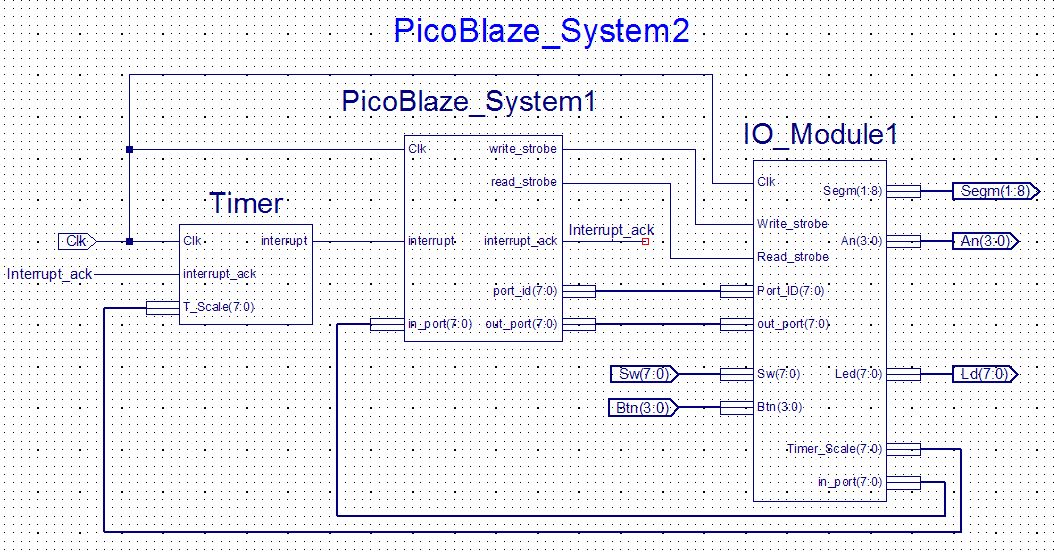

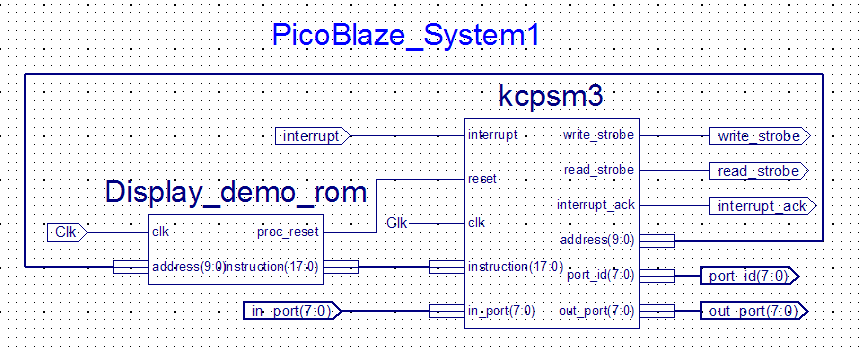

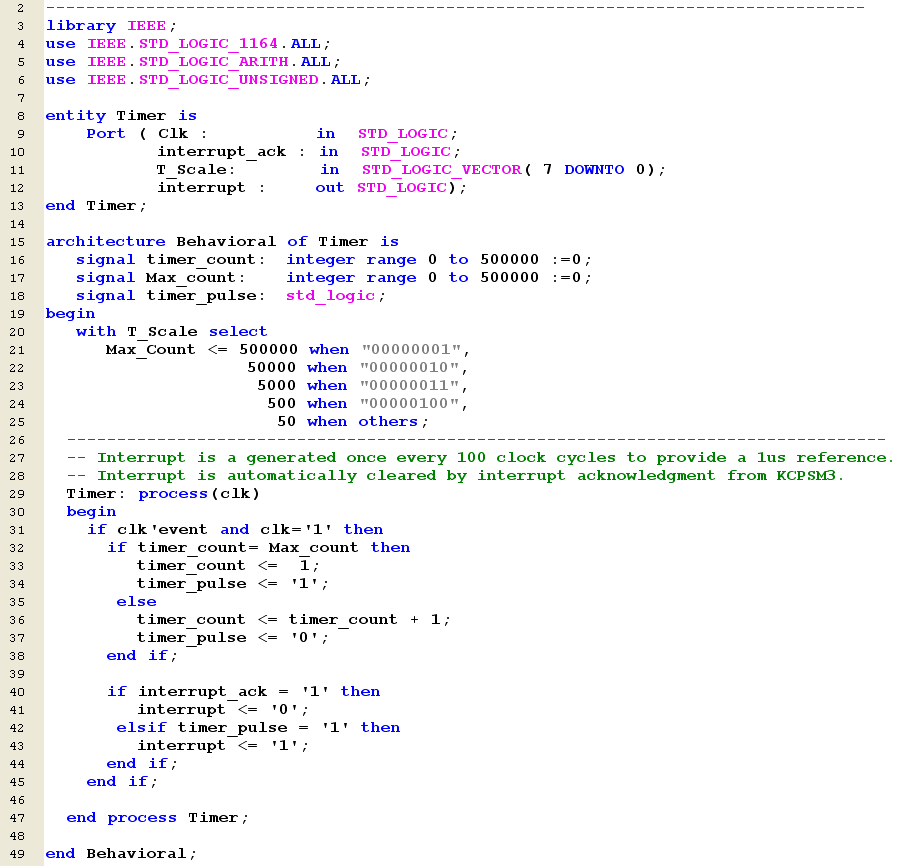

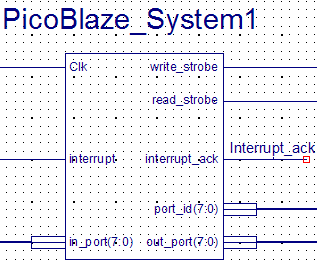

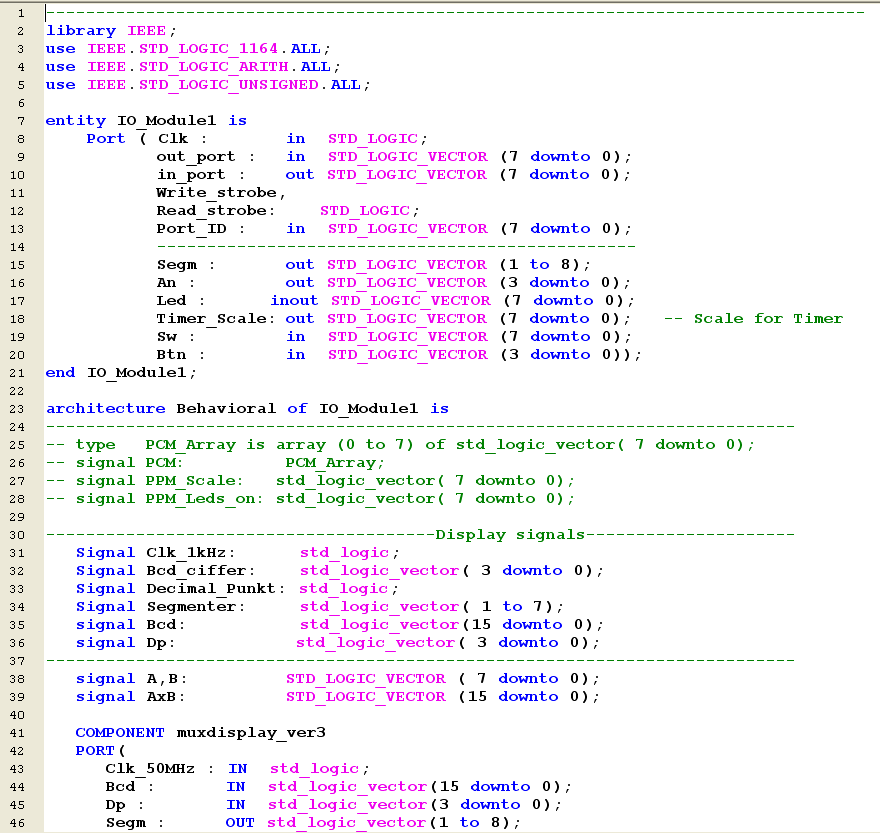

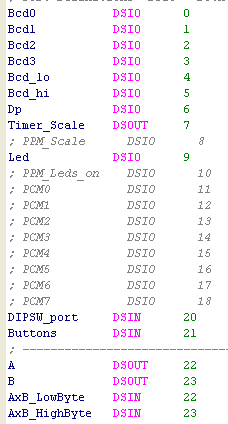

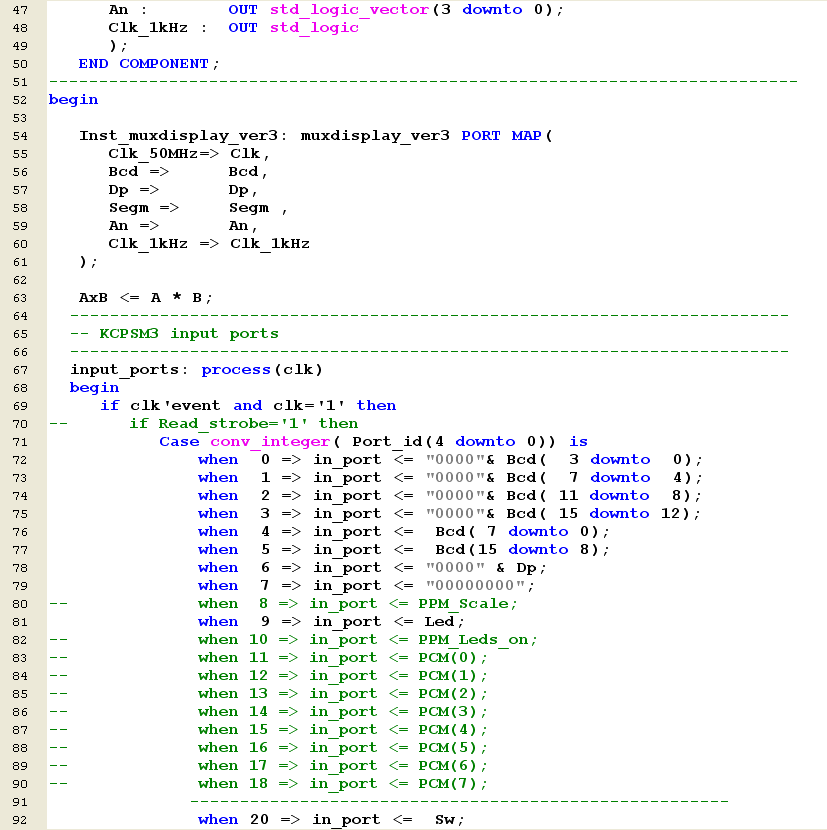

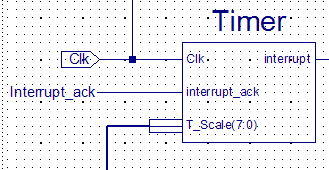

Download a zippet project with the design below (based at XiLinx ISE 9.2i)
PicoBlaze_Demo2_minus_KCPSM3.zip
Note! You must download and add the Kcpsm3.vhd from Xilinx and the IDE from MediaTronix (both free)


 Download this bit-file to you BASYS kit to test the functionality:
picoblaze_system2.bit  or Picoblaze_system2_NEXYS.bit

<Btn0> will act as Start / Stop for the Stopwatch
<Btn1> will act as Lap / Reset for the Stopwatch

<Sw0> will change the display:  <Sw0>=0 => ss:1/100s   <Sw0>=1 => mm:ss

<Led2:0> displays the state of the Stopwatch:


•   001 = IDLE                   => <Btn0> will start the watch and change state to RUNNING

•   010 = RUNNING          => <Btn0> will stop the watch and change state to STOPPED
                                              <Btn1> will freeze the display with a Lap time and change state to RUNNING_LAP

•   110 = RUNNING_LAP => <Btn0> will stop the watch and change state to STOPPED_LAP
                                              <Btn1> will the display the running watch again and change state to RUNNING

•   100 = STOPPED_LAP => <Btn0> will stop the watch and change state to STOPPED
                                              <Btn1> will freeze the display with a Lap time and change state to RUNNING_LAP

•   000 = STOPPED          => <Btn0> will start the watch and change state to RUNNING
                                               <Btn1> will zero the watch counter and change state to IDLE
