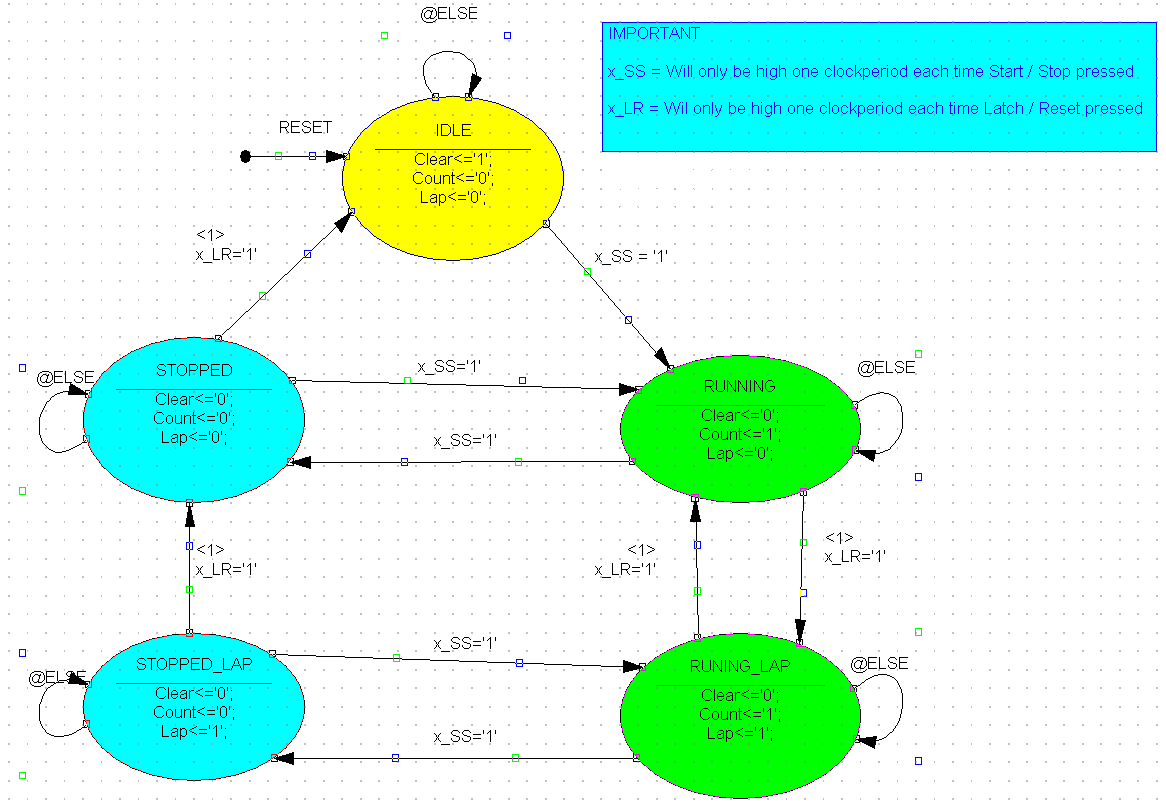

 PicoBlaze State Machine
 [ Up ]

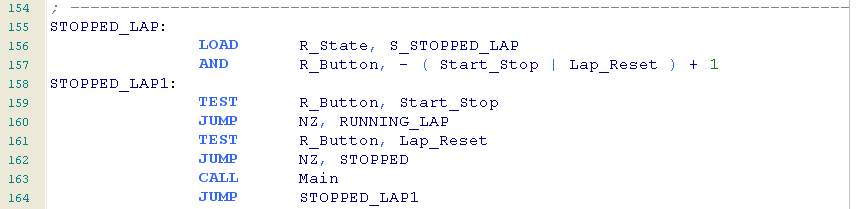

    Due to lack of an negation will the - (x)+1 produce a negated mask

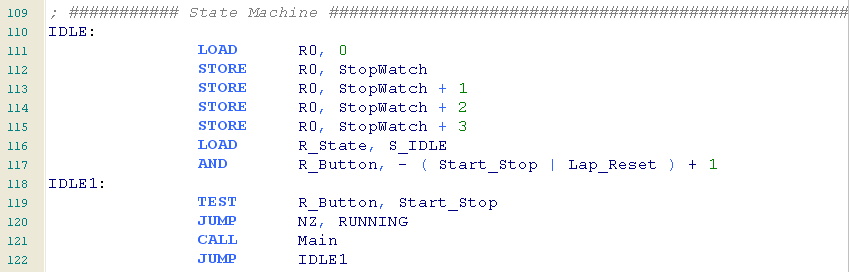

When ever the IDLE state entered will it result in a reset of the StopWatch (4 bytes)

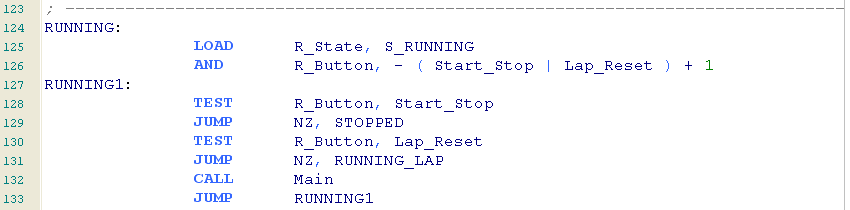

A press at Start / Stop will course a change to state RUNNING
