Ripple Carry
Up ]

The basic element for most adders called a Full Adder (and can be formed by two Half Adders :-)

The Full Adder able to "calculate" the sum of 3-bits and hence give results like 0, 1, 2 or 3 (decimal numbers) which 00, 01, 10 or 11 binary.

  •  N+N-bit adders form with Full Adders

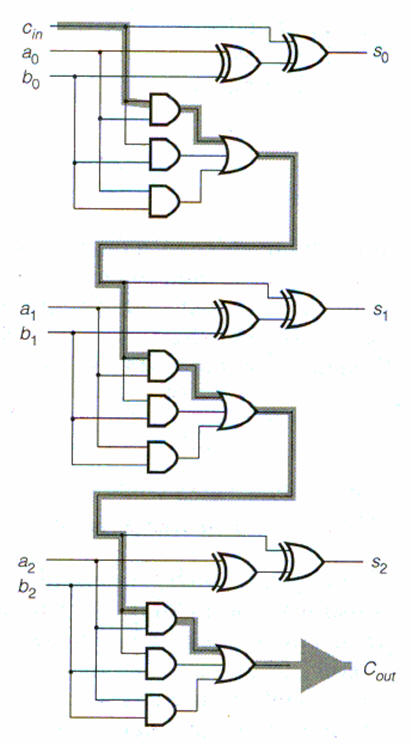

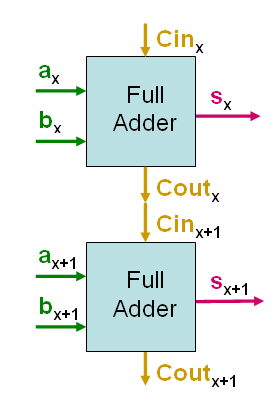

In order to create  adders for N+N-bit addition must you take N Full Adders and connect the in a chain.

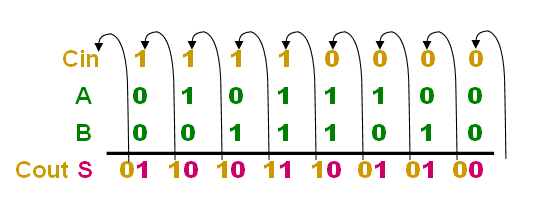

The principle will be very much the same when we do the addition by "hand" at a sheet of paper.

  •  Ripple Carry Addition (Trade Speed to save Area)


The good thing about Ripple Carry adders the relative simple hardware it takes to form a N+N-bit adder.

The bad thing can be found the nature of the Ripple Carry. It cost 2 x Gate delays for each stage formed by a Full Adder.

A 32-bit Adder will then:

Use 128 Gates for the Carry Chain

Have a propagation delay of 64x Tp

  •  VHDL implementations of a Full Adder

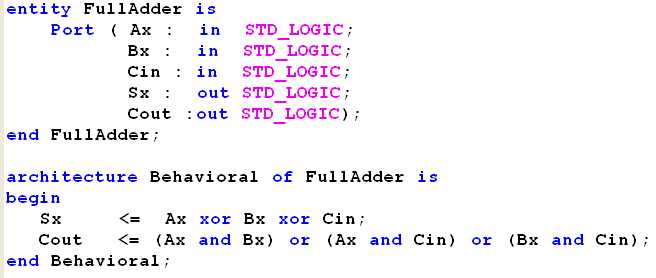

The "text-book" implementation.

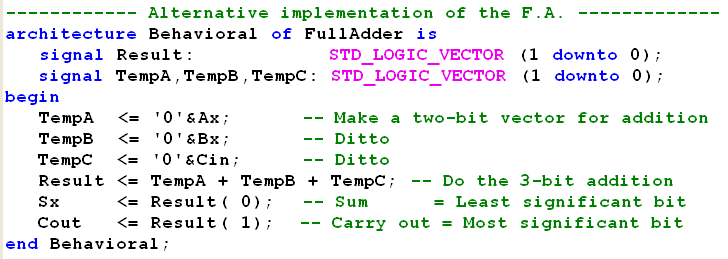

Alternative version of the FA which in the end will be implemented the same way as the "Text-book" version above.

  •  Implementation of a 32+32-bit adder with a generate statement.


One way of implementation could be a schematic diagram with 32 Full Adders drawn and connected in a chain.

Alternative could a Structured VHDL code be written with the same result - 32 Full Adder connected in a chain.

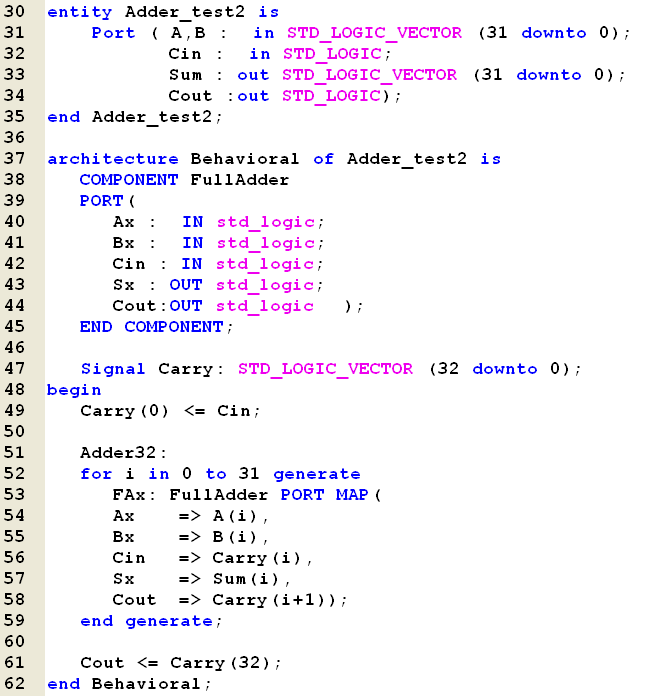

The most elegant way how ever to use the generate statement of VHDL and an internal Carry Vector with N+1 elements.

Each Full Adder will then take a Carry from Carry(i) and produce the next Carry for Carry(i+1).

The Last element in the Carry chain will in the end be the new Cout value.

  •  Hardware Cost of a Ripple Carry adder implemented in a FPGA


Just as expected will a 32+32-bit adder use 64 LUTs (one LUT for the SUM and one LUT for the Carry in each Full Adder)

  •  Simulation of a Ripple Carry adder implemented in a FPGA


Just as expected will the ripple nature of the Carry be shown in a simulation of the Ripple Carry adder.
Strange result for the Sum(11) and Sum(10) but never mind .....
