Example 2 (NEXYS)
Up ] VGA System ] PS2 interface ]

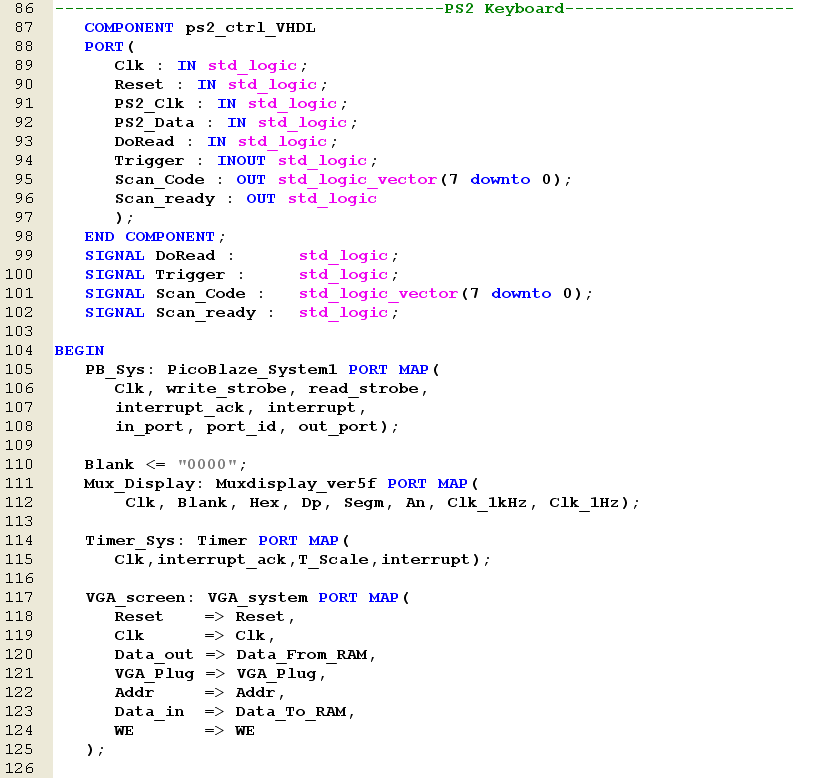

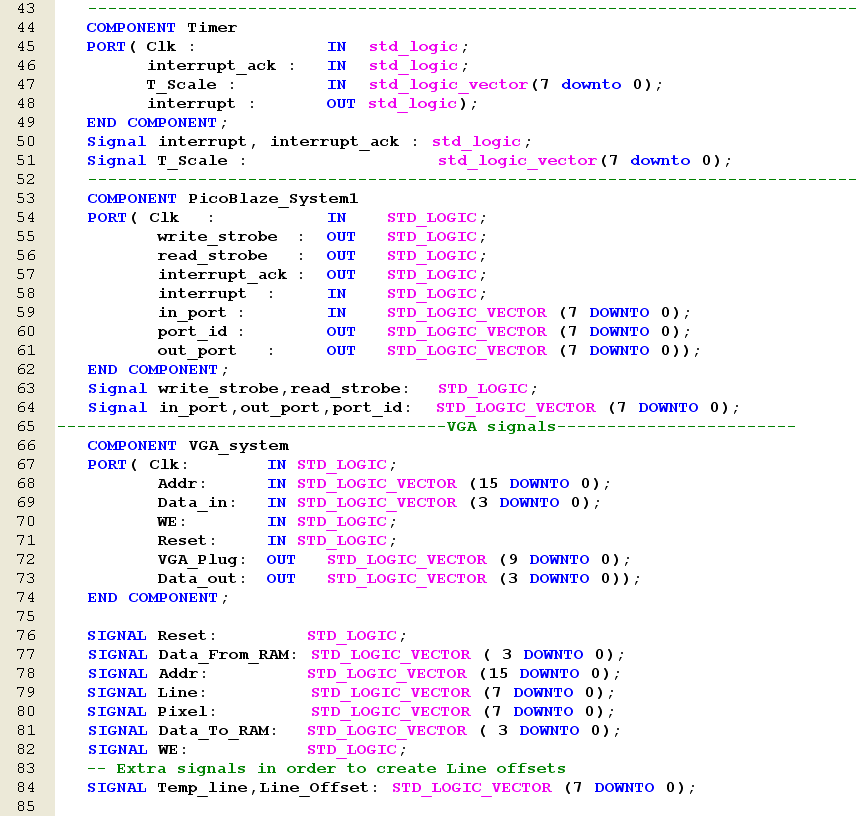

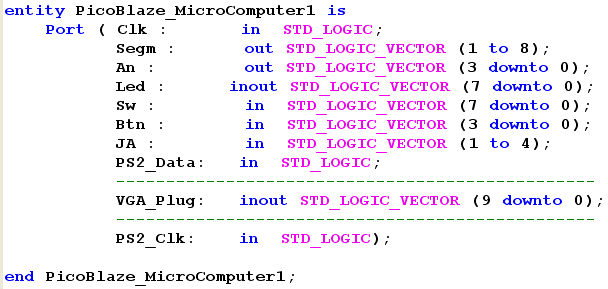

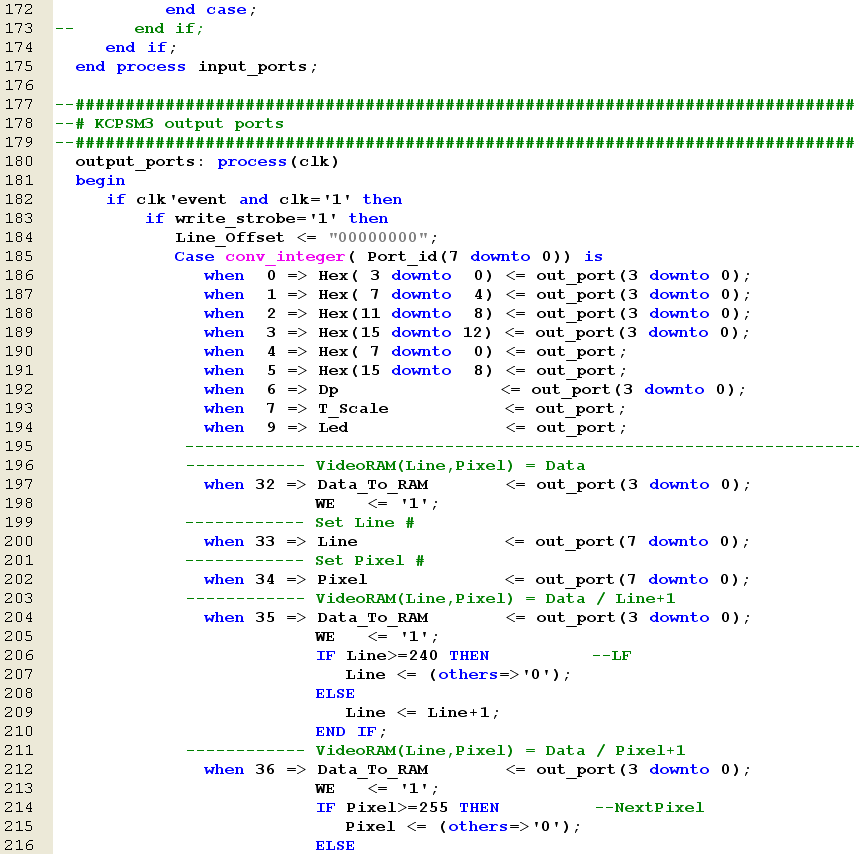

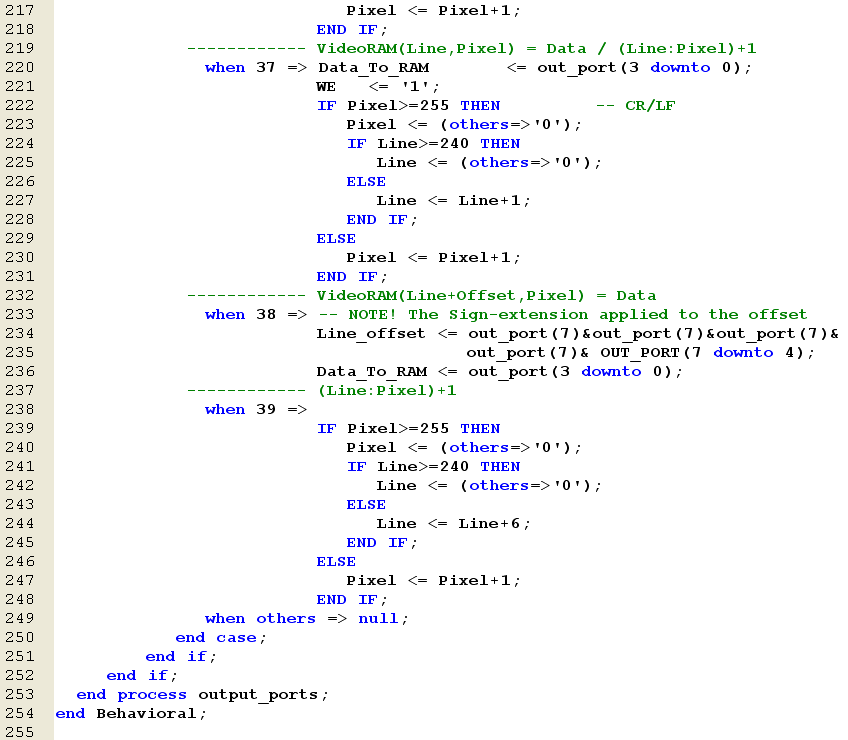

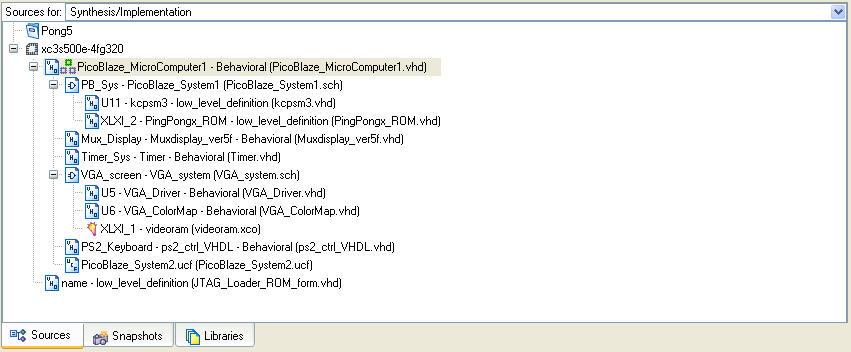

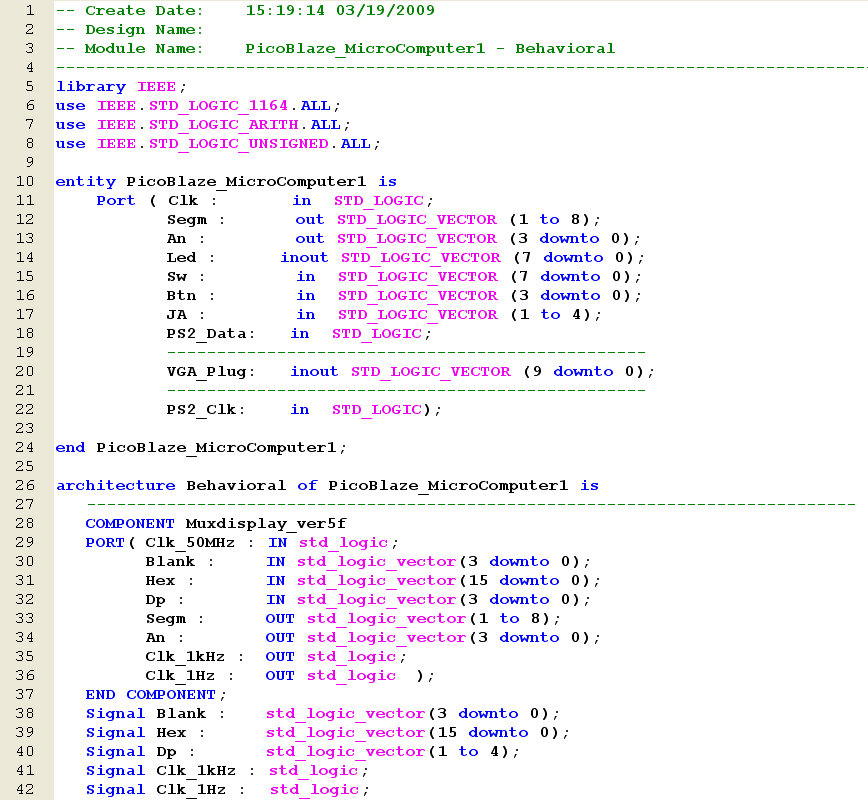

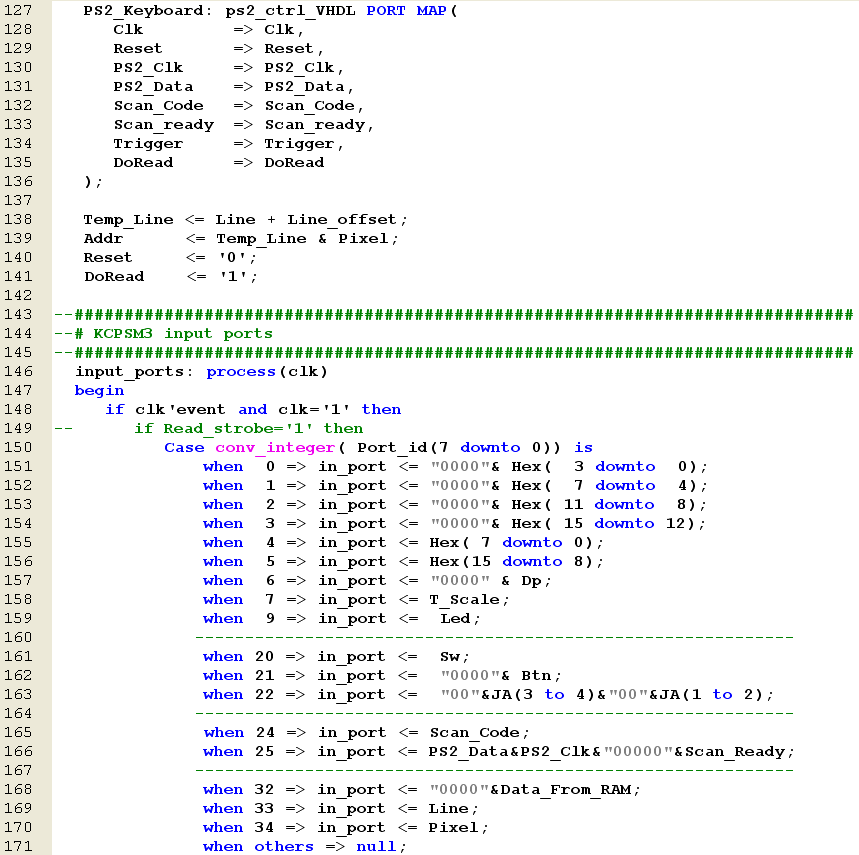

NEXYS - PicoBlaze system with (Graphics) VGA and Keyboard interface


To add a graphics VGA interface to a picoblaze perhaps some kind of joke - but it nevertheless can it be done.
Thanks to inspiration at the net - still work to be done in order to implement the Pong game in the PicoBlaze






Last updated: 23-03-09
