Solution 2
Up ]




Last updated: 15-02-09

If you download the bit-file to the kit will you observe a "strange" behaviour when the dice rolls.
it seems the display freezes at either "5" or "8" - how come.

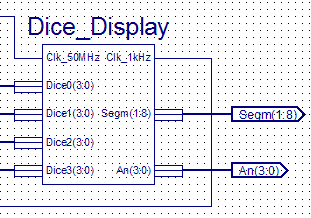

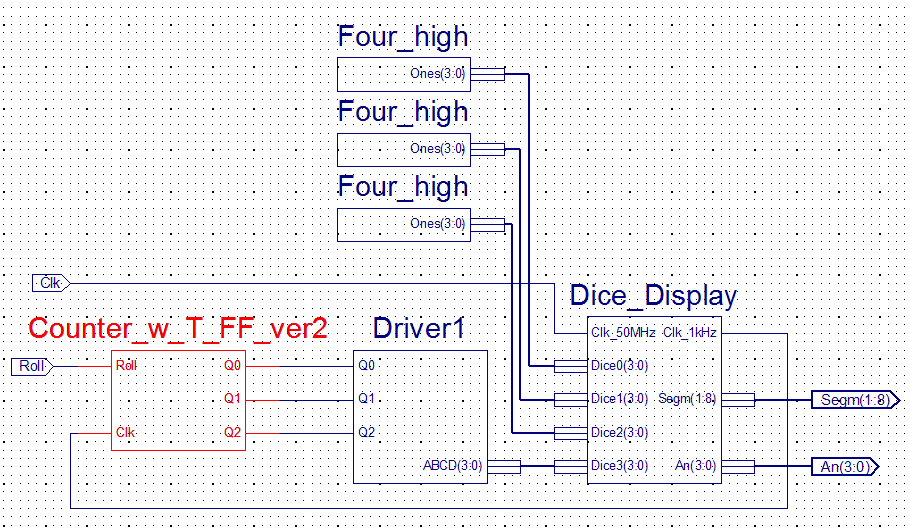

Answer - drag the mouse: The display and the Dice are connected as the the Clk_1kHz used for both devices. Hence will the display show one the following sequences - 1,5,3,1,5,3,1.... and 2,6,4,2,6,4,2 .....
