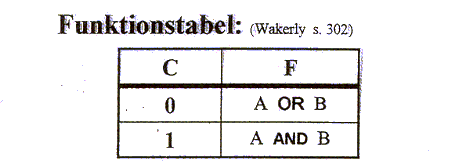

Create a logic circuit with the following functionality: There should be three inputs A, B, C + one output F: F = f( A, B, C) If C = 1 then F = A and B If C = 0 then F = A or B

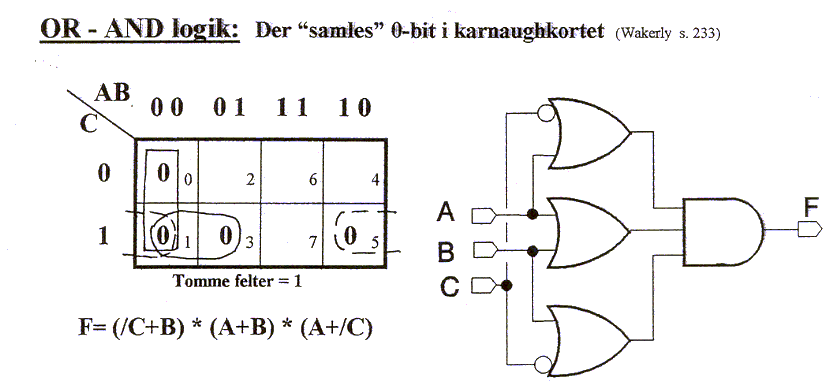

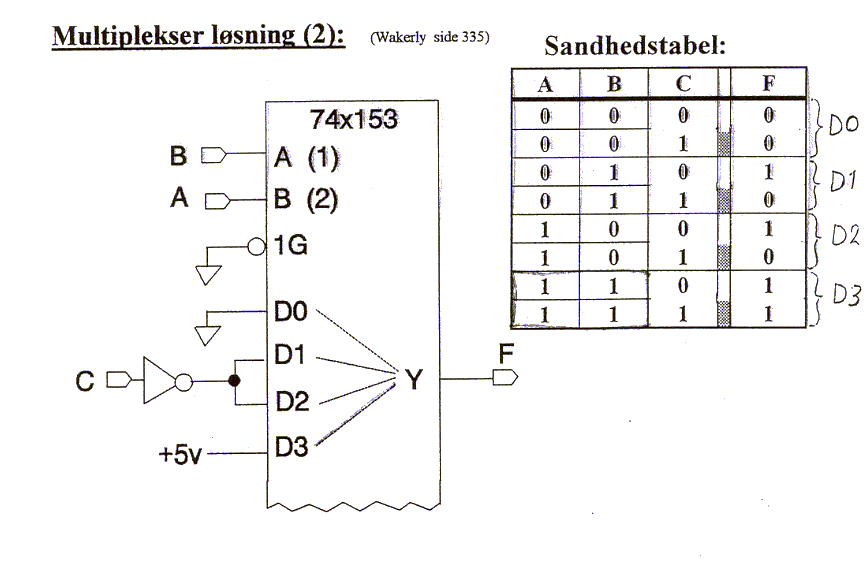

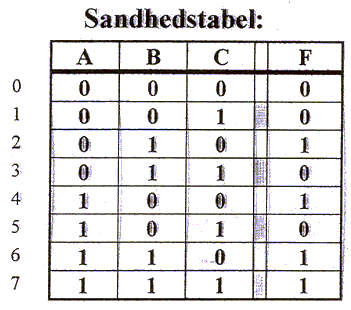

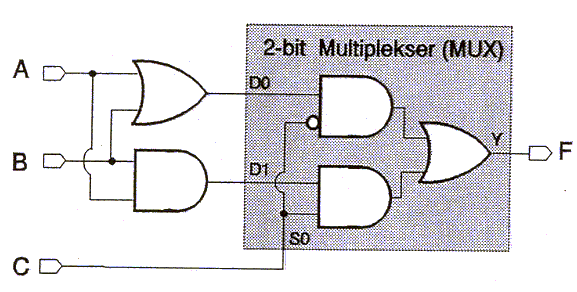

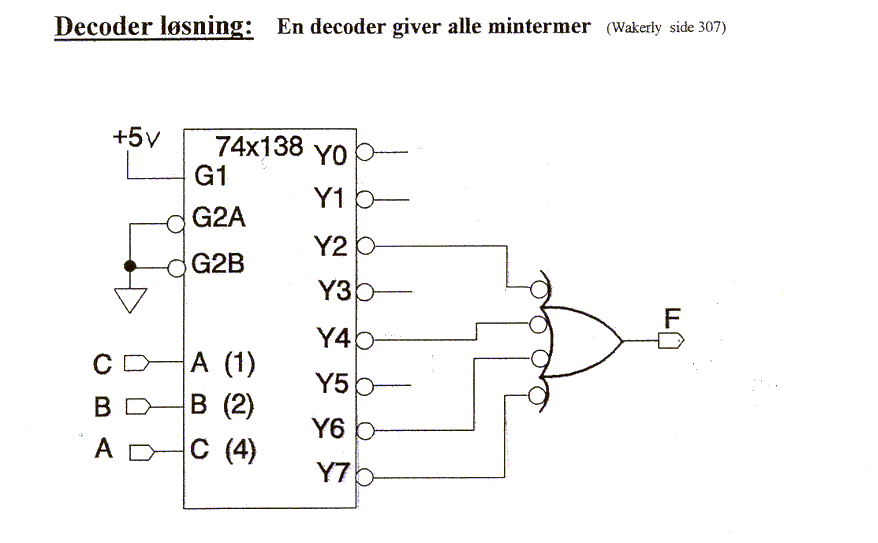

Create a logic circuit with the following functionality:

There should be three inputs A, B, C + one output F: F = f( A, B, C) If C = 1 then F = A and B If C = 0 then F = A or B

There should be three inputs A, B, C + one output F:

F = f( A, B, C) If C = 1 then F = A and B If C = 0 then F = A or B

F = f( A, B, C)

If C = 1 then F = A and B If C = 0 then F = A or B
