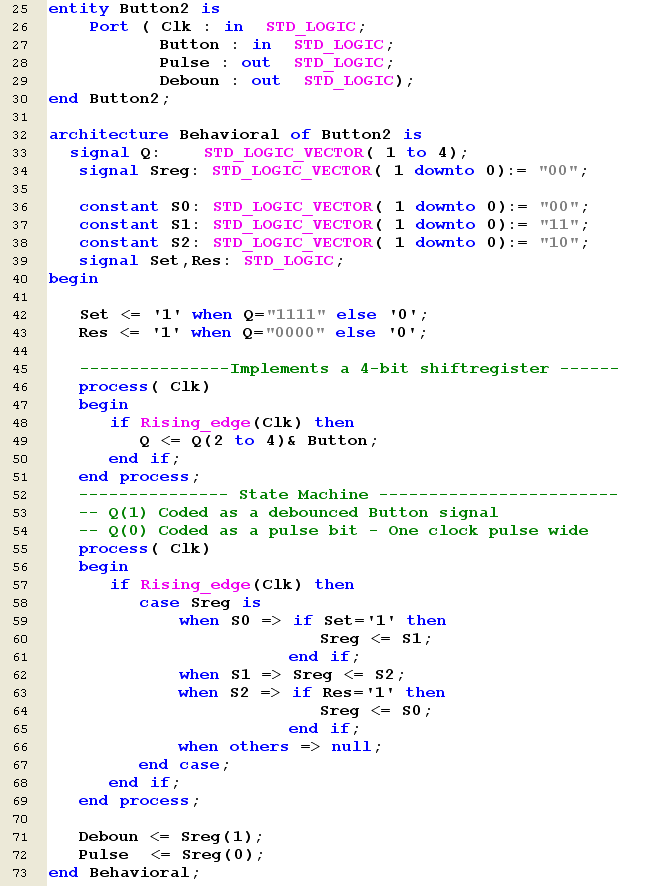

Button2.vhd

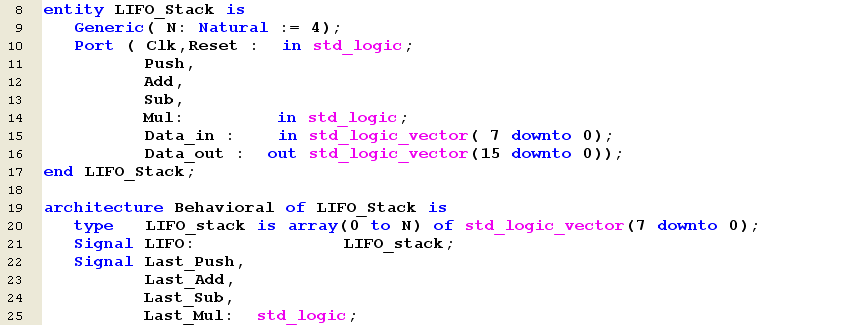

LIFO_Stack.vhd

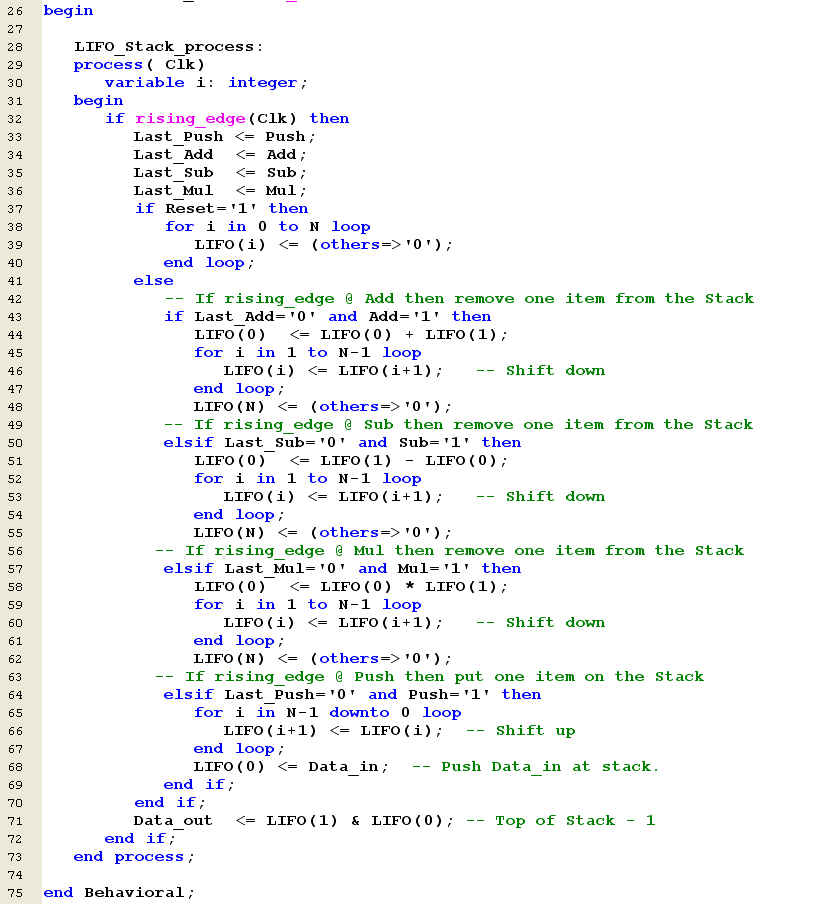

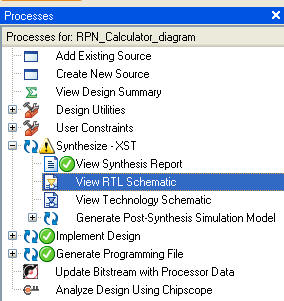

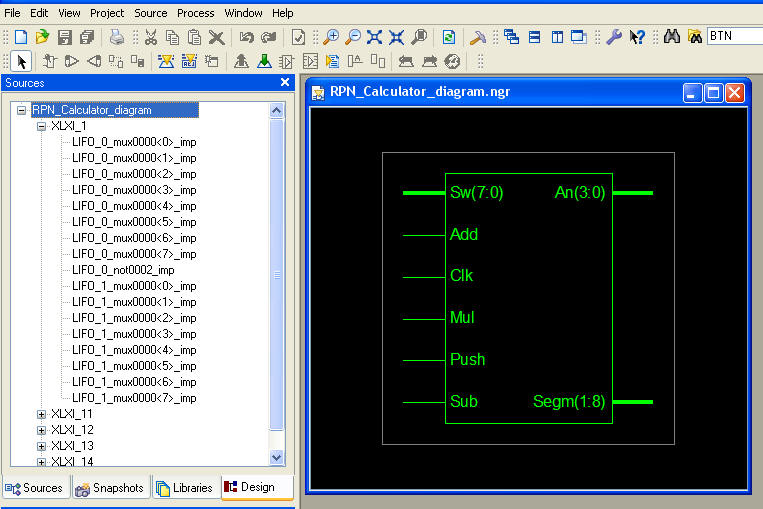

View RTL Schematic In order to understand the structure of the circuit, formed by the VHDL code can the RTL view be some help.
View RTL Schematic
In order to understand the structure of the circuit, formed by the VHDL code can the RTL view be some help.

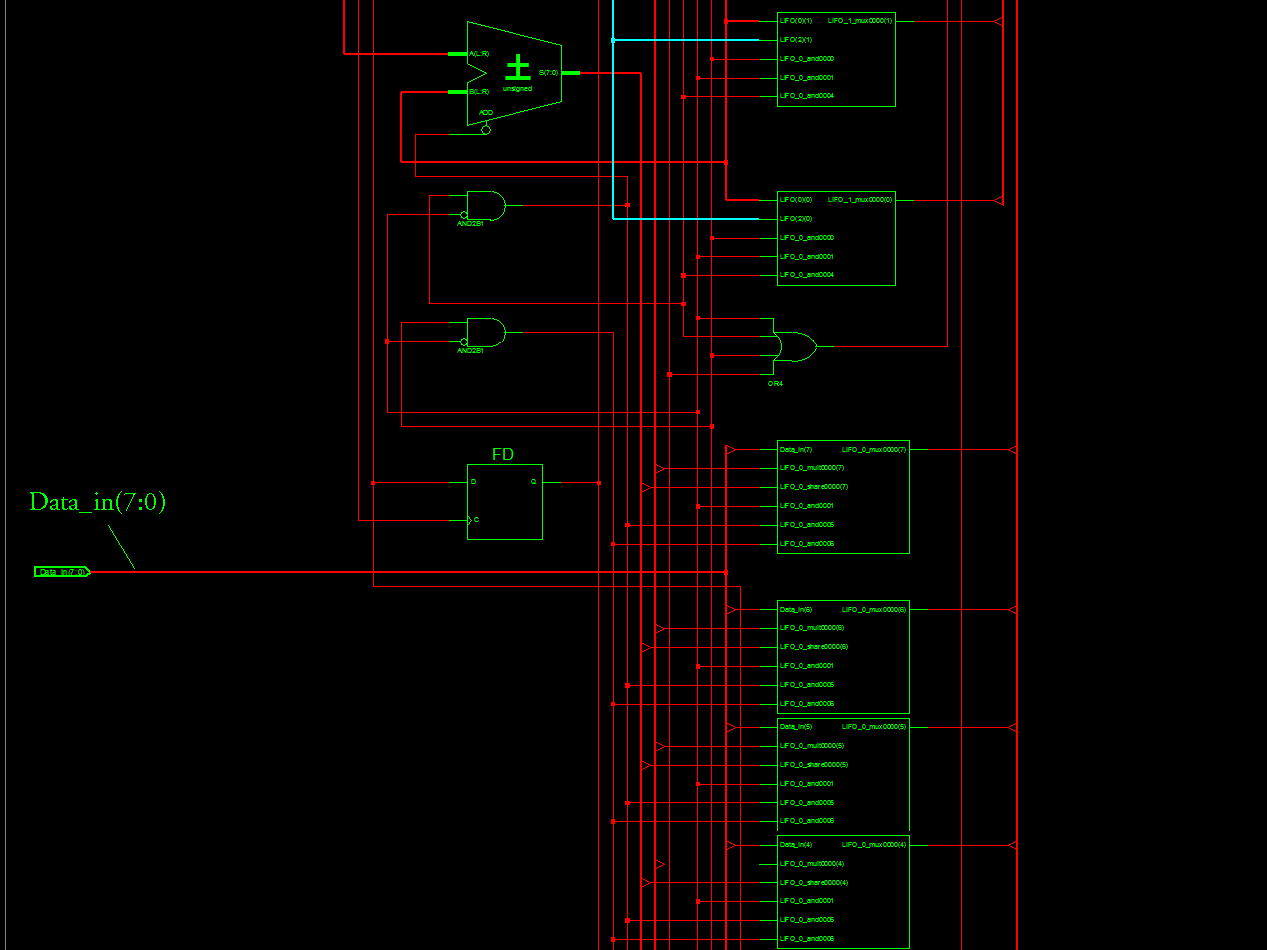

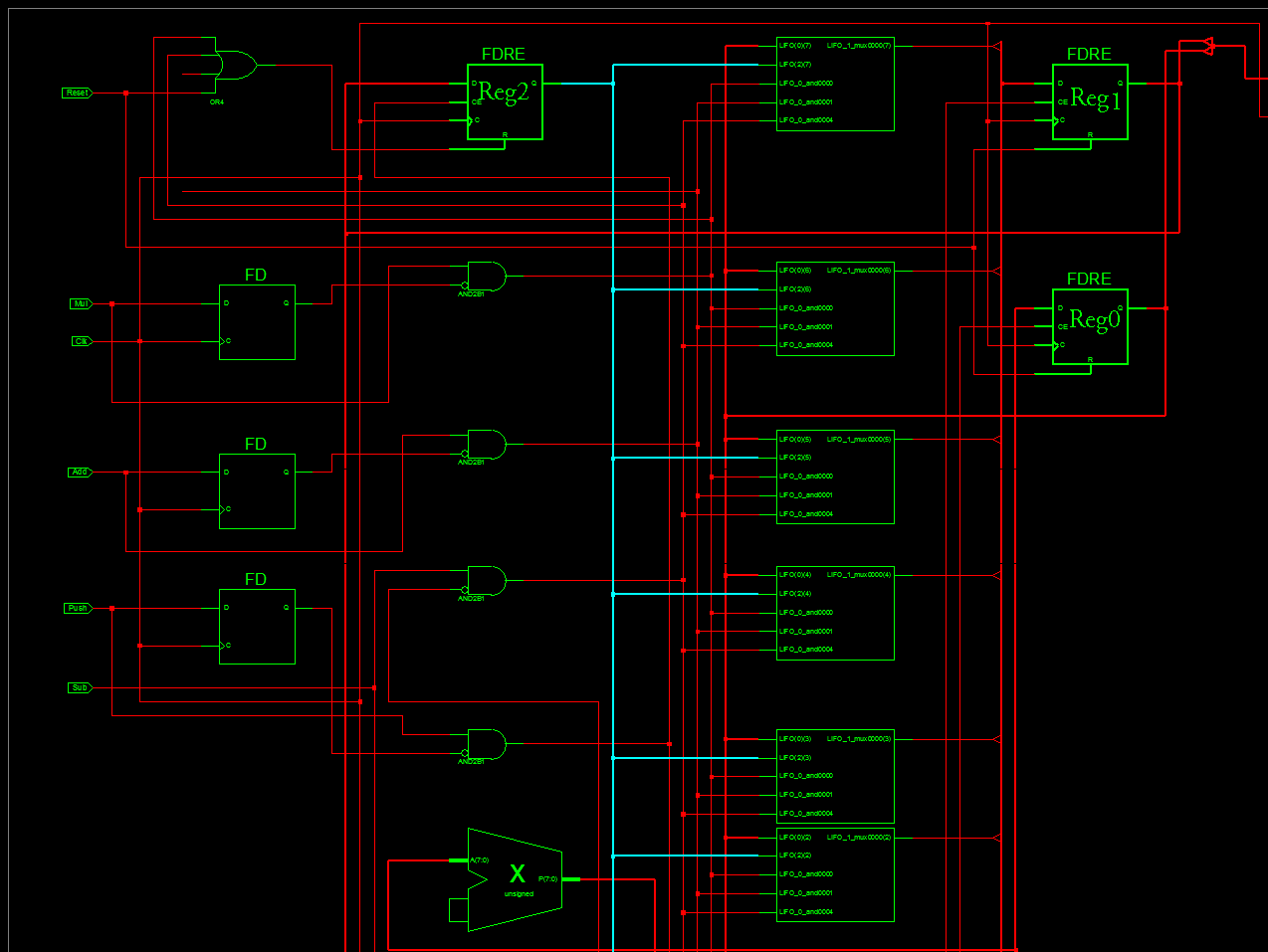

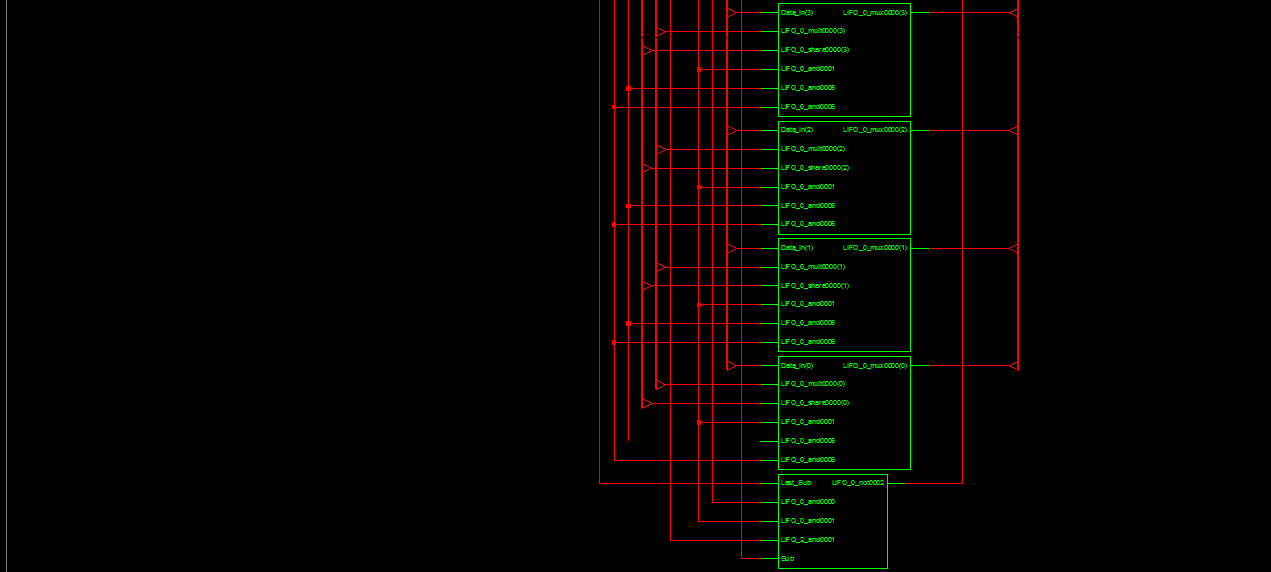

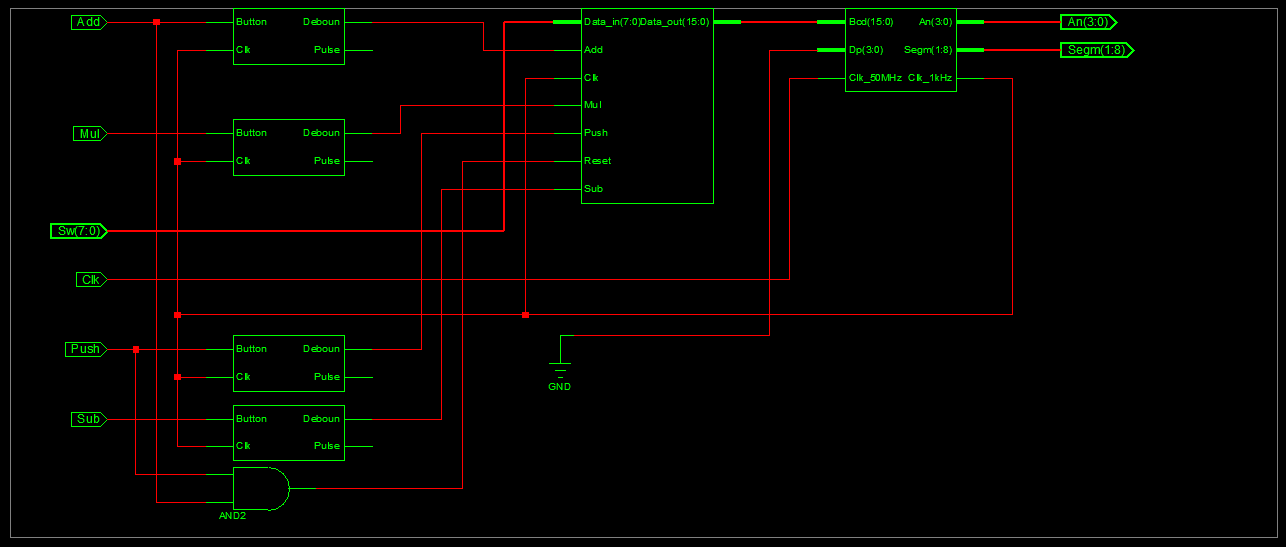

This circuit actually the schematic of the original design
Its the LIFO buffer which of most interest. (note - this LIFO got only 3x8-bit for simplicity)
