#3.4 D-F/F Ce Clr Res
Up ]

D-Flip/Flop's the most important sequential memory element which can be found in all types of programmable logic and hence its used by default in all types of synchronous designs.



In order to manage groups of F/F in a digital design will you have to deal with things like:

  •  Clock Enable

  •  Asynchronous Clear

  •  Synchronous Reset

Most F/F's inside programmable logic "born" with control signals for those features.

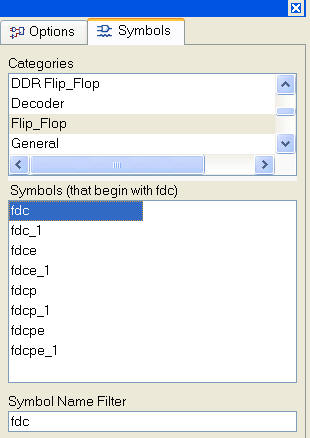

All this and more can be found in the libraries

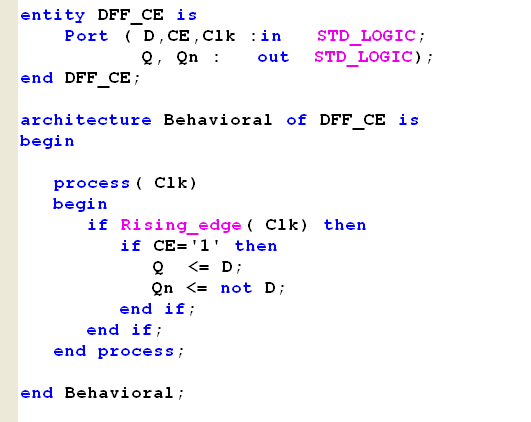

  •  D-F/F with Clock Enable

The Clock Enable necessary in order manage clock distribution in larger digital systems working with a synchronous Clk-pulses.

All F/Fs will receive the same Clk-pulse but its not all of them you might want to react on the Clk-pulse.

The most Common way to "Implement" a Clock Enable signal in D-F/F shown at the right.

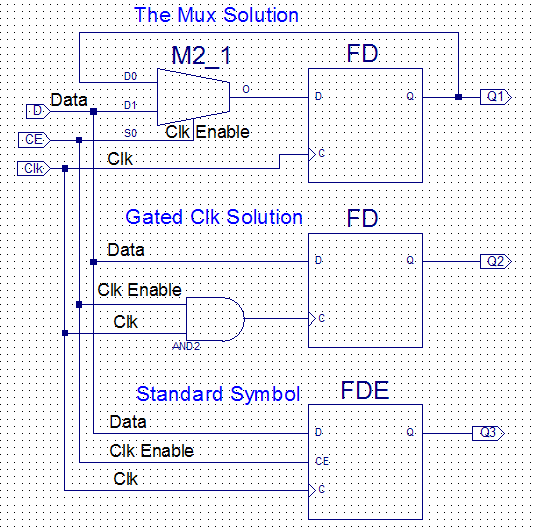

Alternative implementations of Clock-Enable are shown below.

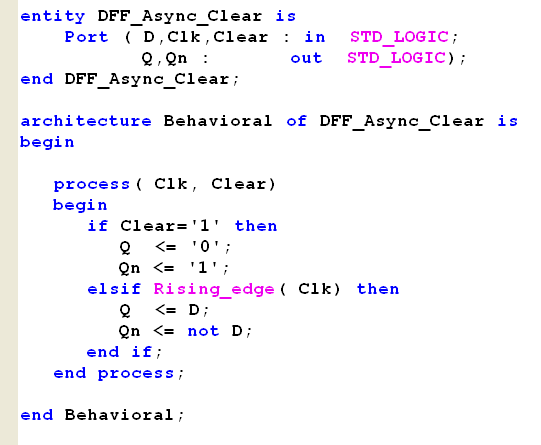

  •  D-F/F with Asynchronous Clear

The Asynchronous Clear signal, will set the Q output of a F/F to 0 (zero) without waiting for a Clock-pulse.

You must include the "Clear" signal sensitivity list of the process together with the "Clk" signal. Moreover must the "Clear" be given the highest priority in the if .. then .. elsif structure.

About names:  In many (most designs actually) will the name "Reset" be used for both Asynchronous and Synchronous control.

Moreover will you find some confusion about Clear and Reset in many textbooks.

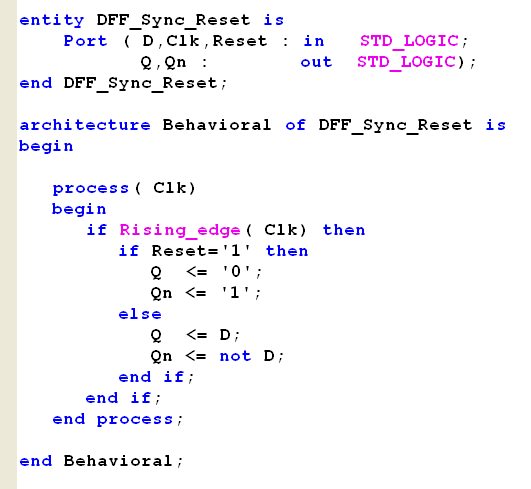

  •  D-F/F with Synchronous Reset

The Synchronous Reset signal, will set the Q output of a F/F to 0 (zero) at the next active Clock-pulse.

Since the "Reset" signal depends on the "Clk" signal, there is no need to include it in the sensitivity list of the F/F.

Will it be an error to include it anyway?

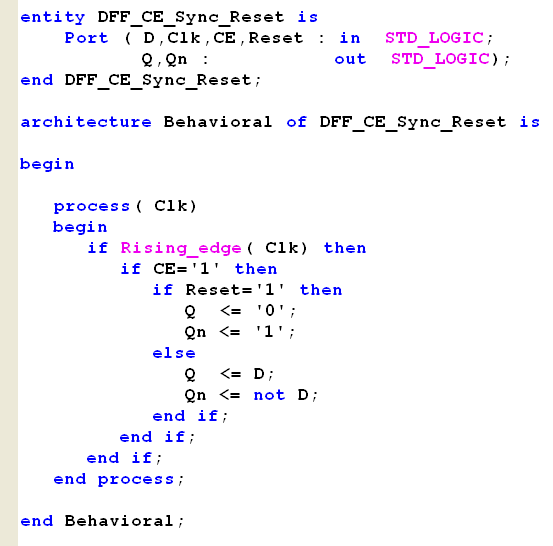

  •  D-F/F Clock Enable and Synchronous Reset

Can a Clock Enable signal controls a Synchronous Reset signal and will it be possible for a Synchronous Reset to overrule a Clock Enable?

How will combinations of Asynchronous Clear and Clock Enable works?

Some of these answers can be read in the datasheets of the symbol-library. But you will properly have to describe the functionality with a HDL code anyway.

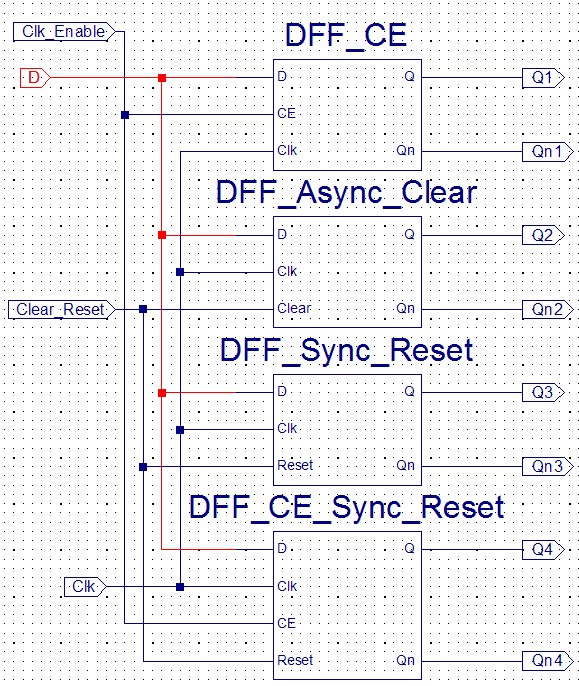

Simple circuits and tests an easy way to find out what's possible and how things works in practice.

Please note the "Preset" signal which shown in these examples. How will you implement this with HDL.

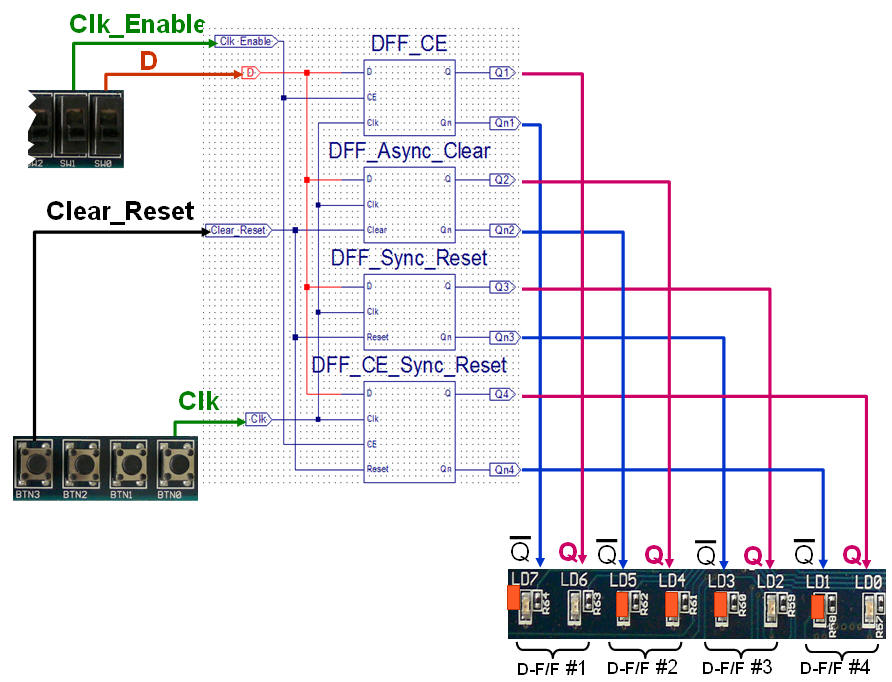

  •  Download the bit-file for testing here: For the BASYS kit use  Test_Dff_extra.bit or NEXYS_test_dff_extra.bit
      Try it yourself ... the functionality of the different implementations of Clock Enable and Clear / Reset.

  •  Will you be able to control the Reset of DFF_CE_Sync_Reset with the Clock Enable signal?
