Version 1 of the Dice
(Combinatorial logic only)
|
|
|
Last updated:
29-01-09 |
|
1a)

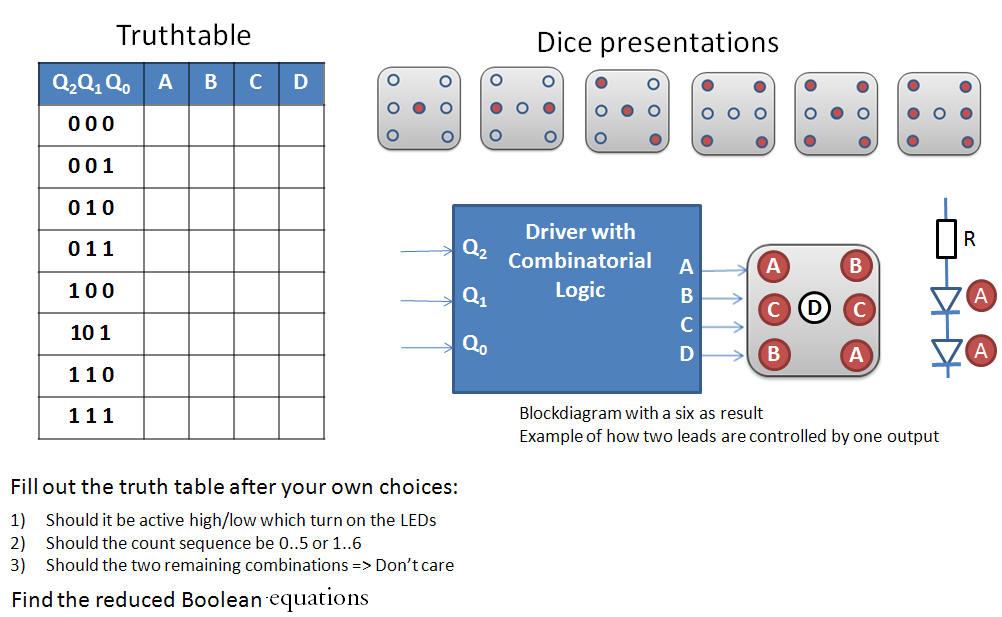

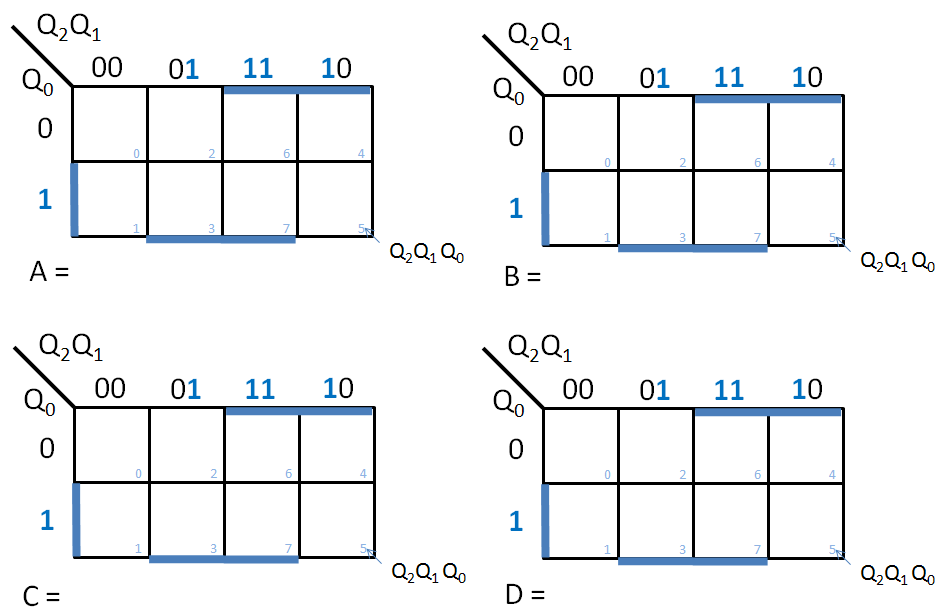

Fill out the truth-table and find the Boolean equations.
|
|
|
|
1b)

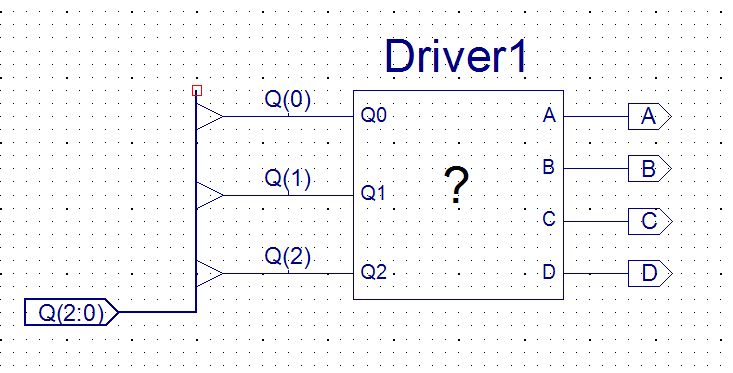

Draw a circuit (schematic named Driver1) implementing the
Boolean equations from 1a

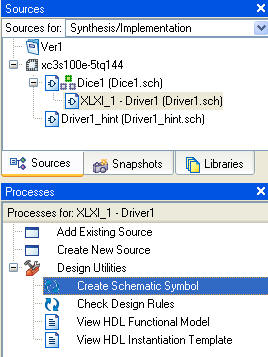

You can convert Driver1 into a new
component with the menu below.
|
|
|
![](index.2.jpg)
|
![](index.3.gif) |
|
|

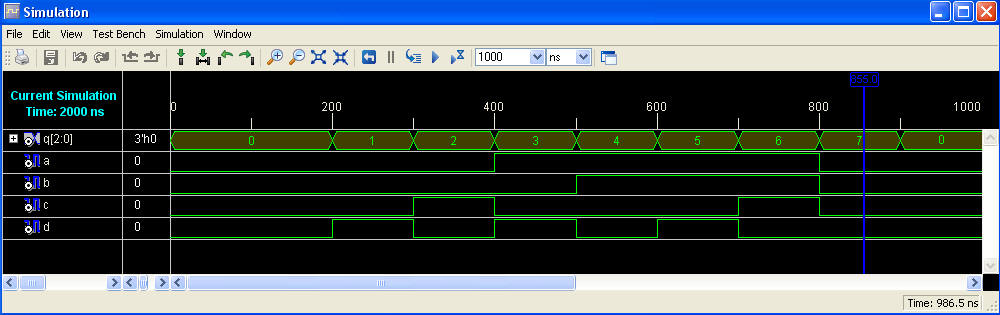

In order to verify
the design a simulation as well.
|
|
|
![](index.3.jpg)
|
|
|
|

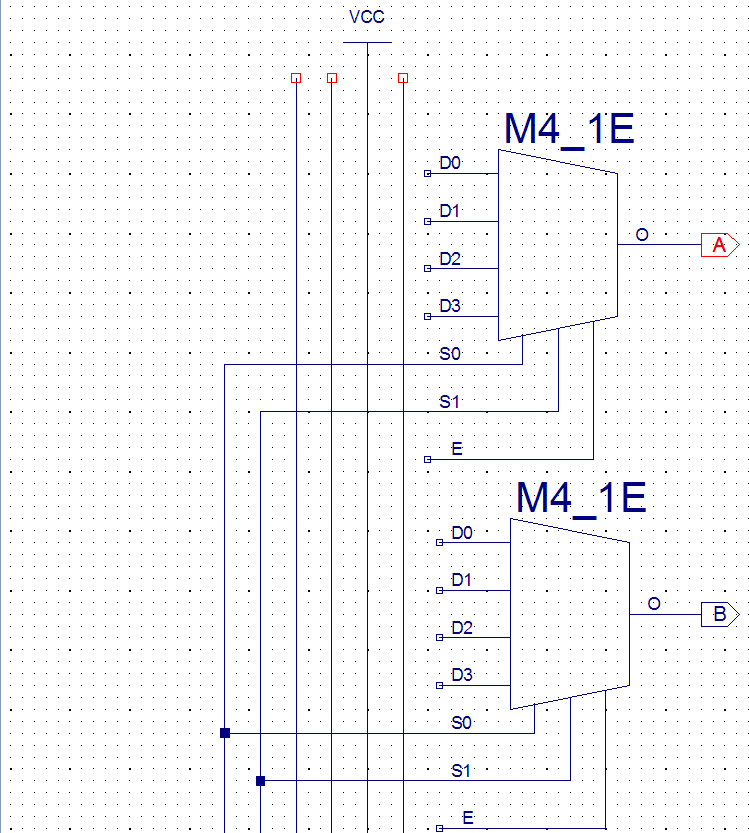

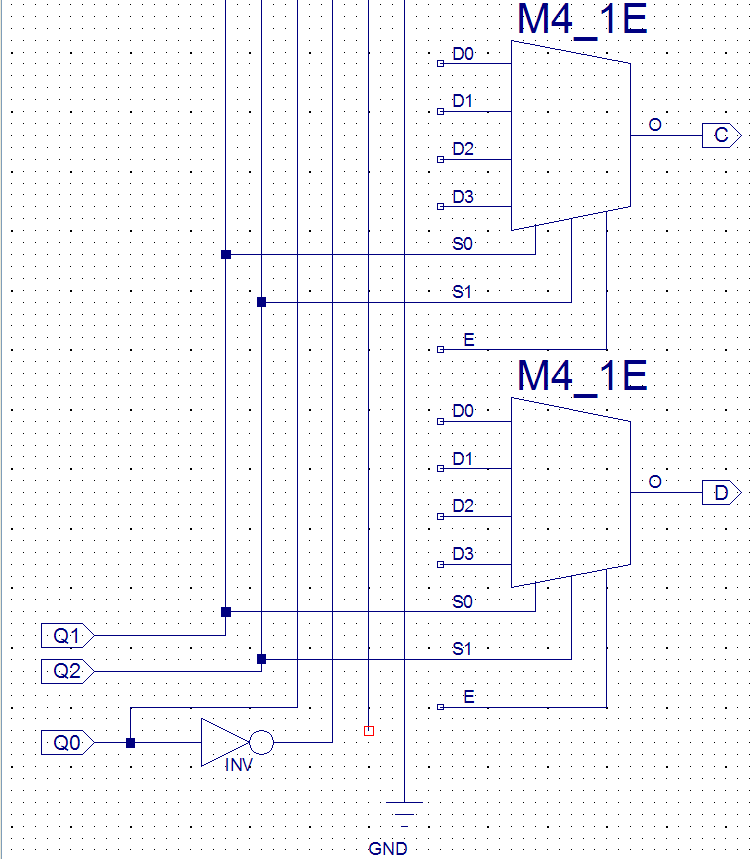

Hint: The
circuit below could be an alternative solution for Driver1 - use
it if you like.
|
|
