Multiplexed display ver. 3 - Complete driver in one VHDL module
Last updated: 26-02-09

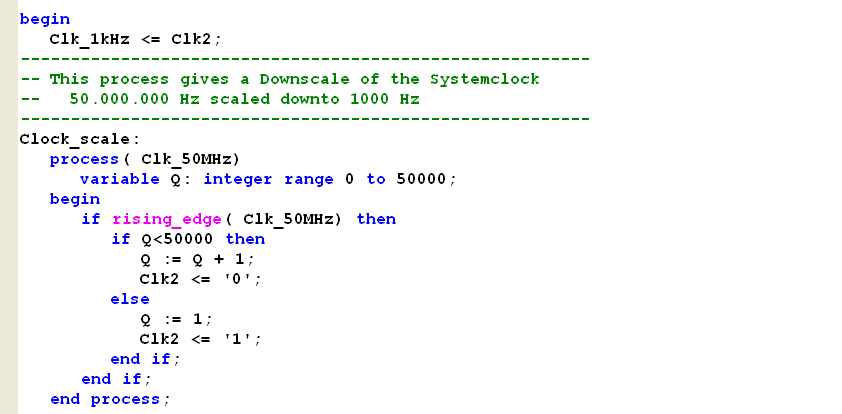

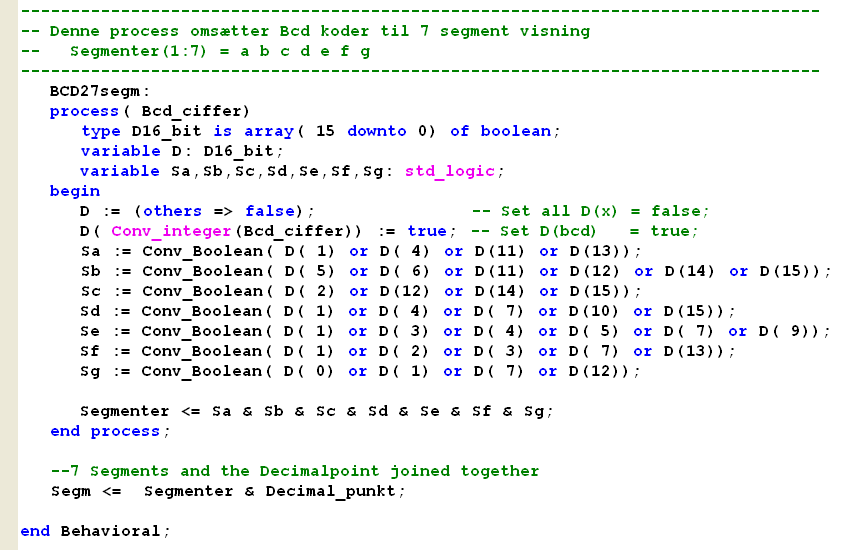

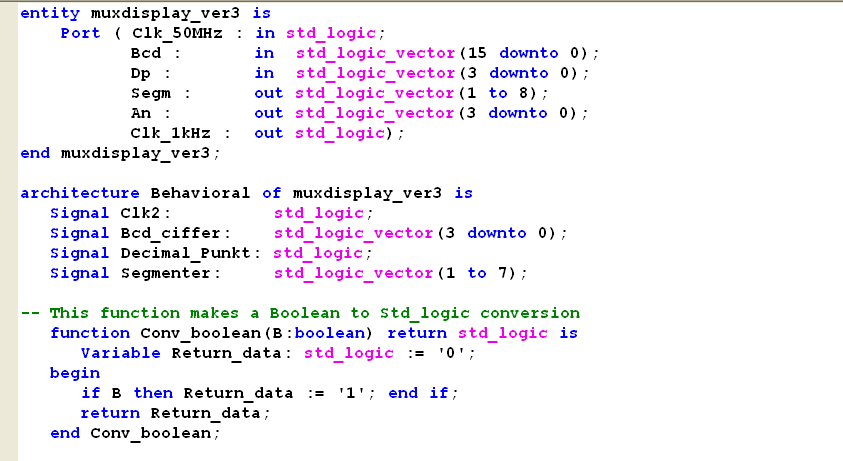

The VHDL source code can be found here: Muxdisplay_ver3.vhd
