How to add extra functionality
to the display
|
| |
|
Last updated:
01-03-09 |
|
|

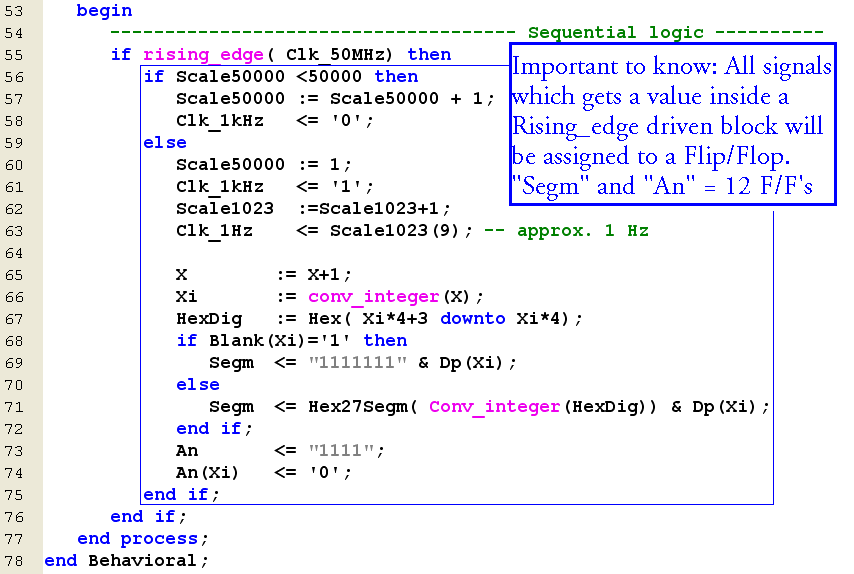

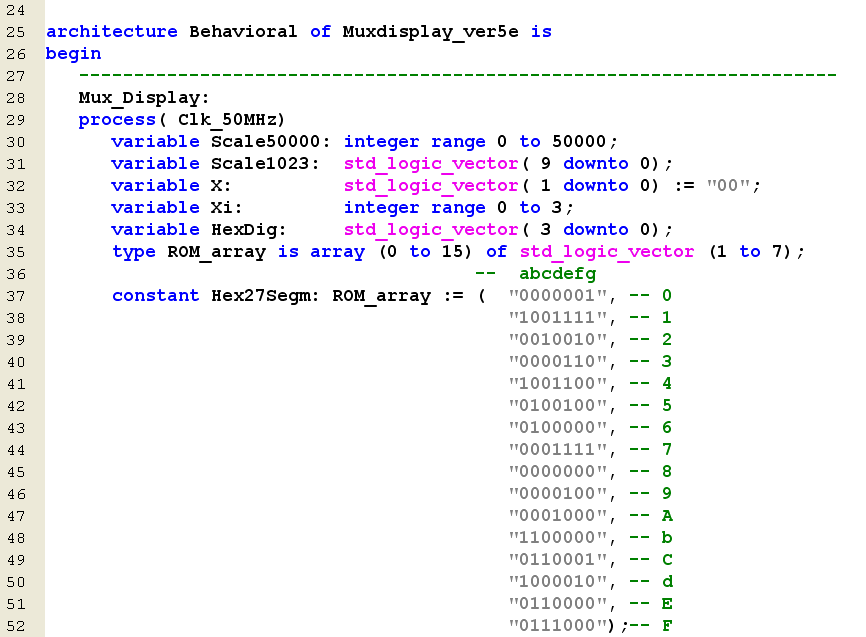

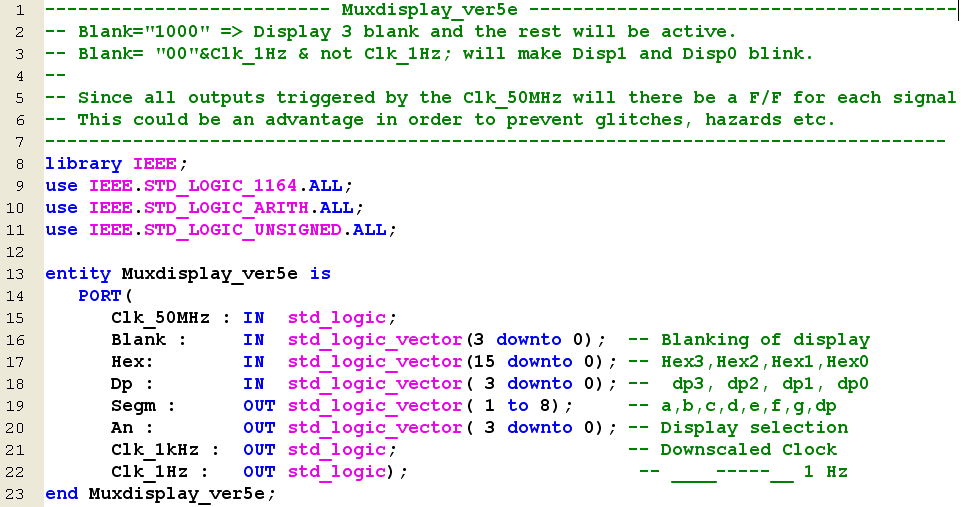

Muxdisplay
Version 5e - (With clocked outputs)
The RTL-schematic can be
seen below
|
|
|
|
|

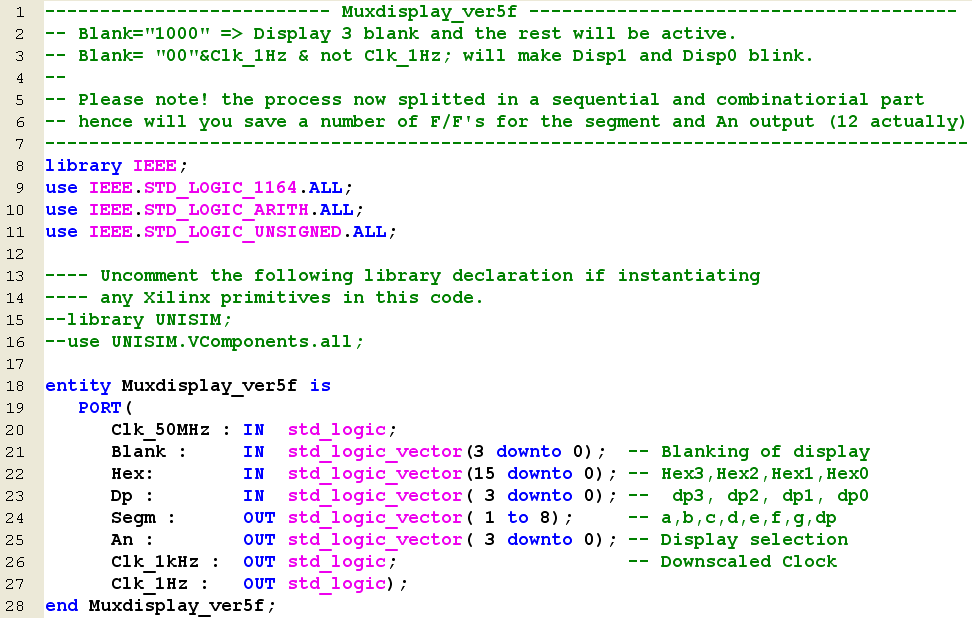

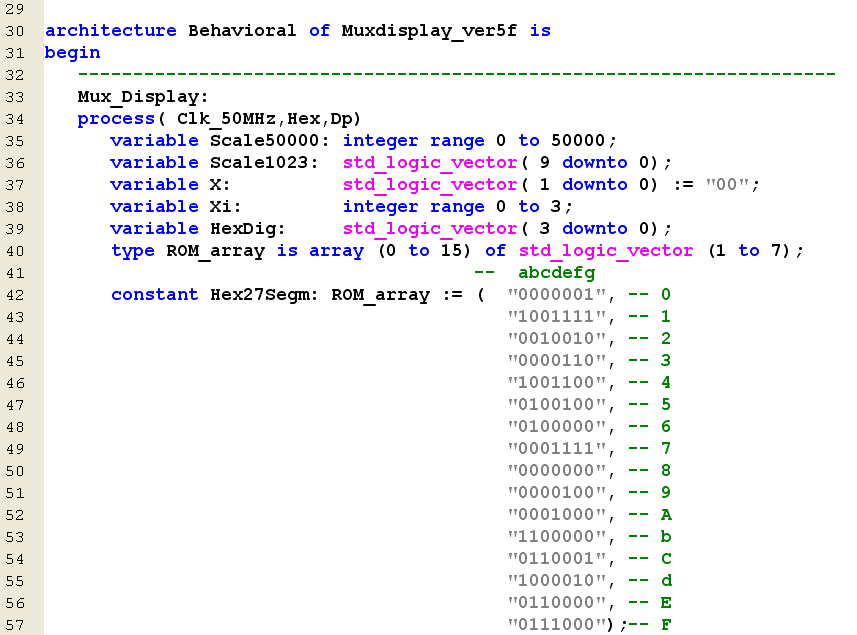

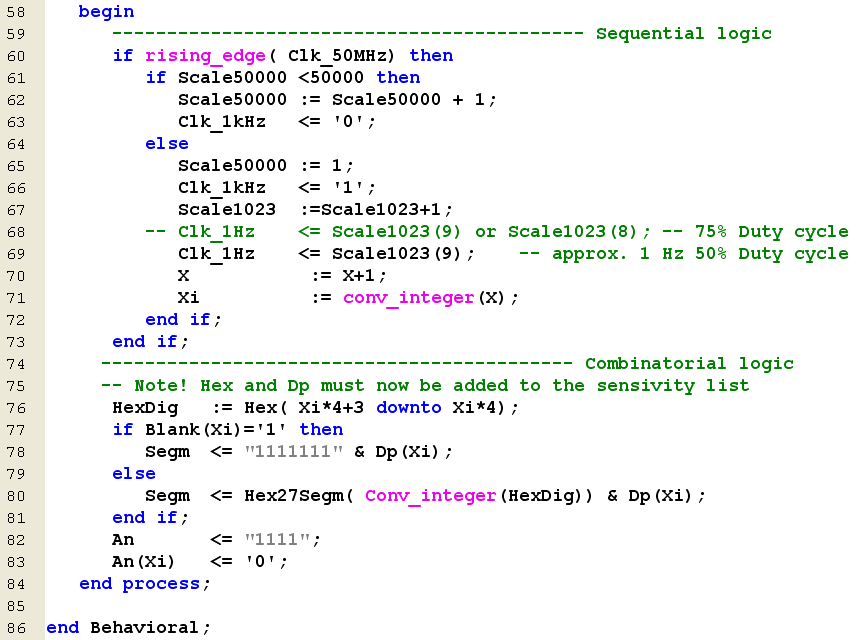

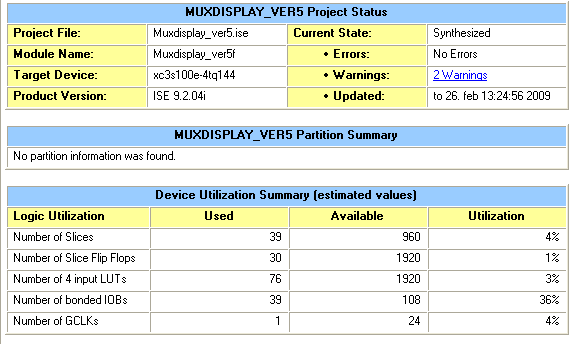

Muxdisplay
Version 5f - (how to save 12 F/F's)
The RTL-schematic
can be seen below
|
|
|
|
|

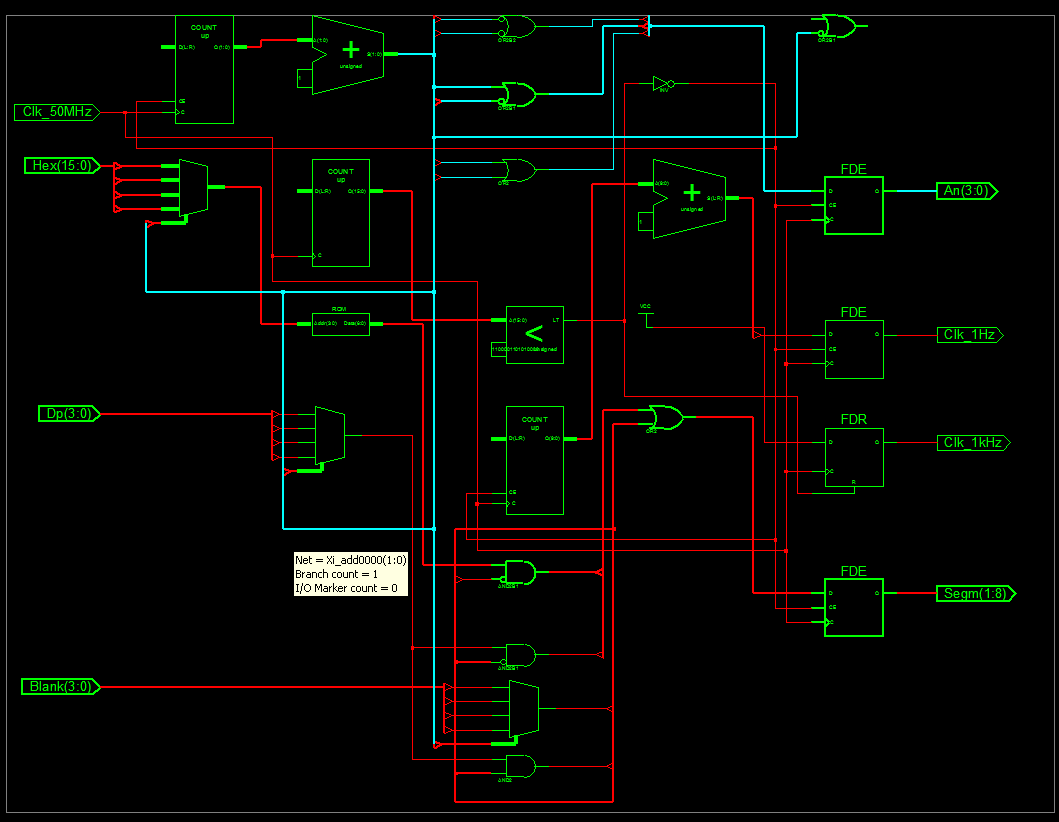

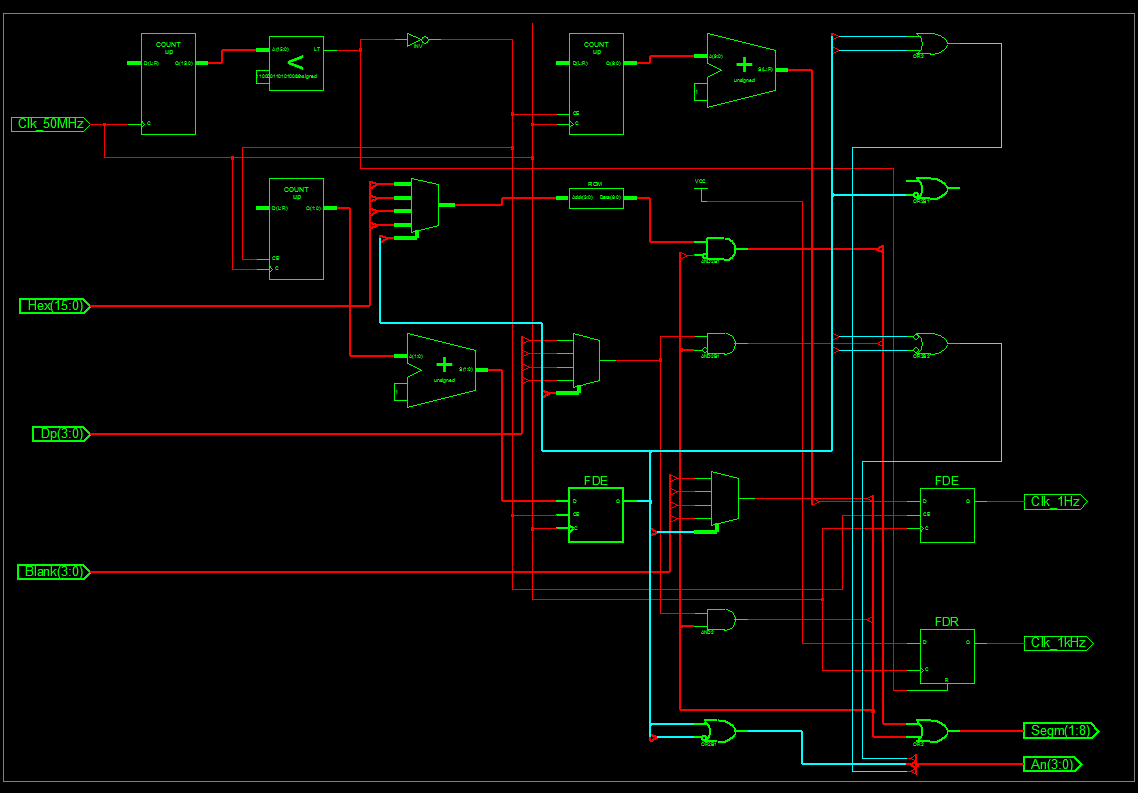

RTL-Schematic
of the Muxdisplay_ver5e - Clocked output for
Segm and
An
|
|
|
RTL-Schematic
of the Muxdisplay_ver5f - Combinatorial output for
Segm and
An
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
