The most simple SPI - Example

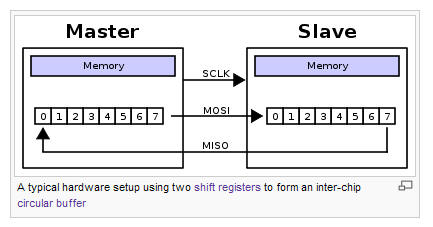

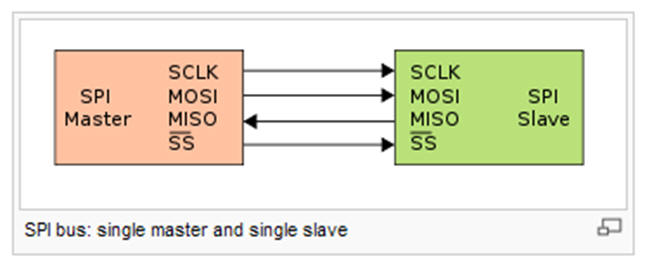

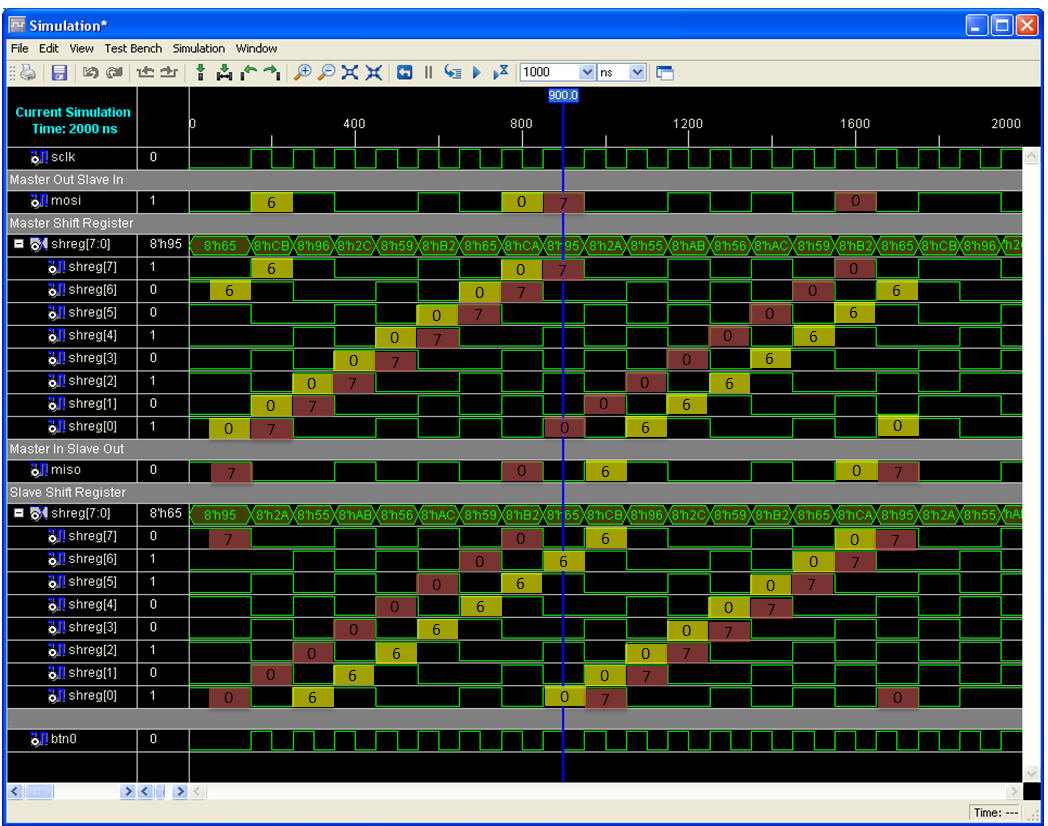

This example demonstrates the principle in SPI - Namely a Master and Slave which exchanges data via MISO and MOSI respectively. The simulation shows that the exchange actually happens as the two 8-bit shift-registers form a 16-bit ringbuffer.

In life-project will this design however seldom be useful :-)



Last updated: 03-03-09

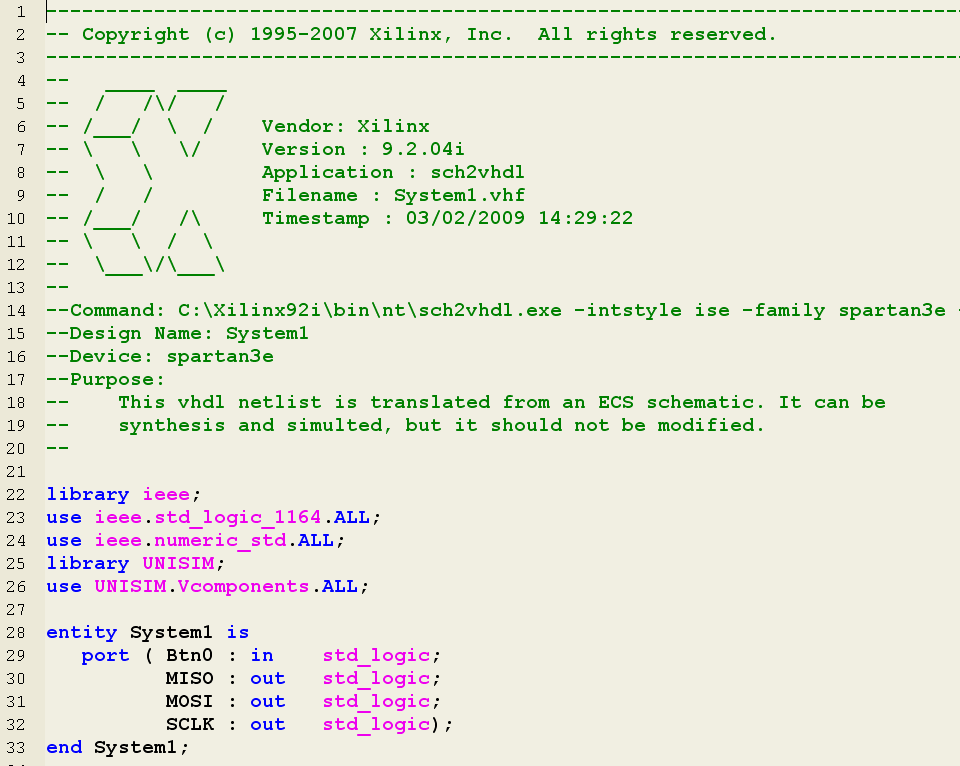

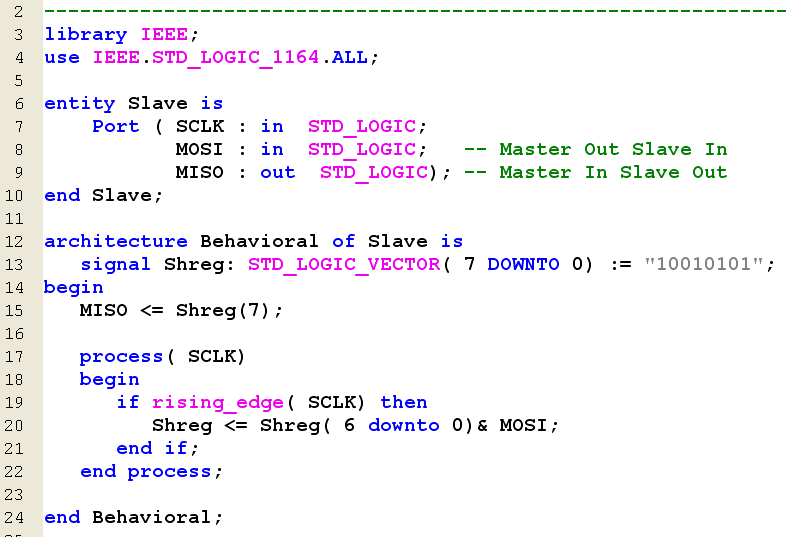

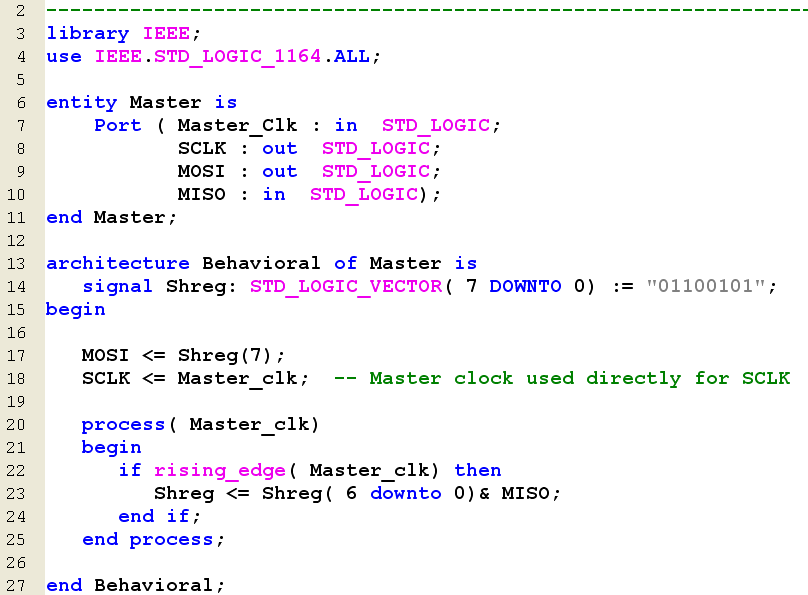

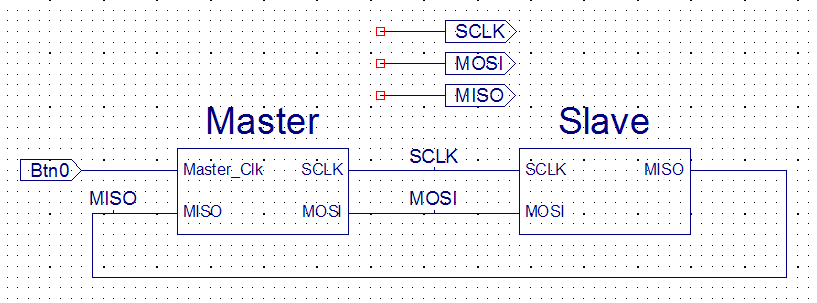

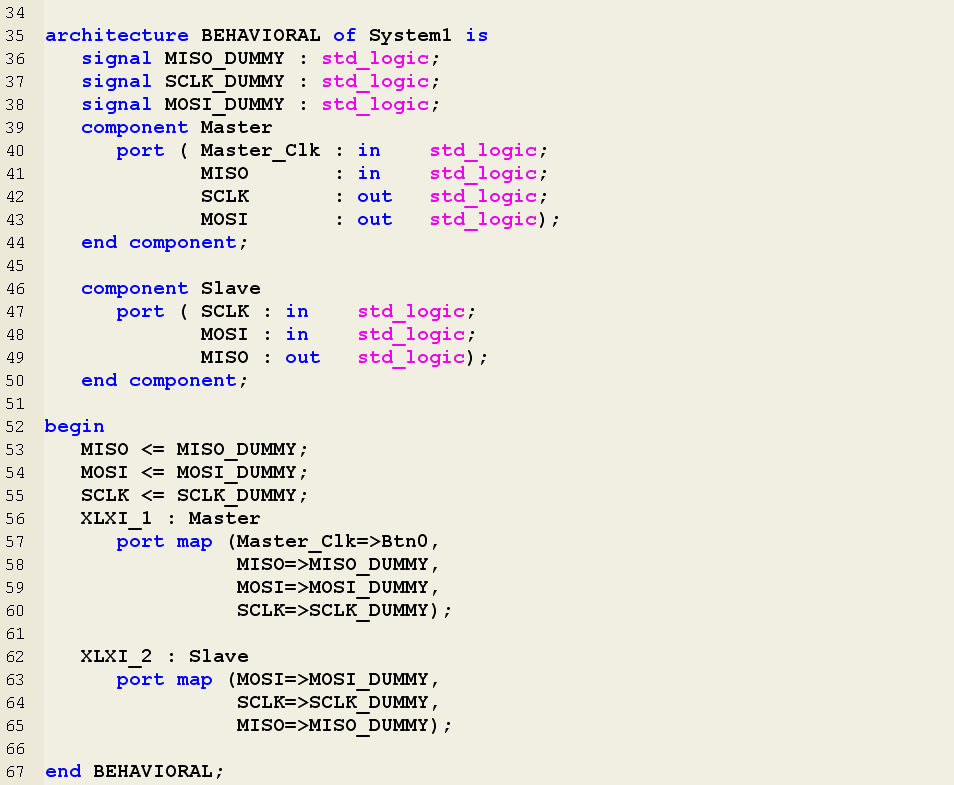

Source code here:  Master.vhd Slave.vhd - System1.sch
