Example of how a 8-bit wide 16-byte deep shift register can act as a LIFO stack. Please there's no detection of empty or full stack - and the solution surely not optimal from a resource point of view.

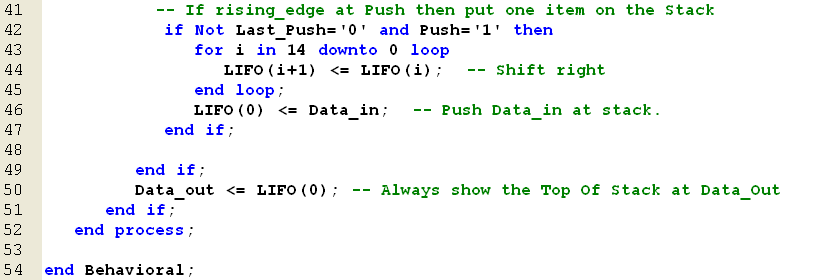

LIFO_Stack.vhd
